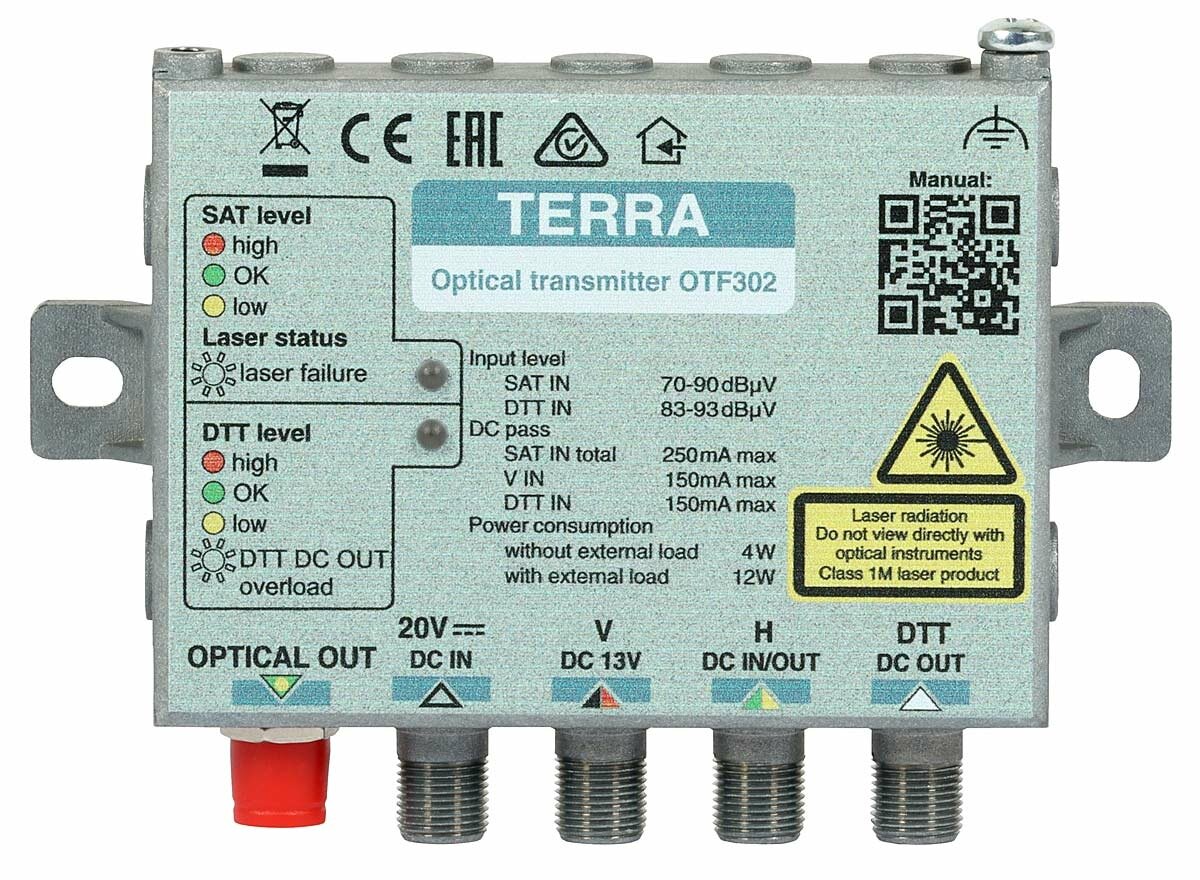

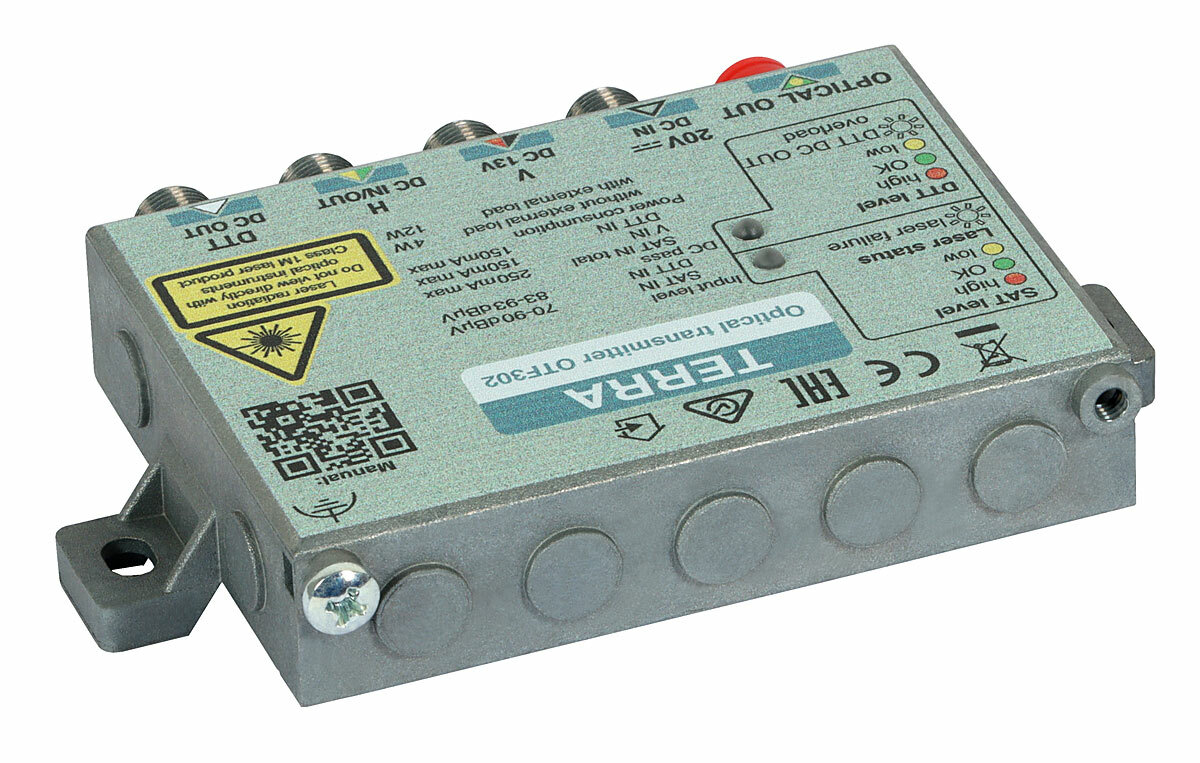

Terra OTF302 6F55 E Optical Transmitter | 1550 nm TV/SAT Distribution to Fibre.
The Terra OTF302 6F55 E optical transmitter is a high-performance solution designed for fiber optic TV/SAT signal distribution systems. It enables long-distance transmission of satellite (SAT), terrestrial DVB-T2, and FM/DAB+ radio signals over a single fiber at a 1550 nm wavelength. This system is ideal for modern multiswitch, dSCR/Unicable, and hybrid installations.

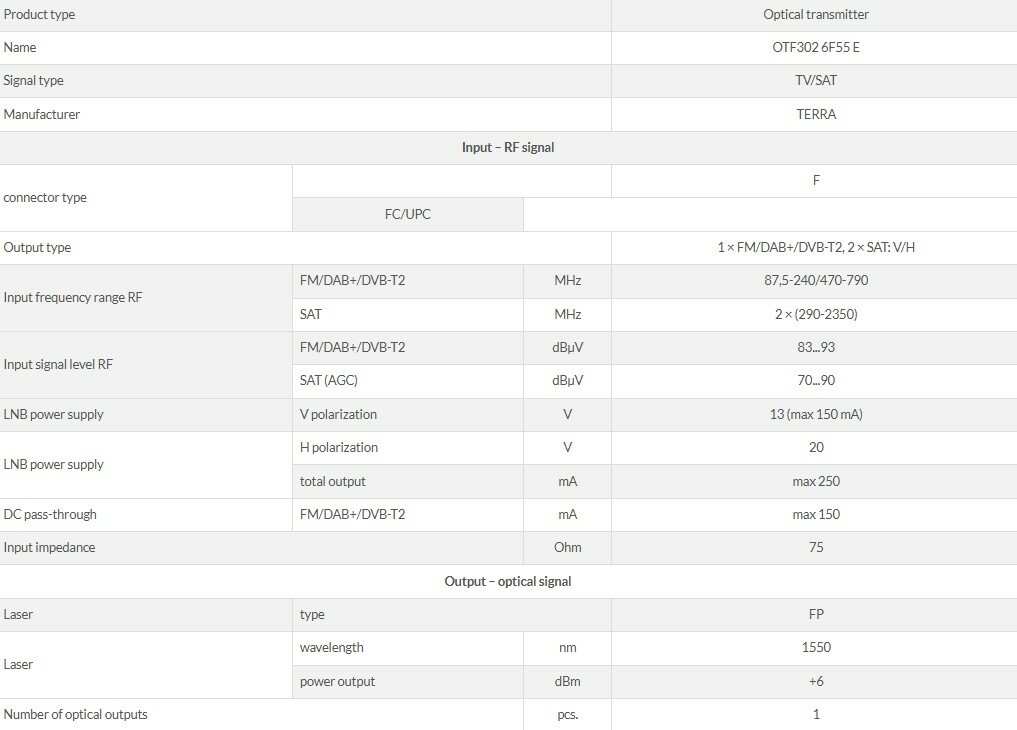

Key Features:
- FP-type Laser – ensures precise signal transmission
- Wavelength: 1550 nm (Transmission window III)
- Optical Output Power: +6 dBm
- Long-Distance Distribution: Supports up to 32 receiving points within a 10 km radius
- Automatic Gain Control (AGC): Maintains stable signal levels under changing atmospheric conditions
- High Shielding (Class A): Cast housing prevents interference
- Diagnostic LEDs: Simplifies installation, connection verification, and system diagnostics
- Compact Design: Easily fits into TV cabinets alongside other distribution equipment
- Power Supply: DC 20 V / 150 mA (recommended power supply: R71468)
Advanced Optical TV Distribution
The OTF302 6F55 E transmitter efficiently combines satellite, terrestrial TV, and radio signals for fiber optic transmission with low attenuation and minimal interference. It allows flexible, large-scale TV signal distribution to multiple buildings or rooms using a single-mode fiber optic cable.
System Compatibility:
Compatible with the following TERRA optical receivers:
- ORF202 E – Wideband output (A3131)
- ORQ302 E – QUATRO + DVB-T2 outputs (A3133)
- ORF302 E – Wideband + DVB-T2 outputs (A3135)
- ORQ302F E – QUATRO + Wideband + DVB-T2 outputs (A3137)
Application Scenarios:
- Single fiber distribution of DVB-T/T2 and SAT signals from two satellites
- Hotel TV systems, large residential complexes, campus TV installations
- Integration with dSCR/Unicable multiswitches and hybrid TV/SAT systems
Recommended Components:
- Wideband LNB A98222 – For satellite-only installations
- LWB202L A98210 LNB + DTT MCA101T TERRA R82101 mast amplifier – For combined satellite and DVB-T2 systems
- EQF Equalizers (R50204, R50208, R50212) – For cable runs longer than 10 meters
Summary:
The Terra OTF302 6F55 E optical transmitter offers high-quality, long-range fiber optic TV signal distribution. Its compact design, automatic gain control, and flexible system integration make it a perfect choice for professional SAT and DVB-T2 installations requiring reliable performance and easy maintenance.
