Terra ORF202 E Optical Receiver | Wideband SAT Signal Converter

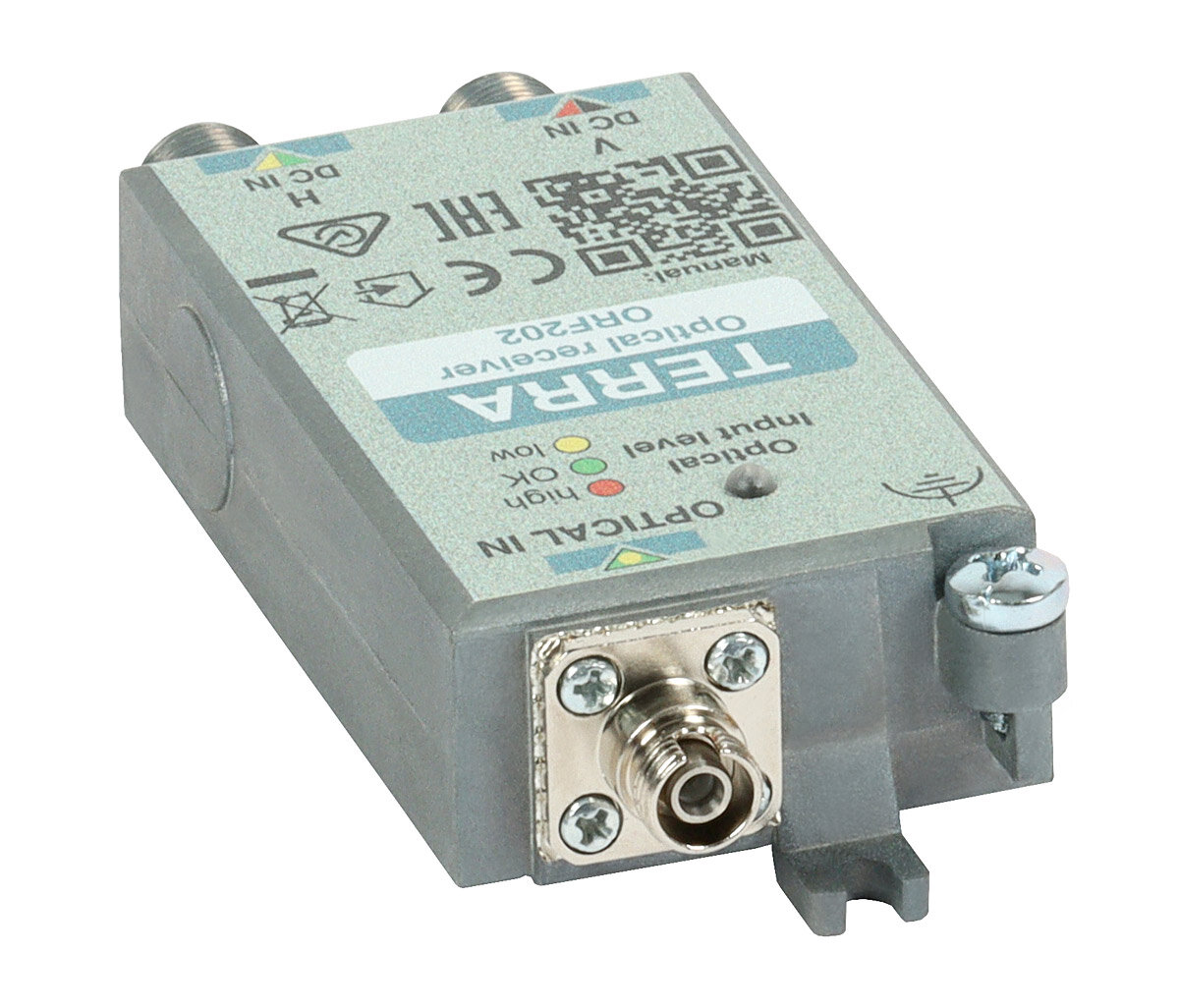

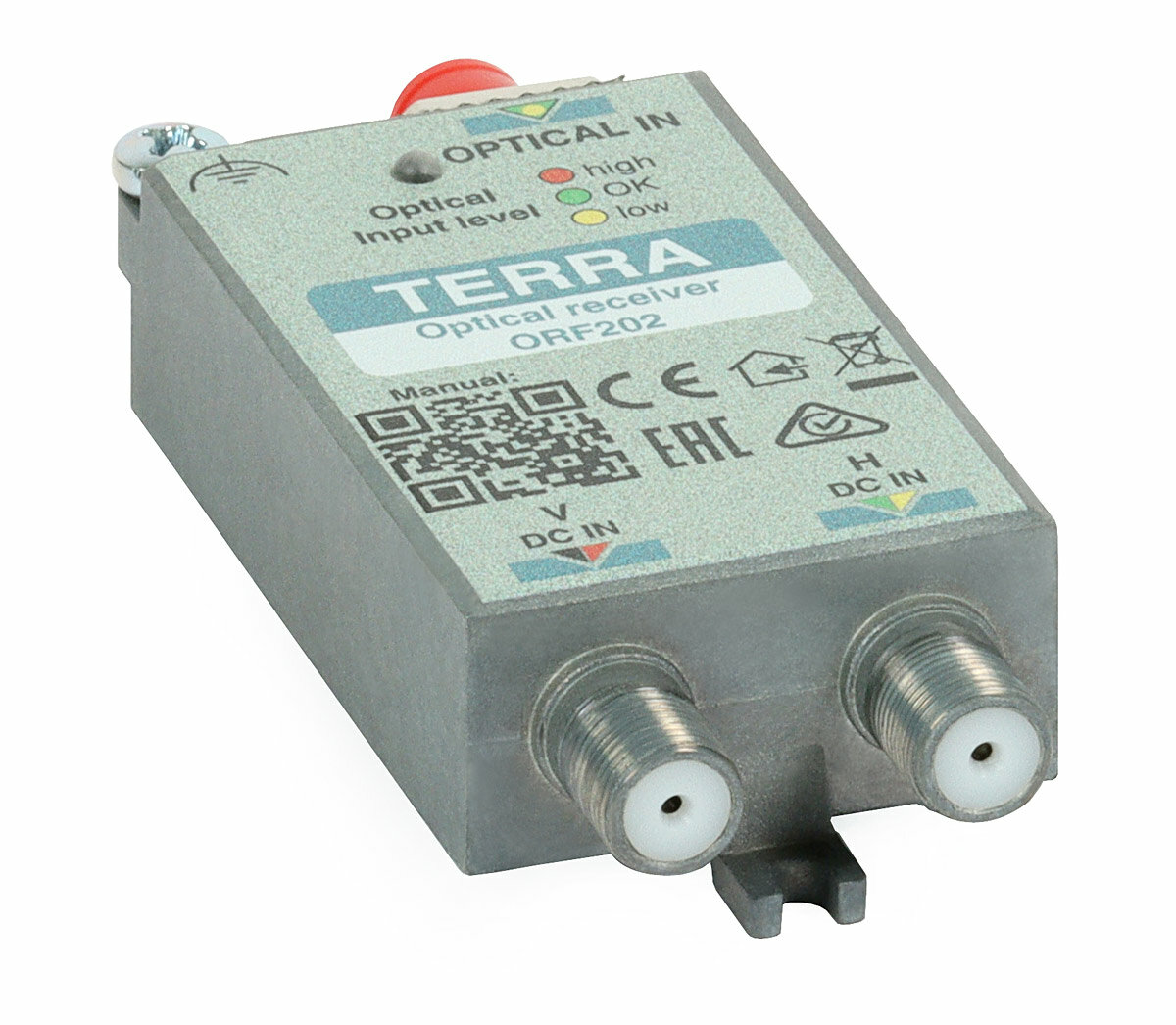

The Terra ORF202 E optical receiver is a high-performance device designed to convert optical signals from fiber optic transmitters back into standard electrical SAT IF signals. It is the ideal solution for modern fiber optic TV/SAT distribution systems, ensuring stable and interference-free signal transmission across large buildings, multi-dwelling units, and commercial installations.

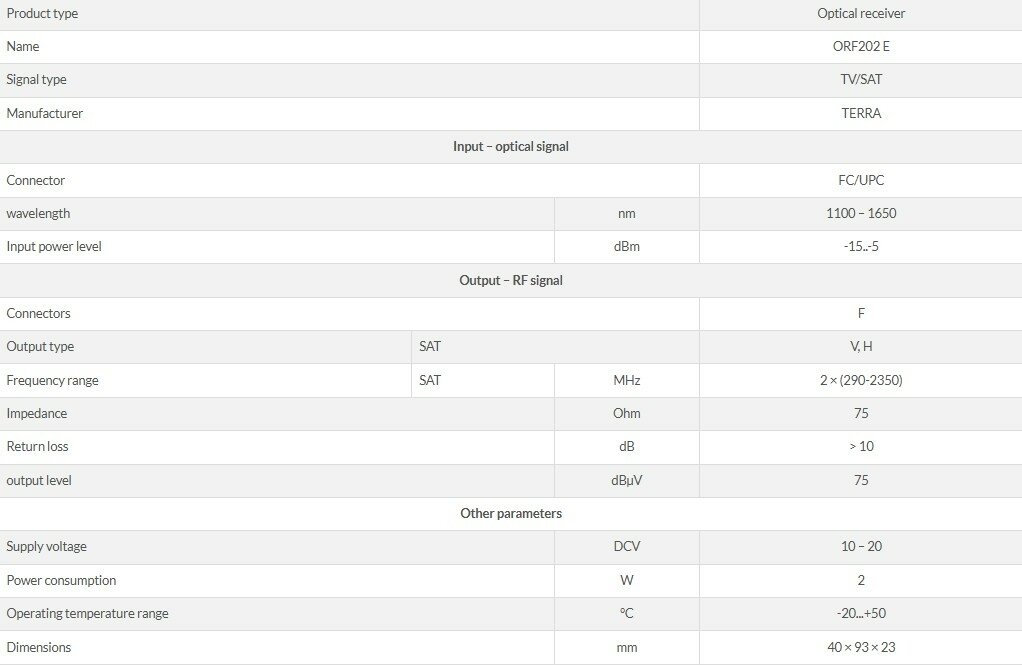

Key Features:
- Compatible with OTF302 6F31 E (1310 nm) and OTF302 6F55 E (1550 nm) optical transmitters
- Wide wavelength support: 1100...1650 nm
- Input power range: -15 to -5 dBm
- Wideband outputs for vertical (V) and horizontal (H) polarizations
- High-quality shielding (Class A) for maximum signal protection
- OLC (Optical Level Control) for automatic signal level stabilization
- LED status indicators for quick and easy system diagnostics
- Compact design for convenient installation in TV cabinets
- DC power supply: Powered by the connected multiswitch or an external 10–20 V DC adapter (not included)
Advanced Fiber SAT/TV Signal Conversion

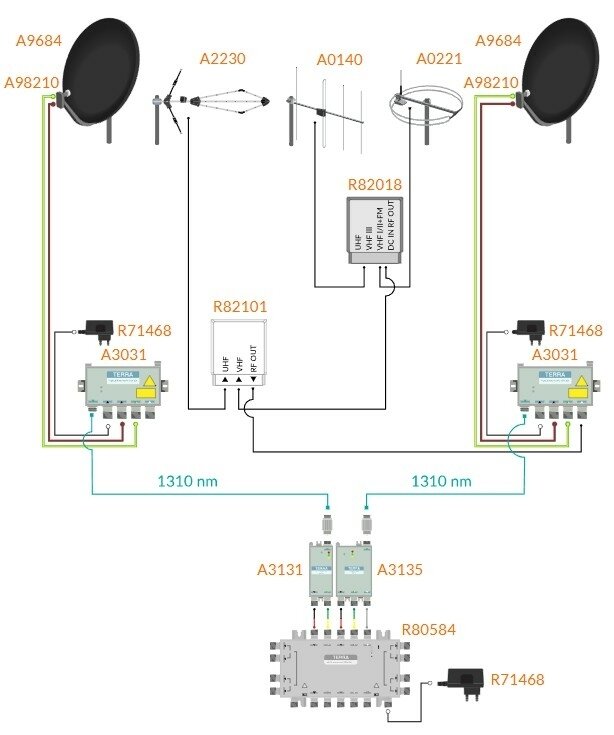

The ORF202 E optical receiver efficiently converts the incoming optical signal from the OTF302 6F31 E or OTF302 6F55 E transmitter into an electrical RF signal compatible with standard TV/SAT distribution systems. The device outputs two wideband signals (V and H polarizations) that can be fed directly into dSCR/Unicable multiswitches for further distribution via coaxial cables to subscriber outlets.
System Flexibility
The ORF202 E supports:
- Passive optical fiber networks
- Simple and complex multiswitch systems
- Hybrid installations combining fiber and coaxial cabling
This flexibility makes it ideal for hotels, multi-apartment buildings, and large TV distribution networks where long-distance transmission and minimal signal loss are critical.
Easy Setup and Diagnostics
The device features:
-
Integrated LEDs on the housing to assist with installation and system configuration
-
Automatic gain control (OLC) that compensates for variations in signal levels
The compact cast housing ensures class A shielding, protecting the signal from external interference.
Compatible Optical Transmitters:
-
OTF302 6F31 E (1310 nm) – A3031
-
OTF302 6F55 E (1550 nm) – A3055
Summary:
The Terra ORF202 E optical receiver is a reliable solution for high-quality SAT/TV signal distribution over fiber optic infrastructure. Its wide compatibility, automatic signal control, and simple installation make it an excellent choice for professional headend systems, hotel TV networks, and complex multiswitch installations.
Shipping worldwide from EU stock, DVBMarket Terra distributor.
