Terra ORF302 E Optical Receiver | Wideband + DVB-T2 Signal Conversion

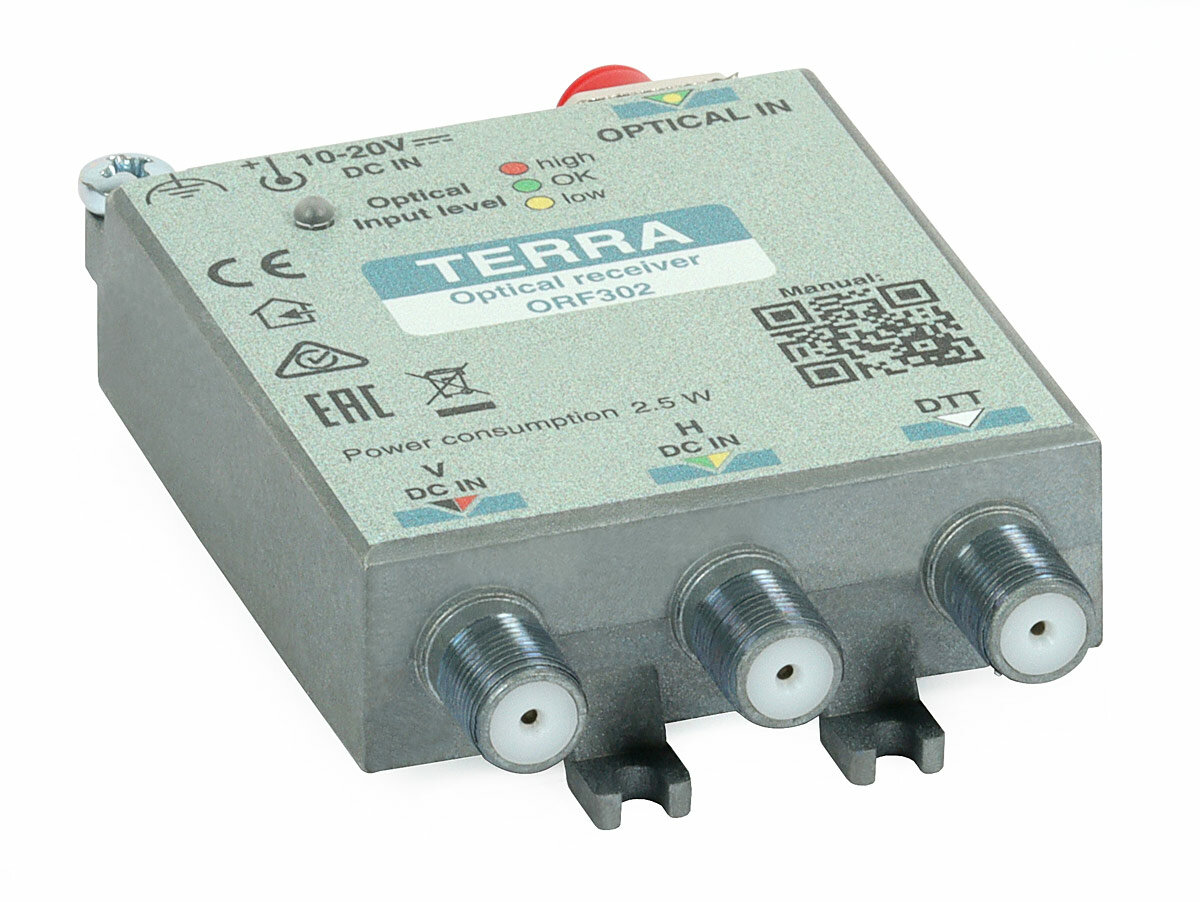

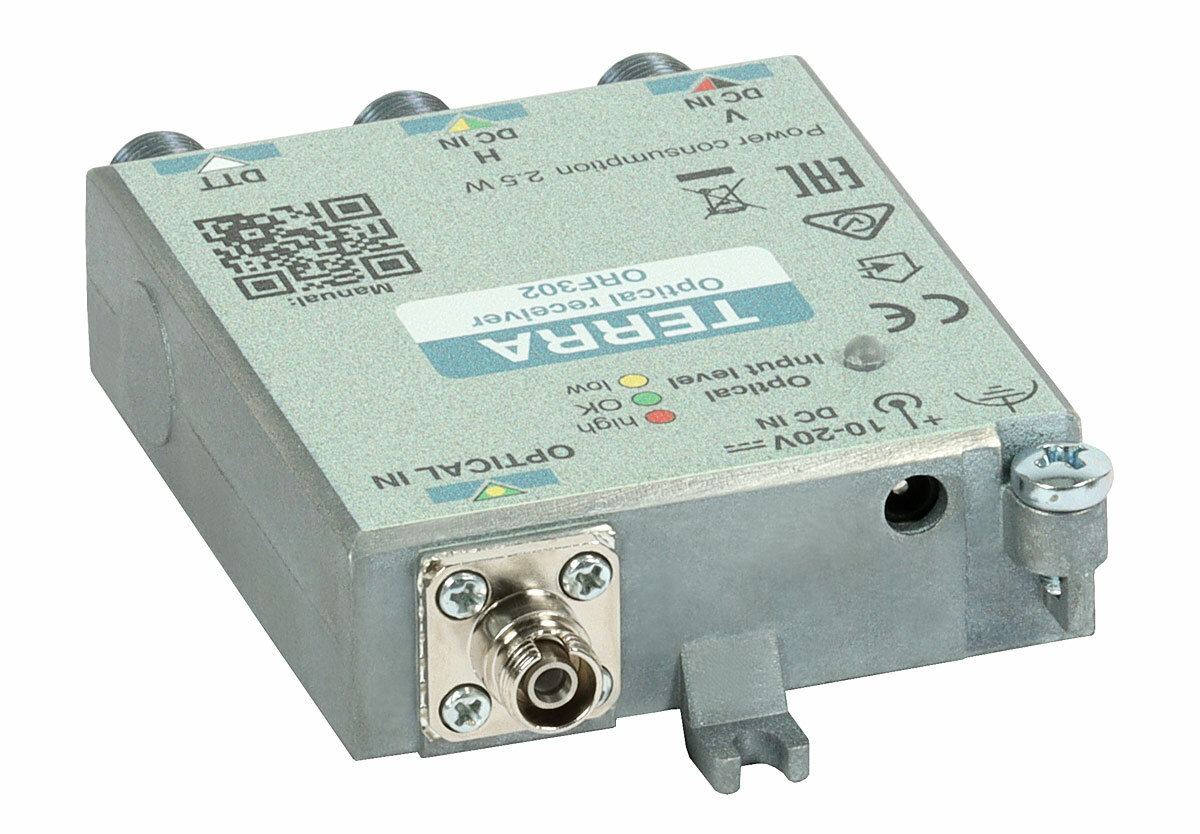

The Terra ORF302 E optical receiver is a reliable device that converts fiber optic signals from the OTF302 6F31 E or OTF302 6F55 E optical transmitters into electrical SAT IF and terrestrial signals. The receiver provides Wideband + DVB-T2 outputs, making it ideal for modern TV/SAT distribution systems using fiber optic infrastructure.
Key Features:
- Wavelength Range: 1100…1650 nm
- Optical Input Power: -15 to -5 dBm
- 3 Outputs: Vertical (V) + Horizontal (H) Wideband signals and DVB-T2/FM/DAB signal
- Cast Housing: Class A shielding for excellent protection against interference
- OLC (Optical Level Control): Automatic signal level stabilization
- Diagnostic LEDs: For quick and easy system configuration
- Power Supply: Directly from connected multiswitch or optional external DC 10–20 V power adapter
Advanced Fiber SAT and DVB-T2 Signal Distribution
The ORF302 E receiver enables conversion of fiber optic signals into standard RF signals for easy integration with dSCR/Unicable multiswitches and coaxial-based distribution networks. The device splits the received signal into two SAT polarizations (V/H) and one DVB-T2/FM/DAB signal, ready for distribution to multiple subscriber outlets.
System Compatibility and Flexibility
The ORF302 E is fully compatible with:
-
OTF302 6F31 E Optical Transmitter (1310 nm – A3031)
-
OTF302 6F55 E Optical Transmitter (1550 nm – A3055)

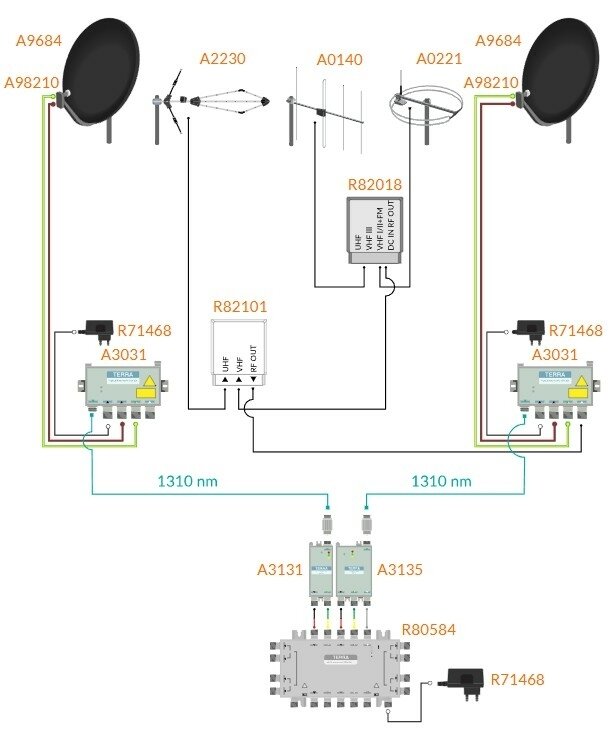

This flexibility allows the device to be seamlessly integrated into hybrid fiber-coaxial systems, hotel TV networks, and large residential installations where long-distance signal transmission and minimal interference are required.
Easy Setup and Reliable Performance
Thanks to:
- LED indicators on the housing for system status
- Automatic gain control (OLC) for stable output levels
- High-quality shielding (Class A) to protect signal integrity
The ORF302 E ensures stable, interference-free signal delivery and fast installation.
Compact and Efficient Design
The compact size of the receiver makes it easy to install in TV cabinets alongside other distribution system components. It can be powered by the connected multiswitch or via an optional external power supply.
Summary:
The Terra ORF302 E optical receiver is the perfect solution for fiber optic SAT and DVB-T2 signal distribution. It supports Wideband LNB and terrestrial TV signals over a single fiber, offering flexibility for both traditional and hybrid TV systems.
