AB CryptoBox 650HD

Brand: ABC

Choose packing size : CHOOSE BIGGER PACK SIZE TO GET THE LOWEST PRICE
Price per unit:
Total price:
Price is excluding VAT !
€ 50,00

AB CryptoBox 650HD

Technical specification

PRODUCTION FINISHED, NEW MODEL AB Cryptobox 750HD , CI Slot


New Dual Core CPU 2 x 600 MHz

  • New genetration High speed memory DDRIII
  • IPTV – stream internet TV broadcast

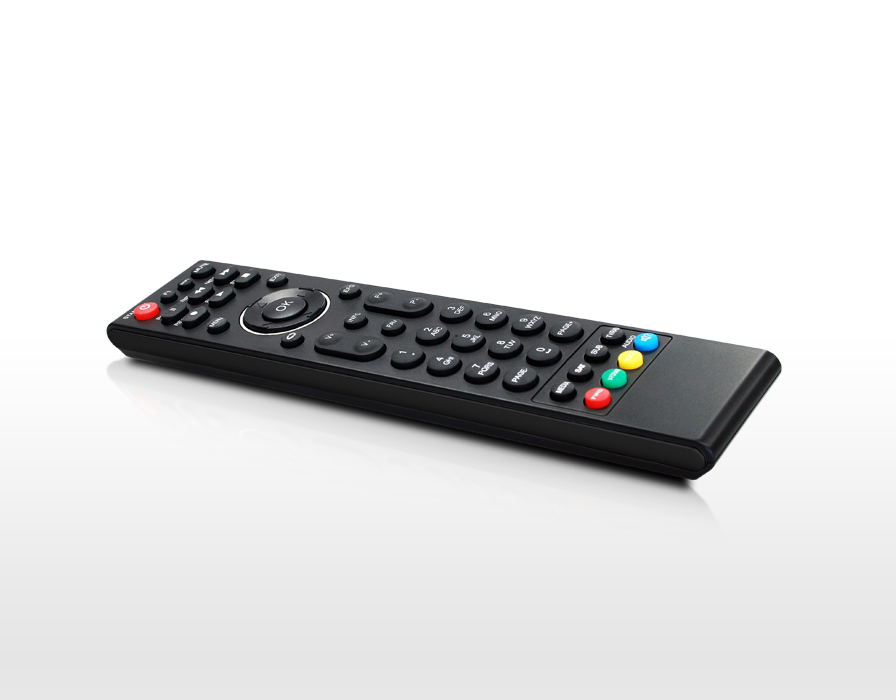

  • Android App. for remote control box, adding and changing timer and streaming TV broadcast to your phone or tablet
  • FullHD resolution 1080p
  • 1x DVB-S / DVB-S2 tuner
  • 1x Common Interface
  • 1x Card Reader
  • 1x HDMI port
  • 1x SCART
  • 1x RS232
  • 2x USB 2.0 ( 1x Front, 1x Rear panel )
  • 1x LAN RJ 45
  • 1x S/PDIF optical digital audio output
  • Chipset: ALI3516
  • Flash Memory: 8 MByte
  • DDRII Memory: 128 Mbyte
  • Signal Level -65 do -25 dBm
  • LNB power and polarization
  • Vertical: +13V/+14V,
  • Horizontal: +18V/+19V
  • Power max. 25W
  • Frequency range 950 MHz do 2150 MHz
  • Video resolution 1080i/p, 720p, 576i/p, 480i/p
  • DiseqC 1.0/1.1/1.2/1.3 USALS 13V/18V, 0/22K
  • VFD Display
  • 7-day electronic guide
  • Fast Scan
  • Time Shift recording and PVR function
  • PIG ( Picture in Graphic )
  • FTP manager, games, weather, stock market information, networking capability and many more…
  • Automatic PAL / NTSC conversion
  • 6000 TV / Radio Stations
  • 26 the favorite groups
  • Support FAT32 and NTFS
  • media player formats:
  • audio MP3, OGG, FLAC
  • video AVI, MKV,TS, TP, TRP, MPG, MP4
  • picture JPEG, BMP, GIF


General

  • Input Frequency    950 ~ 2150MHz
  • Input Level    -65 ~ -25dBm
  • Input Impedance    75Ω
  • LNB Polarisation    13V/18V/OFF, Imax = 400mA
  • LNB Switching    22KHz DiSEq C 1.0/1.2
  • Demodulation    QPSK ,8PSK
  • Reed-Solomon    204, 188, t = 8
  • Roll Off Factor    0.35,0.25
  • FEC    1/2, 2/3, 3/4, 5/6, 7/8, Automatic
  • Symbol Rate    2.0~45 MS/s
  • DVB Standard    DVB-S/S2 (EN300 421)

Video

  • Standard    ISO/IEC 13818-2 (MPEG1,MPEG-2 MP@ML,H.264, VC1, DV, DivX, and MPEG4)
  • Aspect Ratio    4:3, 16:9
  • Video Full Resolution    1920 × 1080p and 1920 × 1080i and 1280 × 720p for HD video, 720 × 480p, 720 × 480i, 720 × 576i, and 720 × 576p for SD video, dual MPEG-1, MPEG-2 and MPEG-4 decode for SD resolution,MPEG4 AVC / H.264 and VC1 decode for dual SD and single HD up to 720p and 1080i and 1080p
  • Video Format    PAL, NTSC
  • Video RAM    128 Mbytes
  • HDMI output    480p&480i,576p & 576i, 720p&1080i50Hz,1080P50Hz
  • Host Supplied Audio/Video    I & P frame support
  • Format conversion    Pan & Scan, Letterbox
  • Video planes    2 panes (1 graphic planes, 1 display planes)

Audio

  • Standard    ISO/IEC 13818-3 (Decoding: MPEG-2 layer I and II (Musiccam),MPEG4 AAC and MPEG4 AAC-HE (AAC+), Dolby Digital (AC-3) with bit rates up to 640 Kbits/s,LPCM up to 48 KHz,MP3)
  • Sampling Frequency    32, 44.1, 48KHz
  • Audio Output Impedance    Low
  • Output Mode    Mono, Dual-channel, Stereo, Left, and Right
  • Processor
  • Chipset    ALI35016
  • Flash Memory    8 MByte
  • DDRII Memory    128 Mbyte 800Mhz

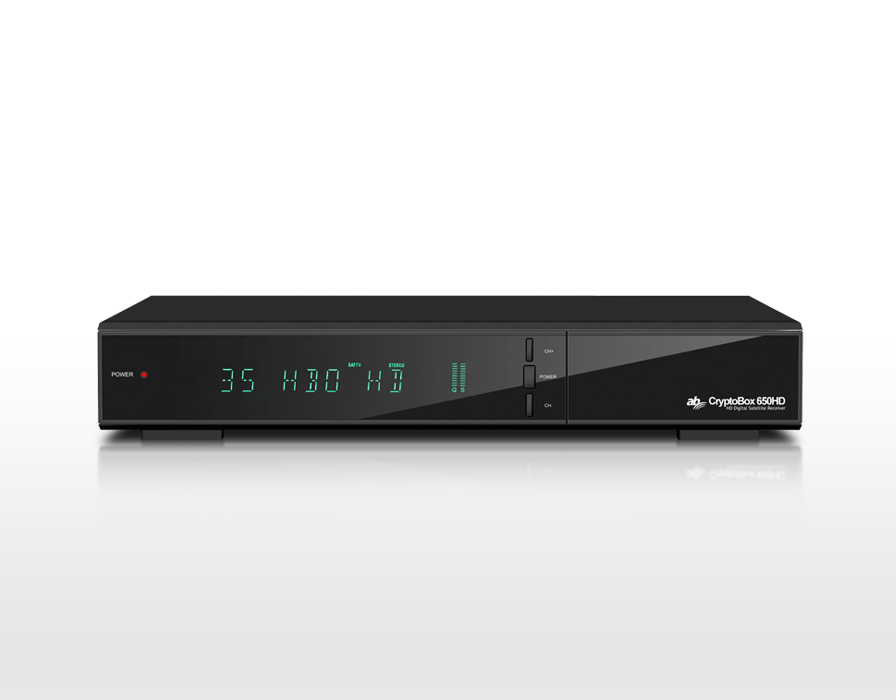

Front Panel

  • IR Receiver    38KHz
  • Display    VFD-segment
  • USB port    1 x
  • CA slot    1 x
  • CI slot    1 x

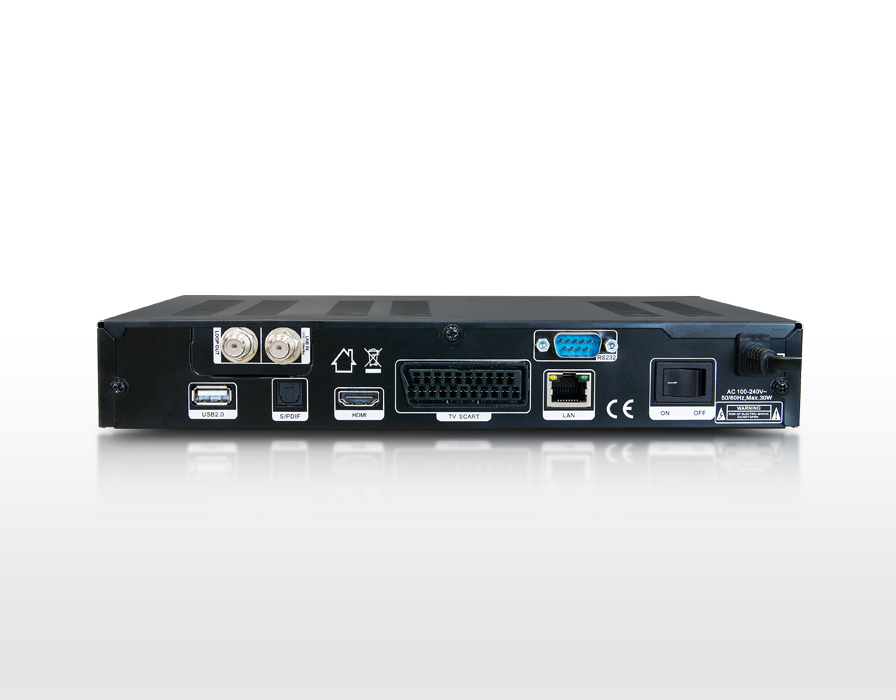

Rear Panel

  • DVB    LNB input  and output  F-type – Female
  • HDMI output    1 x
  • S/PDIF    1 x
  • SCART    1 x
  • USB2.0    1 x
  • RJ45    1 x

Others

  • Power Supply    Smps,Input AC 100 ~ 240V, 50/60Hz; Eureapean plug
  • Power Consumption    Max 25W
  • Ambient Operation Temperature    0 ~ 40℃
  • Product size    280*233*55mm
  • Gift box size    296*76*310mm
  • CE, RoHs, EuP LPC,
