Others Modulators EDISION HDMI MODULATOR lite QUAD

EDISION HDMI MODULATOR lite QUAD

Brand: Edision

Rating : Not Rated till now !  - Rate the product now or check reviews from customers

Plug version (if using)
EU US/CA UK

Choose packing size : CHOOSE BIGGER PACK SIZE TO GET THE LOWEST PRICE
Price per unit:
Total price:
Price is excluding VAT !
€ 360,00
Check Shipping price

Add to the Favourites list

Currently not available, Out of stock
   Set up Watch Dog on this item here.

Interested in this product ?

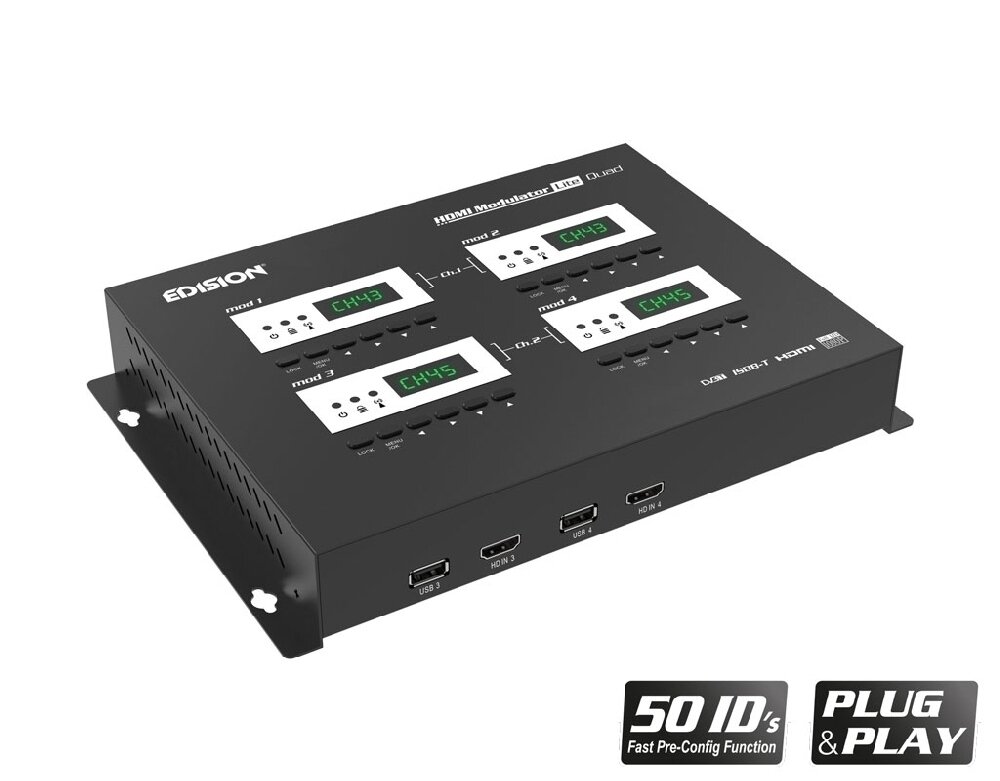

EDISION QUAD HDMI  MODULATOR

New modulator from Edision company 4x HDMI to 2xDVBT outputs

EDISION Quad-channel digital modulator. 4 x HDMI inputs to 2 x DVB-T/ISDB-T outputs, VHF/UHF MPEG4 FULL HIGH DEFINITION, with pre-configured IDs and easily selectable programming. Up to 4 X HDMI signal inputs from any HDMI source (Terrestrial & Satellite TV receivers, cameras, DVD's, DVR's, Digital Signage, etc) is converted to 2 x up to FULL HIGH DEFINITION 1080p, Digital Terrestrial DVB-T/ISDB-T MPEG4 signal outputs, in VHF/UHF band. Produces excellent quality digital COFDM signal output, combined with reliable functionality and stable operation, under all configurations. With 4 x USB ports for fast CONFIG DATA function for each sub-unit. Plus, its FAST PRE-CONFIG function offers 50 pre-configured and easily selectable ID's for quick and easy programming. The selection of each one of the 4 IDs per quad unit, is made for each individual sub-unit on its own Display/Mod and the configuration of the 2 output channels, from the menus and displays of Modulator Displays 1 & 3

Technical features:

- Quad channel Digital HDMI Modulator DVB-T/ISDB-T VHF/UHF, with FAST PRE-CONFIG function (50 ID’s Selectable) plus CONFIG DATA function (USB extract, easy upload to each sub-unit Modulator)
- INPUT signal: 4 x HDMI v1.4a
- OUTPUT signal: 2 x outputs, up to FULL HIGH DEFINITION (1080i, up to 1080p@30FPS), Digital Terrestrial DVB-T/ISDB-T signal, MPEG4
- Aspect Ratio 16:9 wide screen, 4:3 letter box, 4:3 pan scan
- Frequency Range VHF (CH. 5-12) & UHF (CH. 21-69)
- RF Output Level: Factory default 90 dbμV, with adjustable gain up to +6dbμV or attenuation up to -14dbμV
- MER: >35dB at Maximum RF output level
- Symbol Rate 6MHZ: Up to 2x8000 MBPS, 7MHZ: Up to 2x9000 MBPS, 8MHZ: Up to 2x10000 MBPS
- Bandwidth 6MHZ, 7MHZ, 8MHZ
- Video Encoder MPEG1, MPEG2 MP@HL , MPEG4 SP@L3 to ASP@L5, MPEG4 AVC HP @level4.1, MP@level4.1
- Audio encoder MPEGI L1/2, MPEGII LII, AAC LC, HE-AAC v1/v2 (2-CH)
- Processor System: CPU 4 x 200MHZ 32Bits RISC
- Memory 4 x DDRII 16bit 512Mbits (Embedded) & NOR Flash 32Mbit
- Input HDMI 4 x v1.4a
- USB Type 4 x USB 2.0 HOST, Fat32 support
- 4 x 4-digit LED display
- Power supply unit type: Adapter Input:100~240V AC,Output:DC 12V/3.0A
- Power consumption in normal working mode: 20W maximum
- Dimensions: 255x195x45 mm
- Colour: Black
- Warranty: Two [2] years

PRODUCTION FINISHED, PLEASE CHOOSE FROM THE PRODUCTs BELOW
