LNB's Edision Twin LNB TL-2 SE

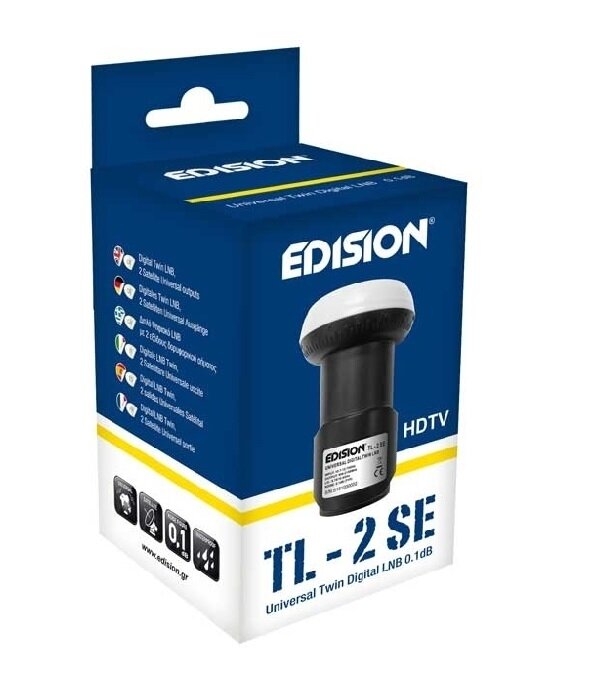

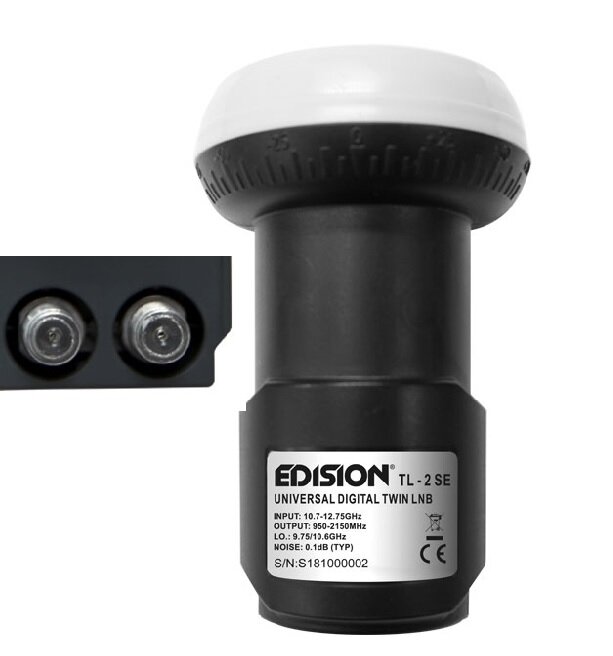

Edision Twin LNB TL-2 SE

Brand: Edision

Rating : Not Rated till now !  - Rate the product now or check reviews from customers

Plug version (if using)
EU US/CA UK

Choose packing size : CHOOSE BIGGER PACK SIZE TO GET THE LOWEST PRICE
Price per unit:
Total price:
Price is excluding VAT !
€ 9,90
Check Shipping price

Add to the Favourites list

Currently not available, Out of stock
   Set up Watch Dog on this item here.

Interested in this product ?


EDISION twin output LNB TL-2 TWIN SE. For distributing one satellite to two satellite Set-Top-Boxes or satellite TV tuners.

Technical features:

  • - Input Low Band: 10.7...11.70 GHz
  • - Input High Band: 11.7...12.75 GHz
  • - Output Low Band: 950...1950 MHz
  • - Output High Band: 1100...2150MHz
  • - Gain (dB) 55dB (Min)
  • - Noise Figure (dB) Low Band: 0.5 dB (Typ.), High Band: 0.5 dB (Typ.) 6dB (Max.)
  • - Output Connector Type 75Ω Female Connector
  • - Output Return Loss -10dB (Max.) @ 25C / 77F
  • - L.O. Frequency Low Band: 9.75 GHz, High Band: 10.6GHz
  • - L.O. Frequency Stability ± 1MHz (Max.) @ 25C / 77F
  • - DC Current Consumption: 130mA (Max.)
  • - Operating Voltage: Vertical: 10...14 Vdc, Horizontal: 15.5...21 Vdc
  • - Band Switching: Low Band: 0 Hz, High Band: 22 KHz ± 4KHz
  • - Operating Temperature Range: -40C...+60C
  • - Storage Temperature Range: -55C...+80C
  • - Warranty: 2 years
  • - Watter protection of F connectors included in package


Shipping worldwide from EU stock, next day delivery. DVBMarket Edision distributor.
