Receivers DVB-S/T/C Linux & Android OS receivers Edision OS MEGA Triple (2xS2+T2C) HEVC

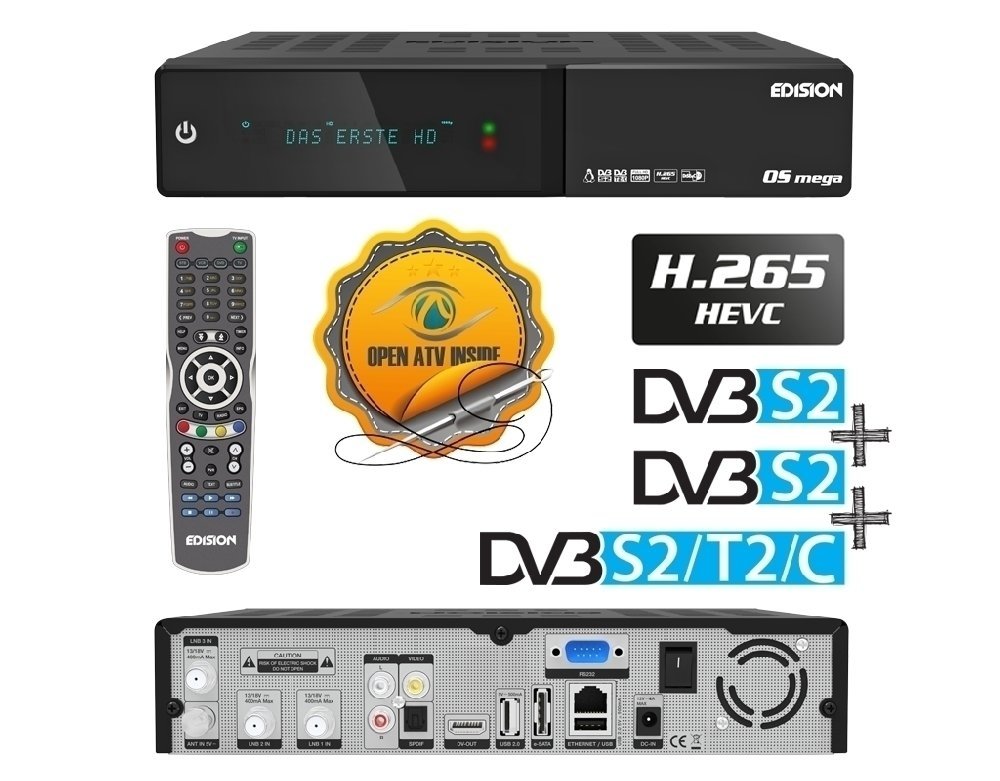

Edision OS MEGA Triple (2xS2+T2C) HEVC

Brand: Edision

Rating : Not Rated till now !  - Rate the product now or check reviews from customers

Price per unit:
Total price:
Price is excluding VAT !
€ 160,00
Check Shipping price

Add to the Favourites list

Currently not available, Out of stock

Interested in this product ?

The senior member of EDISION OS mini family is now here! OS mega DVB-S2 + DVB-S2 + DVB-S2/T2/C has been already added in our E2 Linux product range. It is going to amaze you emboding fetaures like 3 tuner, Linux operating system, H.265 HEVC support, BROADCOM MIPS Dual Core 1600MHz processor, 512MB NAND Flash & 1GB RAM, WiFi & Bluetooth on board, full Media Player H.265 HEVC, EDISION 4:1 UNIVERSAL IR remote control, common Interface slot, card reader slot and 12 digit VFD display. All the above, combined with unbelievable price and uncompromised EDISION guarantee and support, make it a one way option for your choice !!

Technical Features:

- Type: Digital Combo receiver LINUX - Full HD H.265 HEVC - 2 x Tuner DVB-S2
- 1 x Tuner DVB-S2/T2/C
- Linux operating system
- MPEG2 / H.265 HEVC demodulator
- Processor: Mips Broadcom 1600 MHz Broadcom BCM73565
- 512MB NAND Flash / 4MB SPI Flash / 1GB DDR3 RAM
- Video resolution: 1080p, 1080i, 780p, 720p, 576p, 576i, 480p, 480i
- OpenGL ES 2.0 Hardware 3D Graphics
- Full Media Player H.265 HEVC
- Web Browser and HbbTV support
- Free streaming of Internet TV and Radio
- PiP Support
- VFD Display (12 digits)
- 2.5’’ SATA3 internal socket
- e-SATA external socket
- WiFi Connection embedded on-board
- Bluetooth embedded on-board 2.1/3.0/4.0
- Unlimited channel memory
- Super-sensitive tuner, for receiving weak-signal channels
- 1 x smartcard reader
- 1 x Common Interface slot
- 10/100/1000 Mbps Ethernet interface
- 3 x USB2.0 PVR Ready ports (1x at the frontside & 2x at the backside)
- 1 x HDMI 1.4a port
- 1 x RS232 port
- 1 x RCA port
- 1 x S/PDIF & CVBS port
- Speed-regulated fan (optional)
- Channel switch in less than 1 second
- Extended ΕPG and viewing programming options in the EPG
- Expandable Add-Ons & Plug-Ins
- Bouquet list support
- Multilingual OSD, Skin - support
- Channel search: Fully automatic / manual
- Timer & Multi-Timer function
- Supports Teletext & Subtitles to OSD and VBI
- Compatible with DiSEqC 1.0, 1,1 ,1.2 and 1.3 (USALS)
- Less than 0.5 Watt power consumption in standby mode

Front Panel:

- Display type: VFD Display (12 digits) - 1 x Smartcard slot
- 1 x Common Interface slot
- 1 x USB 2.0 port
- Keys: Power

Back panel:

- 1 x Power ON/OFF switch - Sat-IF input: 3x F-type
- RF input: 1x IEC-type
- TV connection: 1x HDMI, 1x RCA
- Video output (digital): 1x HDMI
- Audio output (digital): Standard optical (S/PDIF)
- 2 x USB 2.0 ports
- 1 x e-SATA port
- 1 x Ethernet port
- 1 x RS232 port
- 1 x DC in (for the external PSU)

Package includes:

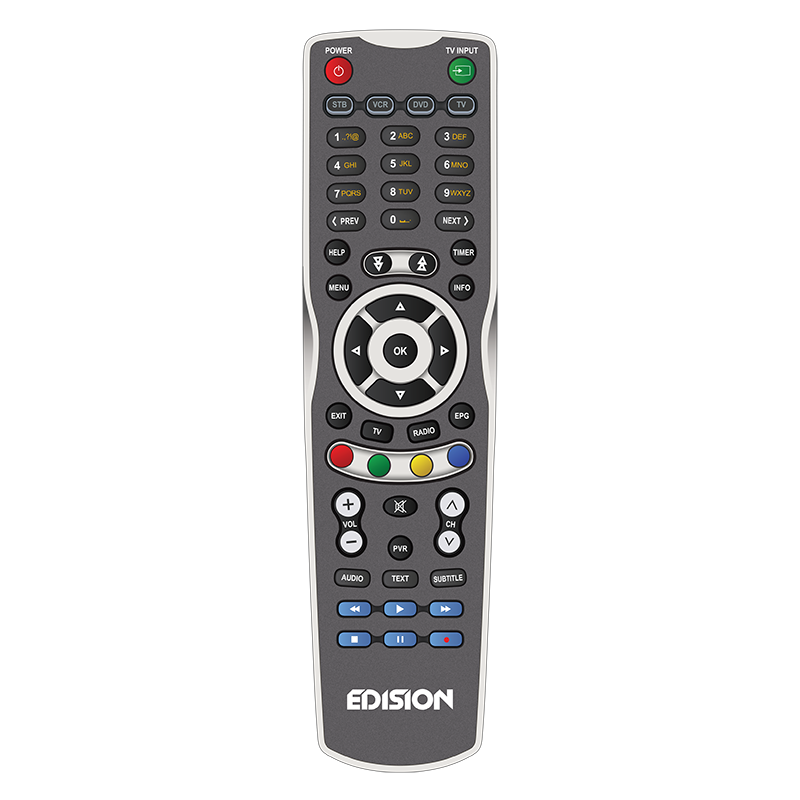

- EDISION OS 4:1 UNIVERSAL IR remote control - External 12v power supply unit
- SATA cable
- HDD screws with rubber protectors
- Start Guide EN/DE/GR
- 2 x "ΑΑΑ" batteries


- Dimensions: (W x H x L): 280x60x240 (mm)
- Weight: 1,8 kilograms
- Color: Black
- Warranty: 2 years

DVBMarket offering full portfolio of Edision receivers, feel free to contact us.
