Terra MHI430 3 HDMI to IP Encoder – 3x HDMI Input to IP Multicast Streamer

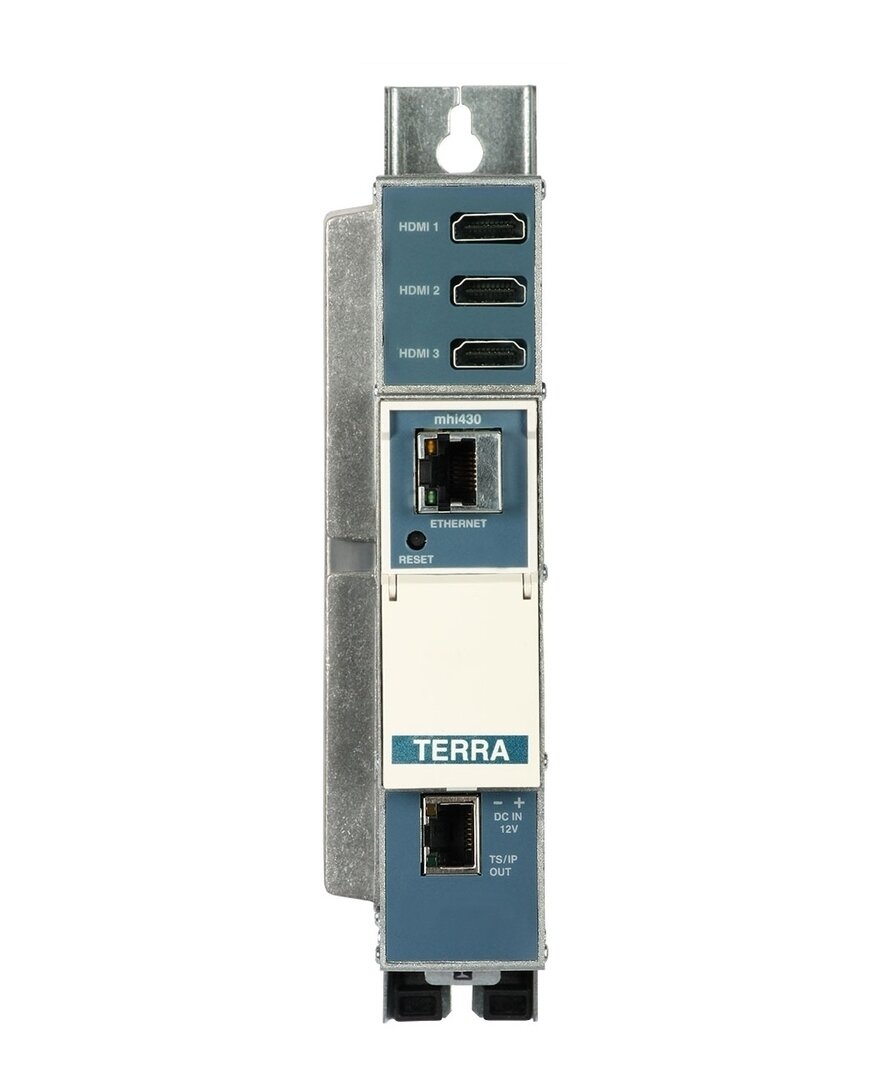

The Terra MHI430 (R81607) HDMI to IP Encoder is a versatile and high-performance device that converts signals from three independent HDMI sources into IP multicast streams. Ideal for IPTV systems, it efficiently distributes Full HD content over Ethernet networks while minimizing LAN resource usage.
Key Features:
-
Converts 3 HDMI sources to 3 separate IP multicast streams
-
H.264 video encoding with individual multicast addresses for each stream
-
Supports IPTV playback on PCs, laptops, smartphones, and tablets using free software like VLC
-
SAP/SDP automatic configuration protocol – no setup required for TERRA IPTV receivers (HD-442 R81612)
-
Delivers IP multicast streams to save bandwidth on LAN infrastructure
-
Supports signal transmission via twisted-pair Ethernet cables and optical fiber for long-distance distribution
-
Output streams are limited to 11 Mbps per channel, ensuring efficient compression without sacrificing video quality
Terra MHI430 IPTV Encoder – Details and Advantages
The TERRA MHI430 encoder accepts high-definition HDMI signals with resolutions ranging from 720_50i to 1920x1080_60p. It features:

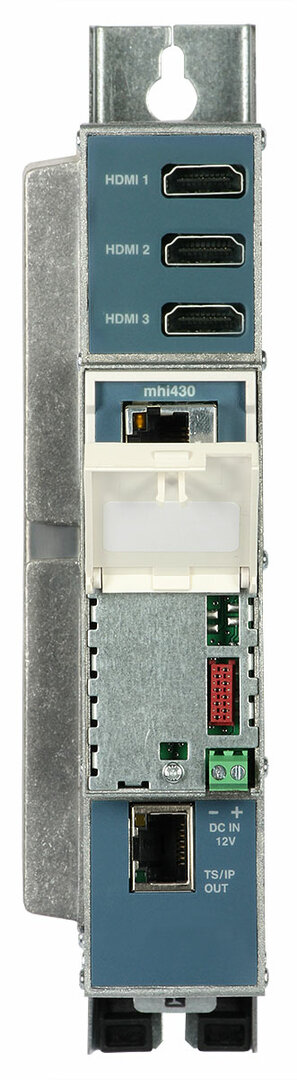

- Three HDMI inputs for flexible source selection
- RJ-45 output for SPTS IP streaming (Single Program Transport Stream)

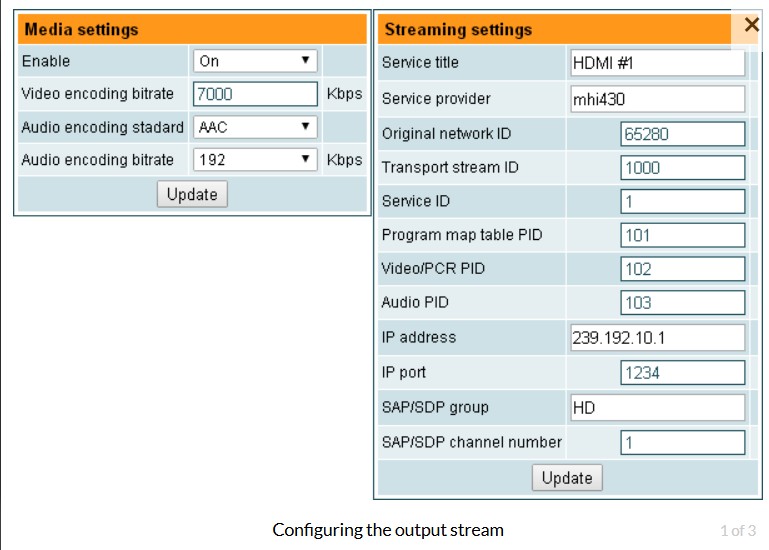

- Ethernet control port for easy configuration via web interface
Each HDMI source is encoded using H.264 video compression and MPEG-1 Layer II or AAC audio formats. The encoder supports independent configuration of each stream with unique multicast addresses, using UDP/RTP protocols or SAP/SDP for seamless device discovery and automation.
Compatible Signal Sources:
-
Media players
-
Blu-ray players
-
DVRs
-
PCs and Set-Top Boxes (STBs)
The IP multicast stream can be distributed to multiple receivers using Ethernet switches. The streams can be decoded by:
- PCs, laptops, tablets, and smartphones (recommended free VLC software)
- TERRA HD-442 IPTV receivers (R81612) – fully automatic plug-and-play configuration with no user setup required
IPTV System Benefits:
One of the key advantages of the Terra IPTV ecosystem is that it operates without any middleware software or licensing fees. The system is simple, cost-effective, and scalable, making it ideal for large TV networks, hotels, and commercial IPTV installations. TERRA’s unique protocol allows automatic configuration of receivers, which significantly simplifies deployment in complex systems.
The MHI430 Encoder Supports Integration With:
- Media converters for transmitting IP signals over optical fiber
- IPTV streamers for managing DVB satellite, terrestrial, and cable channels over Ethernet
- Mix-440 IP to DVB-T transmodulator (R81611) for converting IP streams into DVB-T COFDM channels
-
Summary of Benefits:
- Converts Full HD HDMI signals to IP multicast streams
- Simultaneous streaming of three HDMI sources
- Efficient LAN resource utilization via multicast transmission
- Simple, fully automated setup for IPTV receivers
- Supports twisted-pair and optical fiber transmission
- Ideal for professional IPTV installations, hotels, commercial buildings, and digital signage systems
Network Requirements:
⚙️ Note: For optimal IPTV performance, ensure the system uses managed Ethernet switches with IGMP Snooping v2 support to properly manage multicast packet distribution.
DVBMarket, Terra distributor. Shipping worldwide from Europe stock.
