TERRA SDI482C IPTV STREAMER, 8×DVB-S2X/S2 to IP, 2×CI , USB
Brand: TERRA
Rating : Not Rated till now ! - Rate the product now or check reviews from customers
Plug version (if using)
| Price per unit: | |
|---|---|
| Total price: Price is excluding VAT ! |
€ 490,00 |
| Check Shipping price |

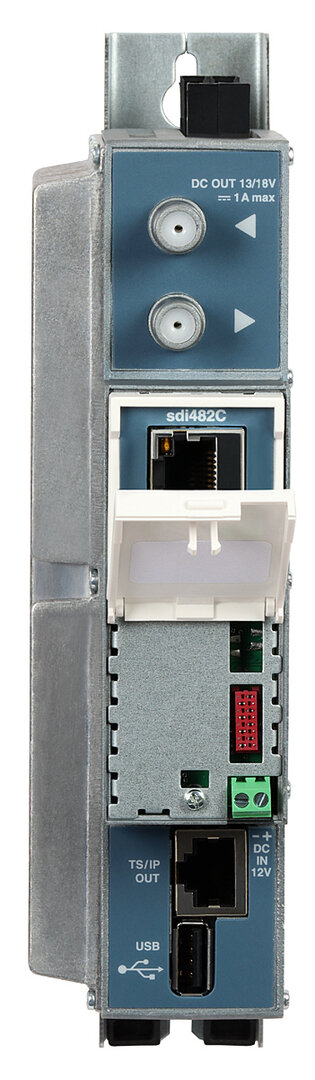

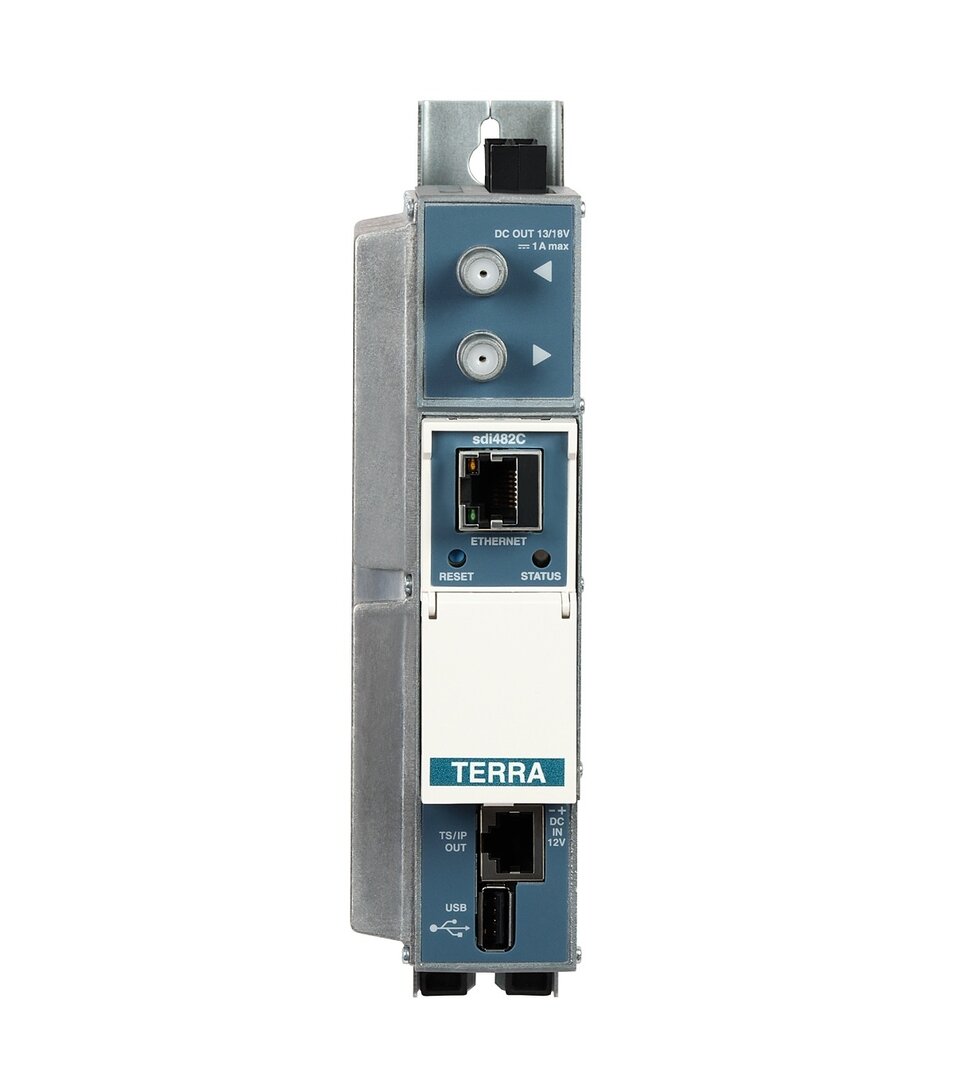

Terra SDI482C IPTV Streamer – 8x DVB-S2X/S2/S to IP Multicast Converter
The Terra SDI482C IPTV streamer (R81594) is a professional-grade device designed to convert DVB-S2X/S2/S satellite signals, including encrypted channels, into an IP multicast stream with a maximum throughput of 0.6 Gbps. This IPTV headend module is ideal for distributing satellite TV content over a twisted-pair Ethernet network (LAN) using multicast technology, which significantly reduces bandwidth consumption.
Key Features:
- Conversion of DVB-S2X/S2/S satellite signals to IP multicast stream
- Supports encrypted channels via two CI slots for Conditional Access Modules (CAMs)
- Receives signals from up to 8 satellite transponders simultaneously

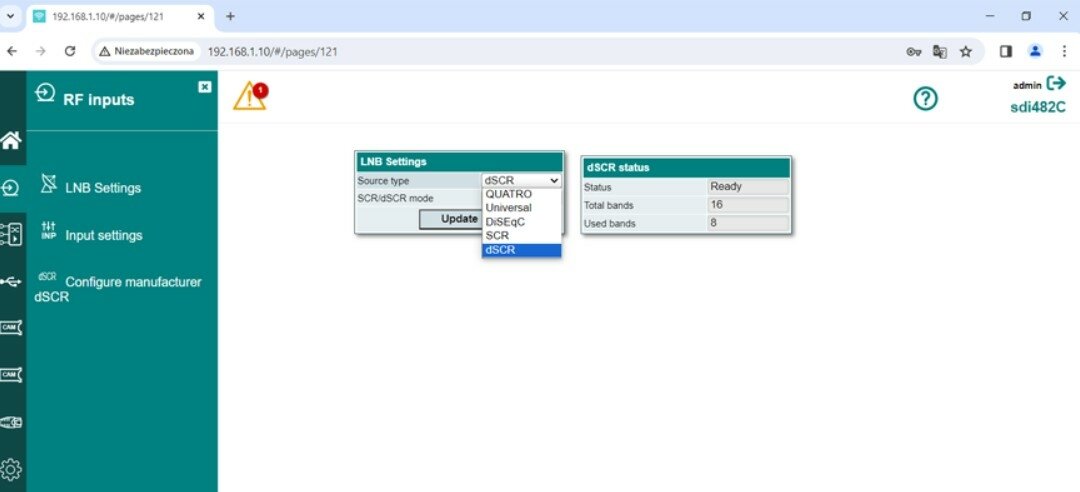

- Compatible with single-cable dSCR/Unicable multiswitch systems (EN50494, EN50607)
- USB port for streaming source files in .ts (MPEG-2 Transport Stream) format
- Delivers IP multicast stream up to 0.6 Gbps with low LAN resource usage
- Allows custom channel lists (e.g. thematic or language-based) automatically detected by receivers
- TV streaming to PCs and laptops using free IPTV software
- Easy integration with twisted-pair cabling and fiber-optic networks for long-distance transmission
- Low power consumption and optional redundant power supply for reliable operation
- Unique automatic receiver configuration protocol – no manual setup required
Efficient IPTV Distribution via Ethernet
The SDI482C IPTV streamer simplifies satellite TV distribution by allowing signals to be sent over existing Ethernet cabling. In many installations, only a single UTP/FTP cable is needed for both IPTV and data transmission, significantly reducing infrastructure costs. In larger projects, separate cables can be used for even better traffic management.
The IP multicast stream is distributed to end receivers via standard network switches. The system’s use of multicast technology minimizes network load and ensures efficient, scalable TV distribution in hotels, residential buildings, hospitals, and large IPTV systems.
No Middleware Required – Plug & Play Operation
One of the greatest advantages of the Terra IPTV solution is that it does not require any middleware software between the headend and the IPTV receivers. This eliminates additional licensing costs and makes the system extremely simple to configure and manage. Terra’s IPTV receivers, such as R81612 units, automatically detect new channels and system changes without any manual configuration, which is especially beneficial in large networks.
Additional Highlights:
-
IPTV system supports TV signal distribution over long distances via fiber optic links
-
Seamless connection with SRM522 multiswitches (R80522) using the single-cable standard
-
Efficient network usage with up to 0.6 Gbps IP multicast bandwidth per panel
-
Supports USB playback of external content in MPEG-2 TS format
Network Requirements:
⚙️ Important: To ensure proper IPTV functionality, the system must use managed Ethernet switches with IGMP Snooping v2 support, which enables efficient control of multicast packet transmission.
DVBMarket, Terra distributor. Shipping worldwide from EU stock, next day delivery.
