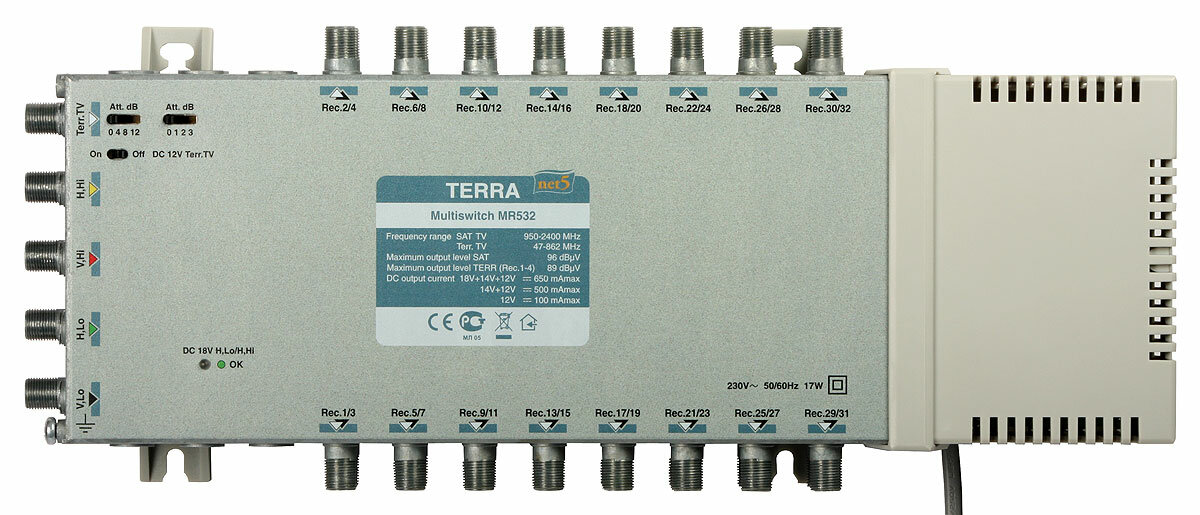

Terra MR-532 5/32 Multiswitch (Active Terrestrial Path, Class A)
Product Overview
The Terra MR-532 is a high-end 5-input and 32-output radial multiswitch designed for professional small and medium-sized SMATV (Satellite Master Antenna Television) installations. It efficiently distributes satellite TV signals from one satellite (via a Quatro LNB) alongside terrestrial TV (DVB-T/T2, DAB) and FM radio broadcasts to up to 32 single outlets or 16 PVR twin receivers.
Built with reliability and performance in mind, this Class A device features an active terrestrial path, built-in pre-correction of cable attenuation, and robust die-cast housing for maximum screening efficiency. As a trusted partner, dvbmarket.com proudly serves as the official Terra distributor for the European market, ensuring access to top-tier TV/SAT distribution components with full technical support.
Key Features
-
High-Capacity Distribution: 5 inputs (4x SAT IF, 1x Terrestrial TV) and 32 legacy outputs.
-
Active Terrestrial Path: Enables integration and amplification of DVB-T/T2, DAB, and FM radio signals with a built-in preamplifier power supply (12 V DC / 100 mA).
-
Signal Equalization & Pre-Correction: Built-in cable loss correction compensates for frequency-dependent attenuation differences across long cable runs.
-
Grouped Output Levels: Outputs are divided into groups with different signal levels to balance attenuation across various cable lengths, ensuring uniform signal strength at all terminal outlets.
-
Class A Shielding Efficiency: High-quality die-cast enclosure prevents external electromagnetic interference.
-
Versatile Topology: Optimal for star-topology systems in single-family homes, residential buildings, and modern housing developments.
-
Reliable Power Supply: Integrated 230 VAC power supply capable of powering adjacent system components.
Technical Specifications
| Parameter | Specification Value |
| Manufacturer / Brand | TERRA |
| Model | MR-532 (Code: R70632) |
| Type | Final / Classic Radial Multiswitch |
| Application | Indoor use |
| Number of Inputs | 5 (4 × SAT IF, 1 × Terrestrial TV/Radio) |
| Number of Outputs | 32 (Legacy) |
| Cooperating Converter (LNB) | 1 × Quatro |
| RF Path Type | Active Terrestrial Path |
| Input RF Band (Terrestrial) | 47 – 862 MHz |
| SAT IF Band | 950 – 2150 MHz |
| RF Path Gain Control | 0 to -15 dB (in 1 dB steps) |
| RTV Signal Level at Outputs | 80 – 86 dBµV (depending on output group) |
| SAT IF Signal Level at Outputs | 96 dBµV |
| Input/Output Isolation | >30 dB (SAT IF), >35 dB (FM/TV) |
| Screening Efficiency | Class A |
| Preamplifier Power Supply | 12 V DC / 0.1 A |
| Power Supply | 230 V AC, 50/60 Hz (Built-in power supply) |
| Power Consumption | 2 W |
| Operating Temperature | -20 °C to +50 °C |

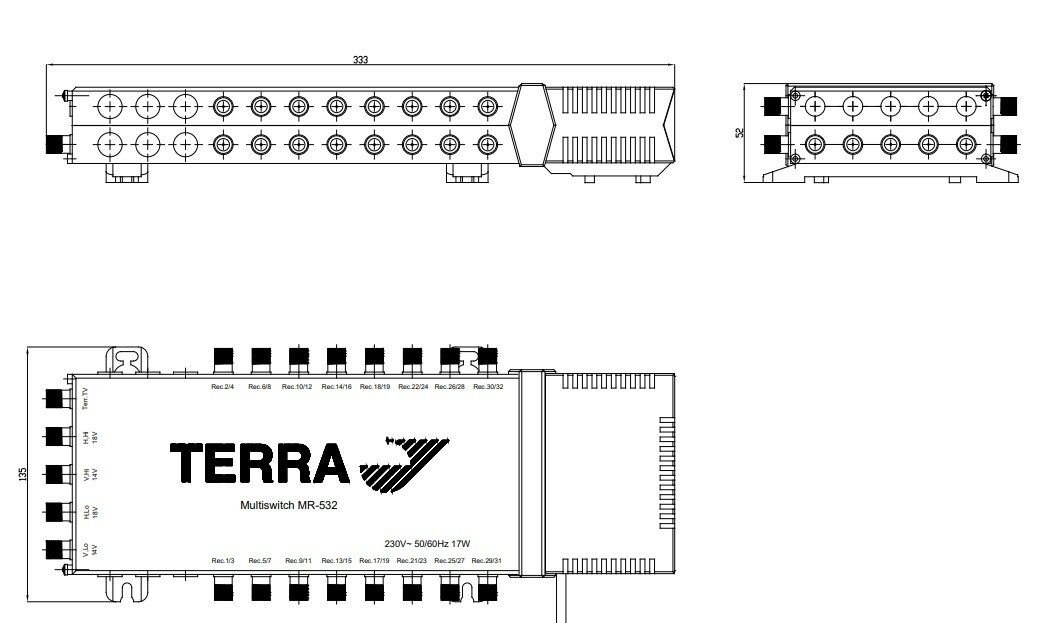

| Dimensions | 333 × 135 × 52 mm |
| Weight | 2.1 kg |
