Terra Multiswitch 5/16 Terra MR-516
Brand: TERRA
Rating : Not Rated till now ! - Rate the product now or check reviews from customers
Plug version (if using)
| Price per unit: | |
|---|---|
| Total price: Price is excluding VAT ! |
€ 199,00 |
| Check Shipping price |

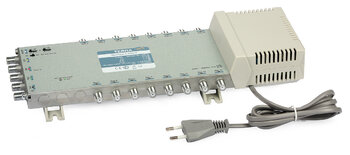

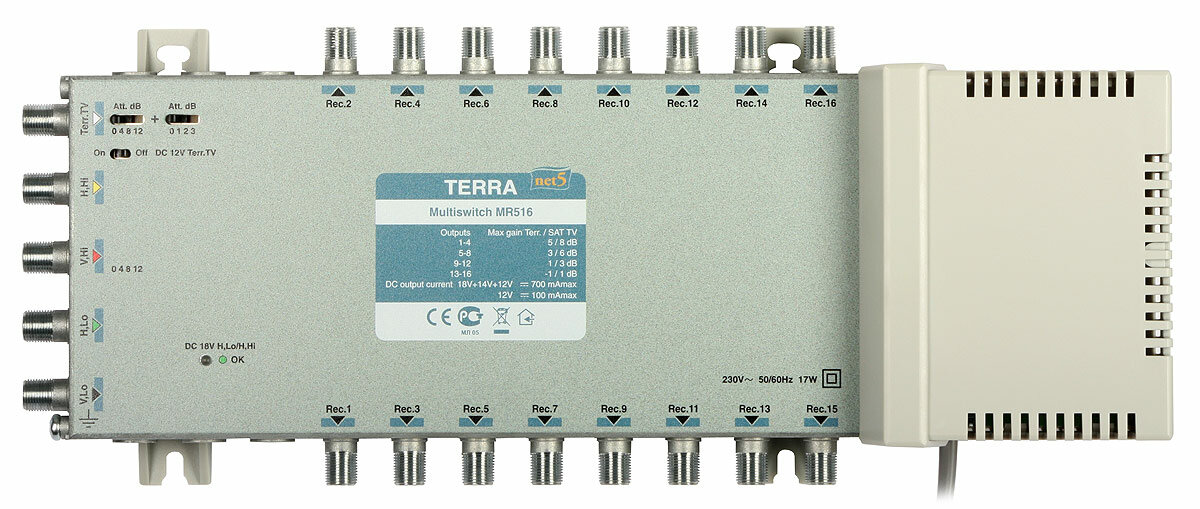

The Terra MR-516 Multiswitch has 5 inputs and 16 outputs - it is used for distributing SAT TV channels from one satellite and terrestrial DVB-T, DAB and FM broadcasts to 16 outlets. In the case of twin PVR receivers, one receiver has to be connected to two outlets.
The die-cast housing provides high screening efficiency by preventing the penetration of interfering signals into the unit.
The input SAT signals to multiswitch systems are provided by QUATRO LNBs.
Key features:
- radial structure
- cable loss correction
- groups of outlets with different output levels
- isolation between inputs better than 30 dB
- possibility of using terrestrial TV preamplifier (12 VDC)
- built-in power supply
- die-cast housing with high screening efficiency (class A)
The device from the well known Terra company that specializes in producing professional multiswitches for SMATV systems. Excellent workmanship, stable parameters and very low failure rate make TERRA multiswitches universally recommended.
An important advantage of MR-5XX multiswitches is diversification of signal levels at different groups of outputs. It allows to compensate the differences in attenuation of various lengths of cables that have to be used in the installation - we can get similar levels in all outlets. Additionally, the multiswitches compensate cable characteristics (provide higher levels for higher frequencies).
The unit is supplied with AC 230 V. All safety rules for these voltages must be obeyed.
The MR516 5 in/16 out multiswitch with power supply and active terrestrial TV path is dedicated for small and medium-sized installations with RTV/SAT signal distribution.
• Distribution of satellite, terrestrial TV and radio signals
• Capable of distributing signals to 16 single outlets or 8 PVR receivers
• Armoured casing guaranteeing high level of shielding - class A
• Built-in cable pre-correction
• High signal separation on inputs and outputs
• Grouping of outputs by gain - easier installation
• Separation between inputs greater than 30 dB
• Possibility to supply preamplifier in DVB-T/T2 antenna
