Receivers DVB-S/T/C Combo receivers AMIKO MINI COMBO HD SE

AMIKO MINI COMBO HD SE

Brand: Amiko

Choose packing size : CHOOSE BIGGER PACK SIZE TO GET THE LOWEST PRICE
Price per unit:
Total price:
Price is excluding VAT !
€ 49,00

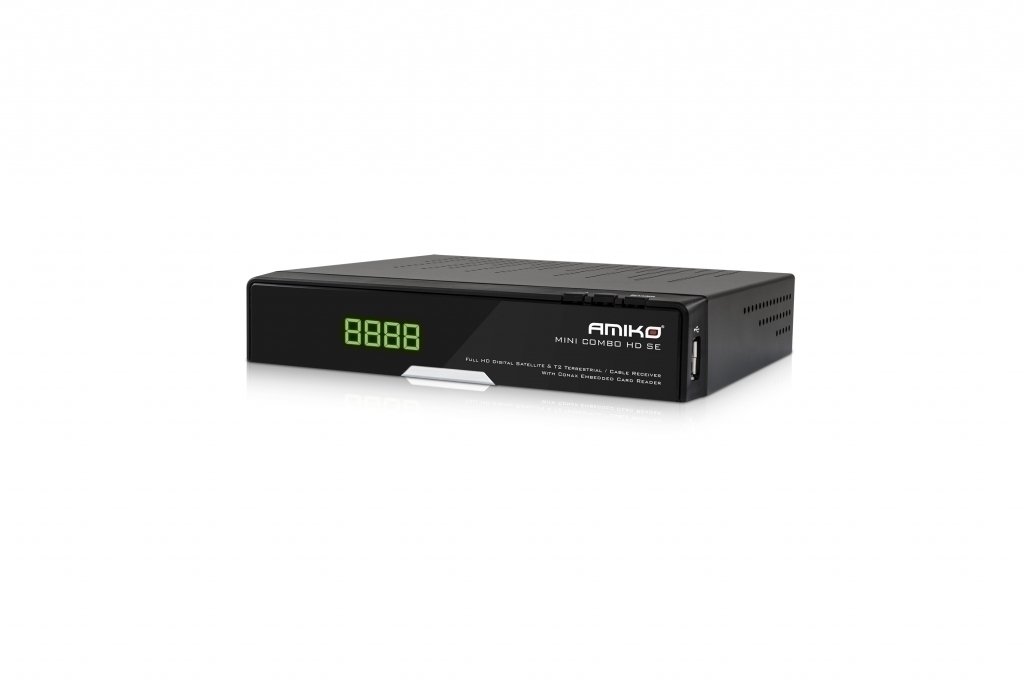

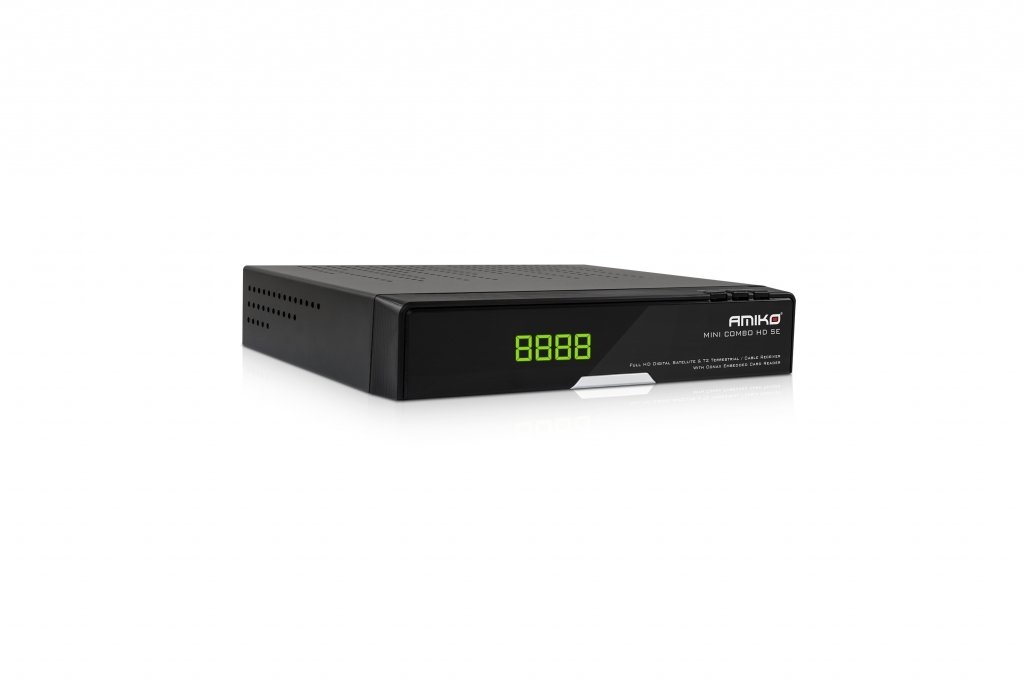

AMIKO MINI COMBO HD SE

  • Compact design
  • Embedded card reader
  • Two High speed USB 2.0 connections
  • Multimedia playback
  • Stream TV & Radio channels to your Android devices via local network!
  • Ethernet & USB WiFi connection support (Ralink RT5370 chip)
  • YouTube, Weather Forecast & RSS Reader functions
  • Full HD 1080p output through HDMI
  • Jack type analogue RCA output
  • DiSEqC 1.0, 1.1, 1.2 and USALS Compatible
  • Easy software upgrades through USB or network
  • Easy database & settings transfers through USB
  • Less than 0.5W power consumption in stand-by mode
  • 12V DC power - ideal for camping and traveling
Tuner & Demodulation
Tuner Type: DVB-S / DVB-S2
Input Connector: F-type, Connector, Female
Loop Through: F-type, Connector, Female
Signal Level: -65 to -25 dBm
LNB Power & Polarization: Vertical: +13V/+14V,
Horizontal: +18V/+19V
Current: Max. 300mA
Overload Protection
22KHz Tone Frequency: 22±1KHz
DiSEqC Control: Version 1.0, 1.1, 1.2, USALS
Demodulation: QPSK, 8PSK
Input Symbol Rate: 2-45 Mbps,
FEC: 1/2, 2/3, 3/4, 5/6, 7/8 and Auto

Tuner Type: DVB-T2 / DVB-C
Frequency Range: 48~862MHz
RF Input Level: -80dBm to -20dBm
Antenna power output: DC 5V at max 75mA, Overload protection
Demodulation: COFDM 1K, 2K, 4K, 8K normal and extended, 16K normal and extended, 32K normal and extended
Input Symbol Rate: 1.0 ~ 7.0Ms/s
Constellations: QPSK, 16QAM, 64QAM, 256QAM / Both rotated and non-rotated
Guard Intervals: 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128
Code Rate: 1/2, 3/5, 2/3, 3/4, 5/6

System Resources

Main Processor: 600MHz based CPU
Flash Memory: 64MBits
DDR RAM: 1024Mbits
MPEG TS A/V Decoding
Transport Stream: MPEG-2, MPEG-4 (H.264)
Input Rate: Max.120Mbit/s
Aspect Radio: 4:3, 16:9, Letter Box
Video Decoding: MPEG-2, MP@ML, MPEG-4 part 10/H264
Video Resolution: 720*480p/i, 720*576p/i, 1280*720p, 1920*1080p/i
Audio Decoding: MPEG-1 layer I/II, MPEG-2 layer II, Dolby Digital
Audio Mode: Left / Right / Stereo/ Mono
Sampling Rate: 32, 44.1 and 48KHz

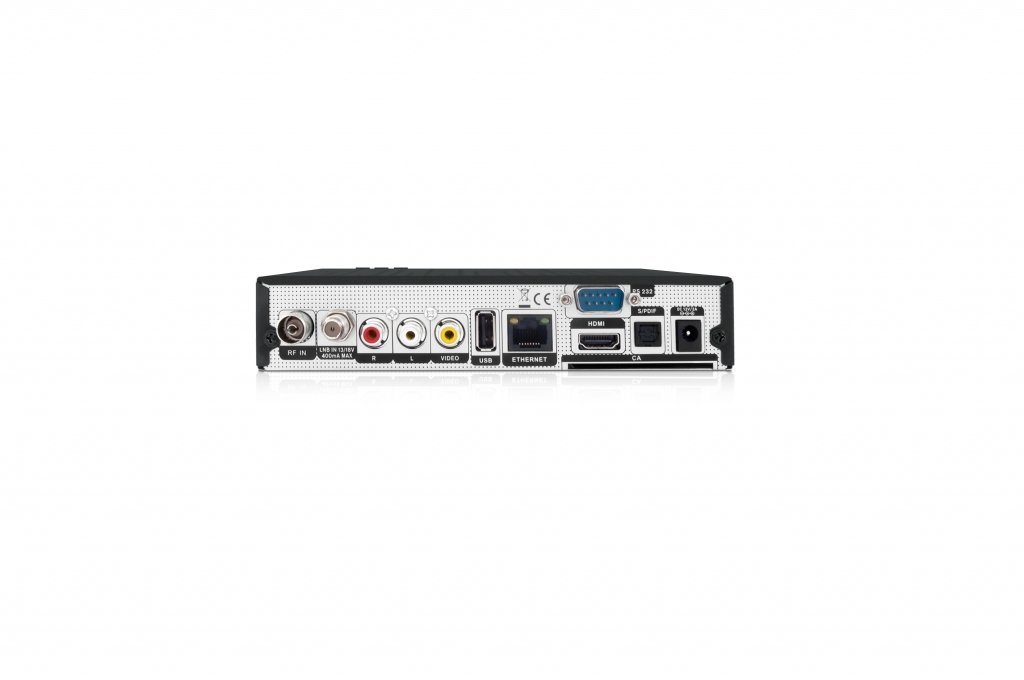

A/V & Data Input/Output
AV OUT: Video CVBS output, Audio L/R output (RCA)
LAN: RJ-45 Ethernet Connection
RS-232C: Transfer rate 115.2Kbps
USB: Two USB 2.0 slots
HDMI: VER1.3, Type A, Dolby Digital Bit-Stream Output
S/PDIF: Optical

Physical Specifications
Size[W*H*D]: 180 mm * 35 mm * 165 mm
Net Weight: 0.50 Kg
Operation Temperature: 0°C~+45°C
Storage Temperature: -10°C~+70°C
Storage Humidity: 5%~95% RH (Non-Condensing)
