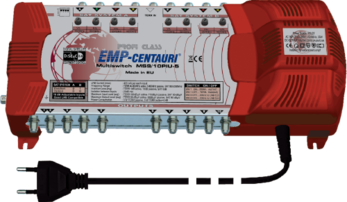

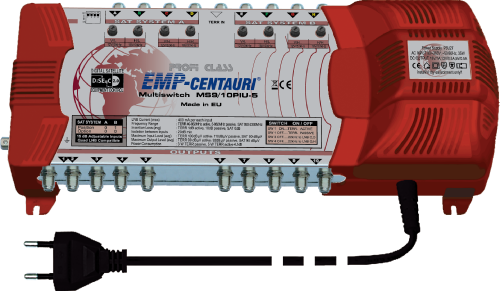

EMP Centauri Multiswitch MS 9/10PIU-5

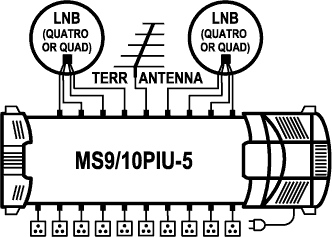

9in/10out standalone multiswitch for distribution of 8 SAT IF signals including terrestrial for up to 10 users

Parameter Condition Value
Frequency range LNB inputs 950-2300 MHz
Terr. input 5-862 MHz (passive)
40-862 MHz (active)
Outputs 5-2300 MHz (passive)
40-2300 MHz (active)
Control DiSEqC 1.0 (2.0) commands
Insertion loss Sat. 0 dB avg
Terr. (passive) 18 dB avg
Terr. (active) 1 dB avg
Sat. inputs isolation Between V/H polarisations 20 dB min
Between low/high bands 20 dB min
Between sat. systems 25 dB min
Maximum input level* Sat. 90 dBµV avg**
Terr. 100 dBµV avg (passive)
90 dBµV avg (active)
Maximum output level* Sat. 90 dBµV avg
Terr. 82 dBµV avg (passive)
89 dBµV avg (active)
Power consumption From each receiver 50 mA (18 V)
From internal power supply 3 W (passive)
4.5 W (active) + LNB
Terr. preamplifier supply 150 mA max (12 V DC)
Dimensions (w,d,h) 34.7 x 15.2 x 8.7 cm
(power cord length 130 cm)
Temperature range -30 ~ +70 °C
