Accessories Wall socket Schwaiger DSV 20 011

Schwaiger DSV 20 011

Brand: Schwaiger

Rating : Not Rated till now !  - Rate the product now or check reviews from customers

Plug version (if using)

Price per unit:
Total price:
Price is excluding VAT !
€ 4,40
Check Shipping price

Add to the Favourites list

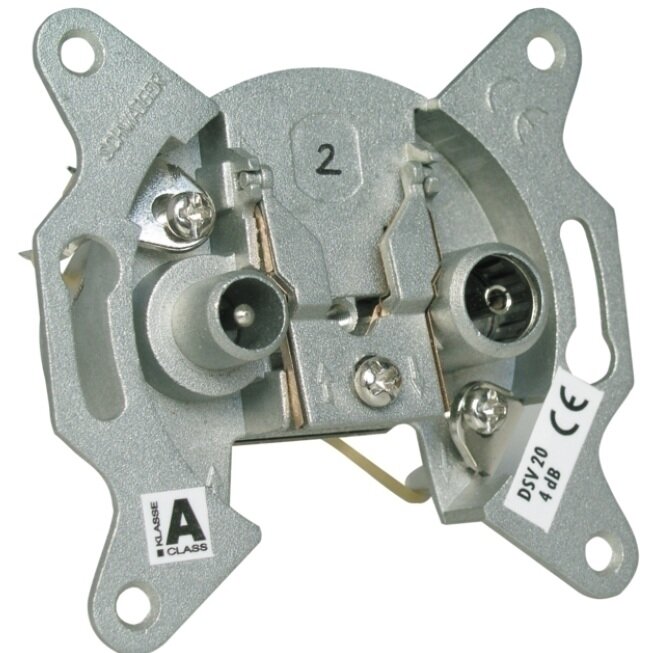

DSV 20 011

Pass-Through Socket or Distribution Socket (4 dB)

This SCHWAIGER® pass-through or distribution socket is suitable for use on single, community and broadband cable antenna system. It is designed to be a pass-through or terminal socket. When used as a terminal socket, the included resistor has to be inserted. The socket is suitable for reception of TV and radio signals and CAN NOT be used as a single socket. Thanks to a special clamping technique, the cable connections do not have to be screwed together.

  • hinged clamp for fastening of the outer conductor (max 7.5 mm)
  • clamping technology for screwless fastening of the inner conductor (Ø 0.8 - 1.3 mm)
  • crimping fastener for plaster inserts (55mm)
Frequency range 4 - 862 MHz
Through loss 4 - 4 dB
Classification Class A
Technology broadband cable systems, antenna systems, CATV
Isolation > 26 dB (TV / TV)
Installation depth 22 mm
Connection attenuation 5 dB (typical)
Connections 1x IEC socket
1 x IEC connector
SKU DSV 20 011
