Accessories Wall socket Schwaiger DSE 650 011

Schwaiger DSE 650 011

Brand: Schwaiger

Rating : Not Rated till now !  - Rate the product now or check reviews from customers

Plug version (if using)
EU US/CA UK

Choose packing size : CHOOSE BIGGER PACK SIZE TO GET THE LOWEST PRICE
Quantity:
unit/s
Price per unit:
Total price:
Price is excluding VAT !
€ 4,75
Check Shipping price

Add to the Favourites list

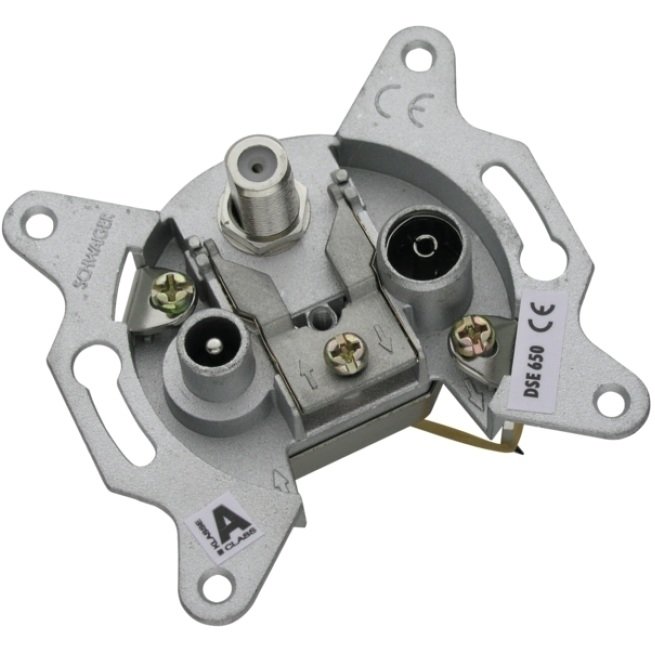

DSE 650 011

Single Antenna Socket or Stub Socket (2.5 dB)

This SCHWAIGER® single antenna socket is suitable for use on single, community, broadband cable and satellite systems. Due to the special clamping technique, the cable connections do not have to be screwed together.

  • hinged clamp for fastening the outer conductor
  • clamping technology for screwless fastening of the inner conductor (∅ 0.8 to 1.3 mm)
  • can only be used as a single socket
  • DC passage for LNB control via the satellite receiver on the satellite connection
  • crimping fastener for plaster inserts (55mm)
  • standards are found in conformity declaration (Support & Service)

TECHNICAL SPECIFICATIONS

Classification Class A
Connections (input) 1 x Detachable contact clamping spring
Connections (output) 1 x F socket
1 x IEC connector
1 x IEC connector
Decoupling > 24 dB (SAT / terrestrial)
Frequency range 950 - 2150 MHz (SAT)
4-862 MHz (TV)
4-139 MHz (RDF)
Dimension

(height) 66 mm

(width) 70 mm

(depth) 22 mm

Connection loss 2.5 dB (SAT)
2.5 dB (TV)
5.5 dB (RDF)
Installation depth 22 mm
SKU DSE 650 011
