Accessories Wall socket Schwaiger DSE 300 011

Schwaiger DSE 300 011

Brand: Schwaiger

Choose packing size : CHOOSE BIGGER PACK SIZE TO GET THE LOWEST PRICE
Quantity:
unit/s
Price per unit:
Total price:
Price is excluding VAT !
€ 4,30

Schwaiger DSE 300 011

2-Hole Single Or Tap Line Socket (2 dB)

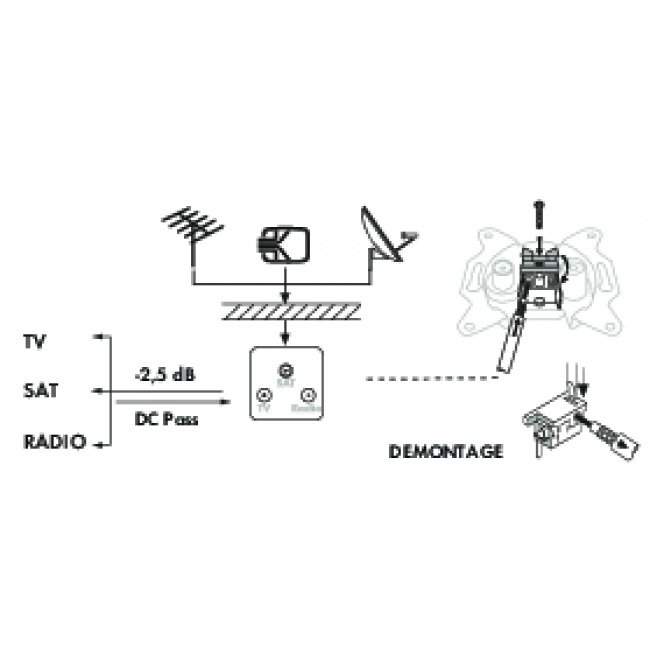

This SCHWAIGER® single or tap line socket is suitable for use on CATV, MATV, broadband cable TV and satellite TV system. It can be used Conly as a single socket. Thanks to the special clamping technique, the cable connections do not have to be screwed.

  • hinged clamp for fastening the outer conductor
  • clamping technology for screwless fastening of the inner conductor (∅ 0.8 to 1.3 mm)
  • crimping fastener for plaster inserts (55mm)
  • standards are found in conformity declaration (Support & Service)

TECHNICAL SPECIFICATIONS

Classifacation Class A
Connections (input) 1 x detachable contact clamping spring
Connections 1 x F socket
1 x IEC connector
Isolation > 26 dB (terrestrial / satellite)
Frequency range 950 - 2150 MHz (SAT)
5-862 MHz (TV / RDF)
Connection attenuation 1-2 dB
Installation depth 22 mm
SKU DSE 300 011
