Synaps HTIP-100

Brand: Synaps

Choose packing size : CHOOSE BIGGER PACK SIZE TO GET THE LOWEST PRICE
Quantity:
unit/s
Price per unit:
Total price:
Price is excluding VAT !
€ 40,25

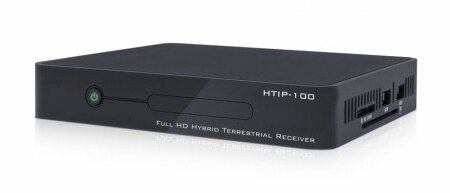

Synaps HTIP-100

Full HD Hybrid Terrestrial Receiver and Media Player
With Conax Embedded Card Reader

MAIN FEATURES:

  • Conax Embedded Card Reader
  • HLS Streaming support with Verimatrix DRM
  • Android OS
  • Channel Recording using External Storage Devices
  • Time-Shift Function (optional)
  • MKV, AVI, MPG, MP4, TS, MOV, MP3 Playback
  • Easy & Fast Auto Programming
  • User Friendly Multi Language On Screen Display (OSD)
  • SD Card reader
  • Built-in WiFi connection
  • Timer Function
  • Electronic Program Guide (EPG) Support
  • Event Recording by Electronic Program Guide
  • Customizable with various Android Apps
  • Powerful Channel Management Tools (Lock, Delete,
  • Move, Rename, Favorites)
  • HDMI Output - Full HD 1080p Support
  • CVBS/RGB output via RCA (Jack-to-RCA)
  • Software Upgrade via USB
  • Software Upgrade Support by OTA / Network
  • Logical Channel Number Support
  • Less than 1W power consumption in Stand-By mode
  • TECHNICAL SPECIFICATIONS:

TERRESTRIAL TUNER

  • IEC Type Female ~80 to ~20dBM
  • Input frequency 177.5~227.5MHz, 474~858MHz
  • Input Impedance 75 Ohm
  • Antenna Power 5V DC (50mA max)
  • Antenna Loop-through 51~858MHz Full-Band
  • POWER SUPPLY
  • Input Voltage 12V DC
  • Power Consumption 8W MAX (Less than 1W in
  • stand-by mode)
  • MPEG TS A/V Decoding
  • Transport Stream MPEG-2, H.264
  • Input Rate Max.120Mbit/s
  • Aspect Radio 4:3, 16:9, Letter Box
  • Video Decoding PAL, NTSC, 480i, 480p, 570i,
  • 576p, 720p, 1080i
  • Video Resolution 720*480i, 720*480p, 720*576i,
  • 720*576p, 1280*720p,1920*1080i,
  • 1920*1080p
  • Audio Decoding MPEG-1 Layers 1/2, Dolby Digital
  • Audio Mode Left / Right / Stereo
  • Sampling Rate 32, 44.1 and 48KHz

PHYSICAL SPECIFICATION

  • Size[W*H*D] 260mm X 40mm X 160mm
  • Net Weight 1.0 kg
  • Operation Temperature 0°C~+45°C
  • Storage Temperature -10°C~+70°C
  • Storage Humidity 5%~95% RH (Non-Condensing)
