AMIKO IMPULSE T2/C

Brand: Amiko

Choose packing size : CHOOSE BIGGER PACK SIZE TO GET THE LOWEST PRICE
Quantity:
unit/s
Price per unit:
Total price:
Price is excluding VAT !
€ 29,00

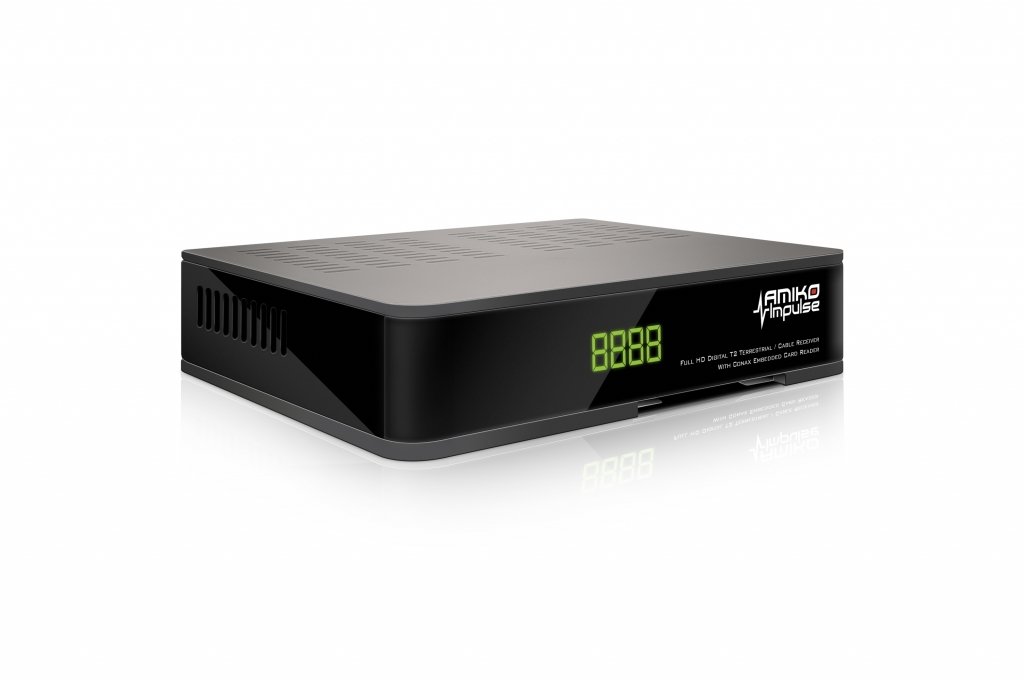

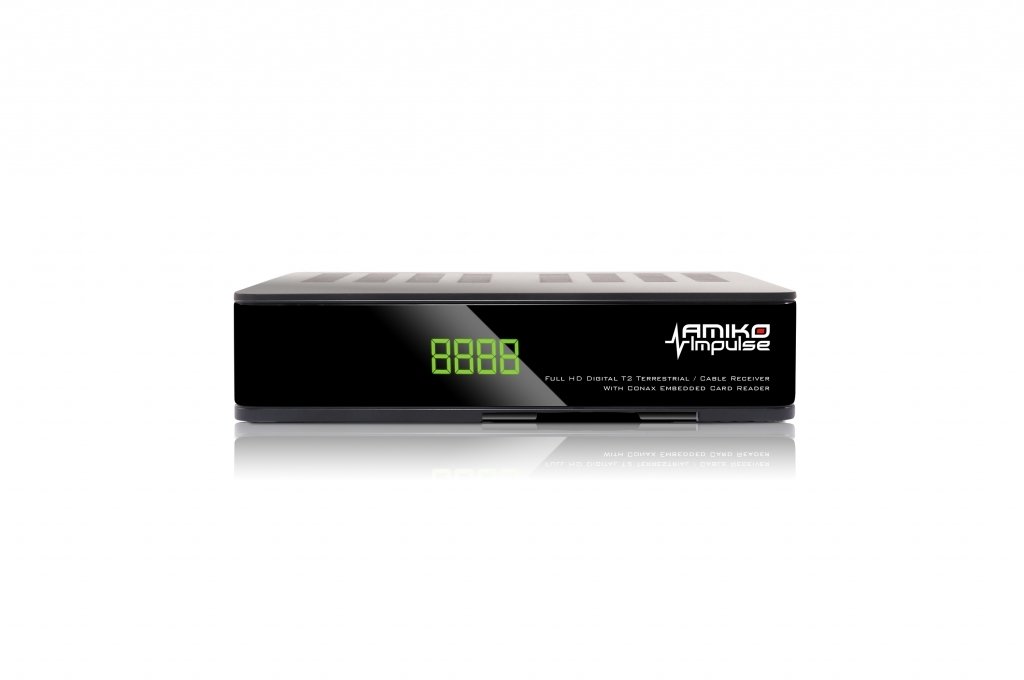

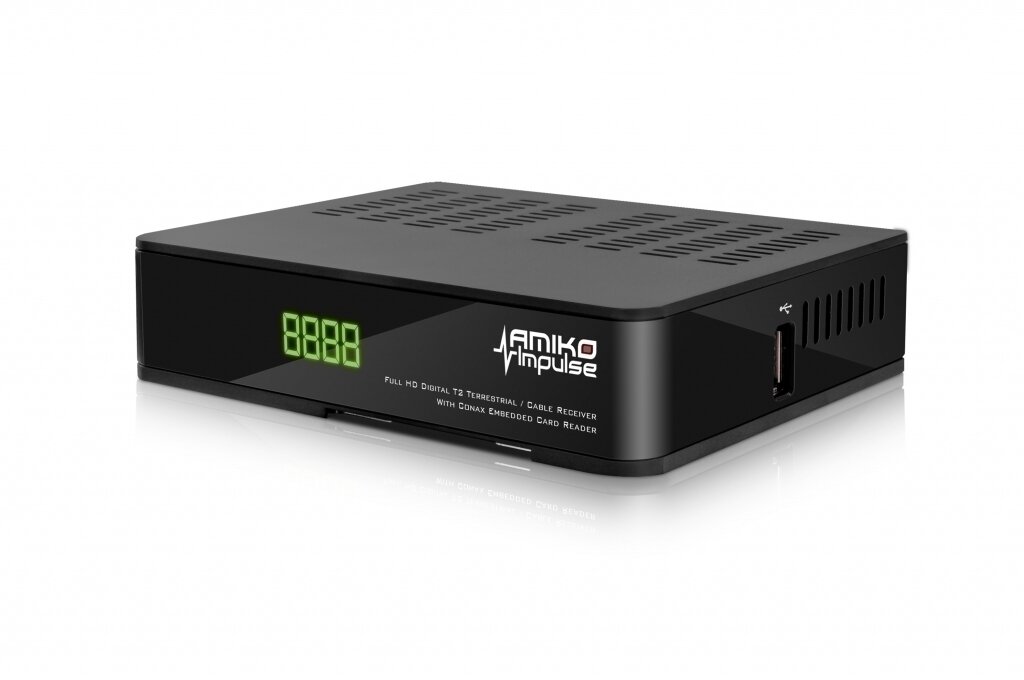

 Amiko, FULL HD DIGITAL T2 TERRESTRIAL / CABLE RECEIVER WITH CONAX EMBEDDED CARD READER

  • One Conax Embedded card reader
  • 6000 channels (TV and Radio) programmable

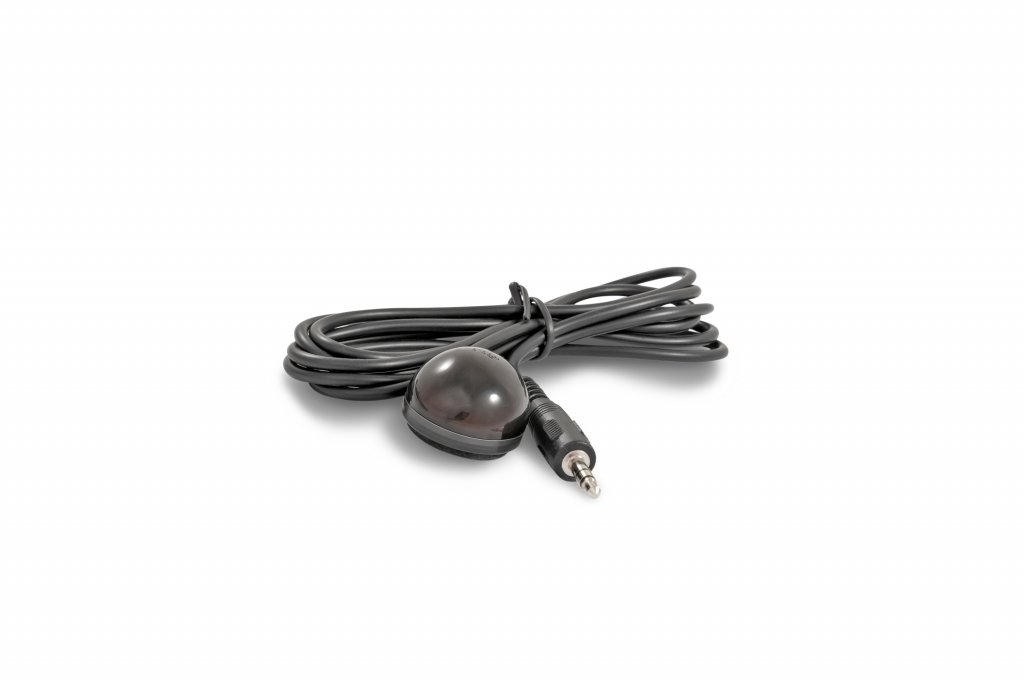

  • External IR Sensor (Included in the package)
  • Mountable on TV (Sticker included in the package)
  • One High Speed USB 2.0 Connection
  • USB WiFi Support (Ralink RT5370 chip only)
  • YouTube videos 3rd party content, subject to availability)
  • RSS Reader & Weather Forecast Functions (USB WiFi connection required)
  • DiSEqC 1.0, 1.1, 1.2 and USALS Compatible
  • Full HD (1080p) Output via HDMI
  • Channel Recording to External Storage Devices
  • Timeshift support
  • Channel Recording & Timeshifting Simulteniously (optional)
  • Channel switching time less than 1 second
  • True-color, User Friendly On-Screen Display (OSD)
  • Full Picture In Graphic (PIG) function
  • Electronic Program Guide (EPG) for on screen channel information
  • Subtitle supported
  • Teletext supported by VBI insertion and software emulation
  • Parental lock facility by channel and program event
  • Program and Channel information transfer from receiver to receiver
  • Exciting games embedded
  • Multi-Language support
  • Power Consumption in Stand-By: <0.5W
Tuner Type: DVB-T2 / DVB-C
Frequency Range: 48~862MHz
RF Input Level: -80dBm to -20dBm
Antenna power output: DC 5V at max 75mA, Overload protection
Demodulation: COFDM 1K, 2K, 4K, 8K normal and extended, 16K normal and extended, 32K normal and extended
Input Symbol Rate: 1.0 ~ 7.0Ms/s
Constellations: QPSK, 16QAM, 64QAM, 256QAM / Both rotated and non-rotated
Guard Intervals: 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128
Code Rate: 1/2, 3/5, 2/3, 3/4, 5/6

System Resources
Main Processor: Dual Core 494MHz / 337MHz
Flash Memory: 64MBits
DDR RAM: 1024Mbits
MPEG TS A/V Decoding
Transport Stream: MPEG-2, H.264
Input Rate: Max.120Mbit/s
Aspect Radio: 4:3, 16:9, Letter Box
Video Decoding: MPEG-2, MP@ML, MPEG-4 part 10/H264
Video Resolution: 720*480P/I, 720*576P/I, 1280*720p, 1920*1080i, 1920*1080p
Audio Decoding: MPEG-1 layer I/II, MPEG-2 layer II, Dolby digital
Audio Mode: Left / Right / Stereo/ Mono
Sampling Rate: 32, 44.1 and 48KHz

Power Supply
Input Voltage: 12V DC
Power Consumption: 18W Max
Stand-By Power Consumption: <0.5W

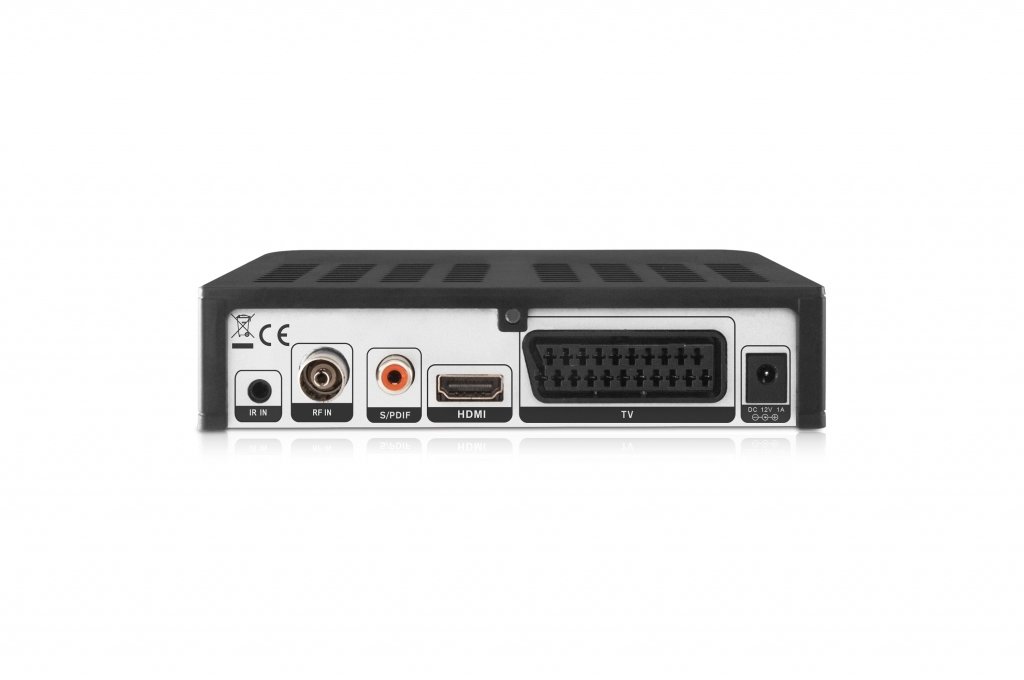

A/V & Data Input/Output
SCART: RGB/CVBS Video out / Audio L/R out
USB: One USB 2.0 slot
S/PDIF: Coaxial
HDMI: VER1.4, Type A
IR Port: Internal & Jack Type

Physical Specifications
Size[W*H*D]: 144mm*40mm*110mm
Net Weight: 0.25KG
Operation Temperature: 0°C~+45°C
Storage Temperature: -10°C~+70°C
Storage Humidity: 5%~95% RH (Non-Condensing)
