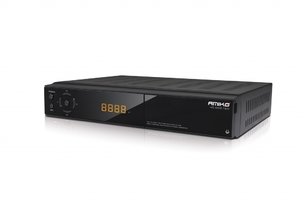

AMIKO HD8140 T2/C

Brand: Amiko

Choose packing size : CHOOSE BIGGER PACK SIZE TO GET THE LOWEST PRICE
Quantity:
unit/s
Price per unit:
Total price:
Price is excluding VAT !
€ 36,00

AMIKO HD8140 T2/C, FULL HD DIGITAL T2 TERRESTRIAL / CABLE RECEIVER WITH CONAX EMBEDDED CARD READER

  • Conax Embedded Card Reader
  • 5000 channels (TV and Radio) programmable
  • One High Speed USB 2.0 Connections
  • Ethernet & USB WiFi Support (Ralink RT5370 chip only)
  • YouTube videos
  • RSS Reader & Weather Forecast Functions (Ethernet or WiFi connection required)
  • S/PDIF for digital audio or Dolby Digital Bit-Stream output
  • Full HD (1080p) Output via HDMI
  • Channel Recording to External Storage Devices
  • Timeshift support
  • True-color, User Friendly On-Screen Display (OSD)
  • Full Picture In Graphic (PIG) function
  • Electronic Program Guide (EPG) for on screen channel information
  • Subtitle supported
  • Teletext supported by VBI insertion and software emulation
  • Parental lock facility by channel and program event
  • Program and Channel information transfer from receiver to receiver
  • Exciting games embedded
  • Multi-Language support
  • 4 Digit LED Display
  • RTC (Real-Time-Clock)
  • Power Consumption in Stand-By: <0.5W
Tuner & Demodulation
Tuner Type: DVB-T2 / DVB-C
Frequency Range: 48~862MHz
RF Input Level: -80dBm to -20dBm
Antenna power output: DC 5V at max 75mA, Overload protection
Demodulation: COFDM 1K, 2K, 4K, 8K normal and extended, 16K normal and extended, 32K normal and extended
Input Symbol Rate: 1.0 ~ 7.0Ms/s
Constellations: QPSK, 16QAM, 64QAM, 256QAM / Both rotated and non-rotated
Guard Intervals: 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128
Code Rate: 1/2, 3/5, 2/3, 3/4, 5/6

System Resources
Main Processor: 400MHz based CPU
Flash Memory: 64MBits
DDR RAM: 1024Mbits
Power Supply
Input Voltage: Free Voltage (100-250V AC 50/60Hz)
Power Consumption: 30W Max
Stand-By Power Consumption: <0.5W

A/V & Data Input/Output
TV-SCART: Video CVBS/RGB output,
Audio L/R output
S/PDIF: Coaxial, Digital Audio or Dolby Digital Bit Stream Output
RS-232C: Transfer rate 115.2Kbps,
9 pin D-sub Type
USB: One USB 2.0 slots
HDMI: VER1.3, Type A
Ethernet: 10M RJ45 (optional)

Physical Specifications
Size[W*H*D]: 220mm*40mm*160mm
Net Weight: 1.0KG
Operation Temperature: 0°C~+45°C
Storage Temperature: -10°C~+70°C
Storage Humidity: 5%~95% RH (Non-Condensing)
