Receivers DVB-S/T/C Satellite receivers Optibox Evo enfinity Mini

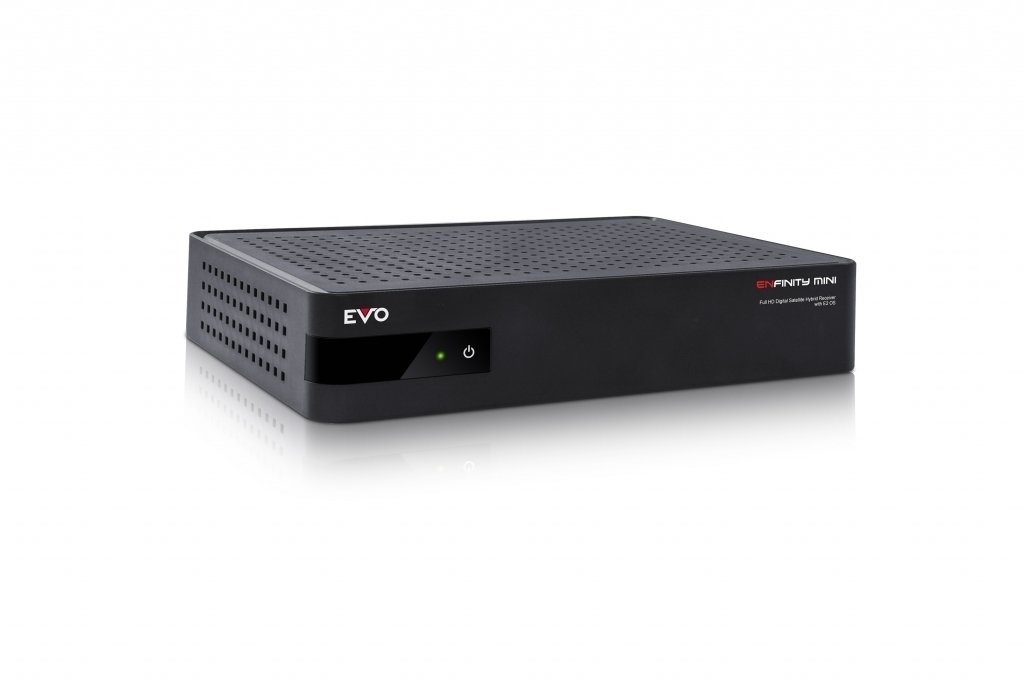

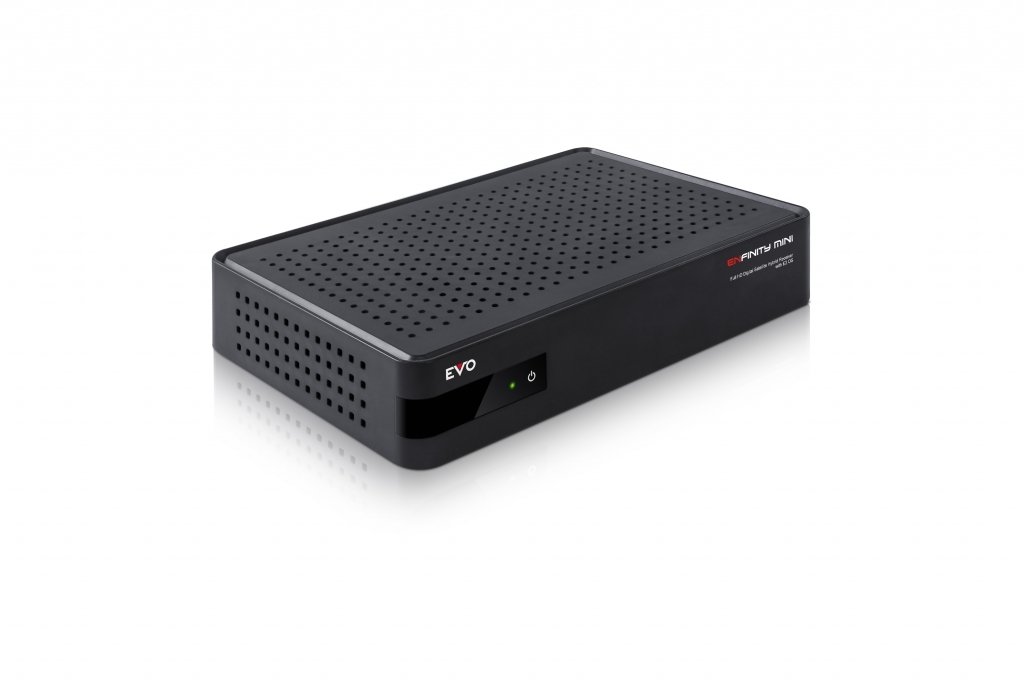

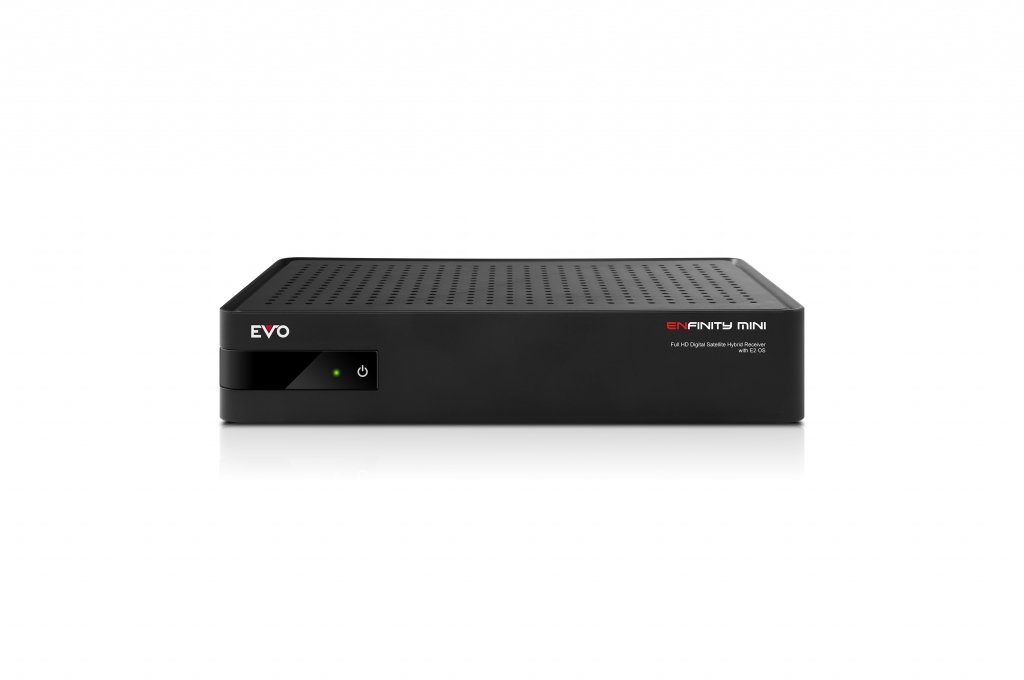

Optibox Evo enfinity Mini

Brand: OPTIBOX

Choose packing size : CHOOSE BIGGER PACK SIZE TO GET THE LOWEST PRICE
Price per unit:
Total price:
Price is excluding VAT !
€ 74,75

  • Full HD Digital Satellite receiver
  • E2 Operating System - Linux Embedded
  • With S2 Satellite Tuner
  • Processor - 742 Mhz (2000 DMIPS)
  • Fast and Easy Installation with the Installation Wizard
  • One card reader slot
  • 3D Ready (3D compliant Enigma 2 image installed is required)
  • Two High Speed USB2.0 connections
  • Multimedia Playback (MKV, AVI, MPG, MP4, TS, WMA, MP3 and more...)
  • TimeShifting - Stop live television (Hard drive required)
  • YouTube videos, Internet Radios and much more...*
  • Internet Streaming TV and Radio support*
  • Ethernet Connection and WiFi / 3G dongle support*
  • Easily expandable with addons and plugins
  • Live Streaming through network*
  • Remote Management through HTTP* / Telnet / SSH / FTP...
  • Media Playback and Recording via local network*
  • External USB DVD drive support*
  • Electronic Program Guide (EPG)
  • Multi-Satellite Controlled with DiSEqC1.0, 1.1, 1.2 and USALS
  • Automatic DiSEqC detection
  • High Resolution Graphic User Interface (GUI)
  • Customizable apperiance with Skins
  • (10/100M) Ethernet connetion
  • Multi-Language - Audio / Teletext / Subtitle - support
  • Easy Software Upgrades through the Internet / USB
  • Full HD HDMI 1.4 Connection
  • Dolby Digital Bit-Stream out via HDMI
  • DC 12V Power Supply

Technical Specifications

Tuner & Demodulation
Tuner Type: 1 DVB-S/S2
Input Connector: F-type, Connector, Female
Signal Level: -65 to -25 dBm
LNB Power & Polarization: Vertical: +13V/+14V, Horizontal: +18V/+19V
Current: Max. 500mA Overload Protection
22KHz Tone Frequency: 22±1KHz
DiSEqC Control: Version 1.0, 1.1, 1.2, USALS
Demodulation: QPSK, 8PSK
Input Symbol Rate: 2-45 Mbps
FEC: 1/2, 2/3, 3/4, 5/6, 7/8 and Auto

MPEG TS A/V DECODING
Transport Stream: MPEG4, MPEG2
Profile Level: MPEG2 MP@HL, MPEG4 AVC
MP@L3, MP@L4, HP@L4
Video Resolution: 576i, 576p, 720p, 1080i, 1080p
Aspect Ratio: 4:3, 16:9, Letterbox, Pan&Scan, Zoom
Audio Decoding: MPEG1 L1/2, MPEG2 L2, AC3,
Dolby Digital plus, PCM with
decoded stereo, AAC Stereo
Audio Mode: Mono, Left, Right, Stereo, Dolby Digital    System Resources
CPU: 2000 DMIPS 742MHz
Flash Memory: NOR 4MB, NAND 256 MB
DDR: 1EA x 512MB DDR3

Power Supply
Input Voltage: 12V, 2A
Type: DC power adapter
Power Consumption: Max. 30W
10W MAX (Active Standby)
0.5W MAX (Passive Standby)

A/V & Data Input / Output
USB: 2 ports (USB2.0)
HDMI: v1.4
Ethernet: 10/100M

Physical Specifications
Size[W*H*D]: 198 x 140 x 40mm
Operating Temperature: +5ºC ~ +50ºC
Storage Temperature: -40ºC ~ +65ºC
