Formuler S Mini

Brand: Formuler

Choose packing size : CHOOSE BIGGER PACK SIZE TO GET THE LOWEST PRICE
Quantity:
Unit/s
Price per unit:
Total price:
Price is excluding VAT !
€ 65,00

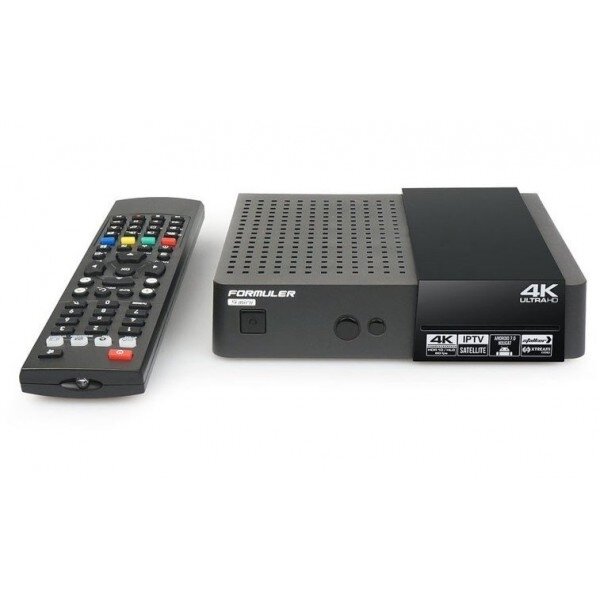

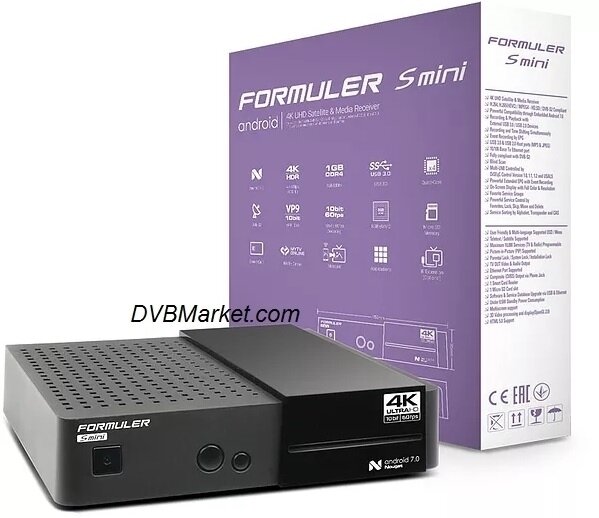

Formuler S Mini Android Receivers with DVB-S2 tuner is a compact and potent 4K UHD media receiver as well as a powerful DVB decoding and with OTT-IPTV quality streaming.

This slim elegant design receiver also comes with built-in Wi-Fi. All this supported by Android 7.0 operating system.

Main Features :
- Android 7.0
- Satellite and IPTV in 4K UHD
- HEVC H265 decoding
- 4K UltraHD 10-bit 60fps
- Slim and compact
- CPU / Chipset: Hisilicon chipset 1300 MHz
- Flash 4Gb + 1 GBytes RAM (DDR4)
- 1 x SAT DVB-S2 Tuners
- 1 x Smart card Slot
- 1 x USB 2.0 , 1 x USB 3.0 and MicroSD card slot (for Video file Playback & MP3 player & JPEG viewer)
- Ethernet port and internal WiFi antenna

Technical Specifications :

- Tuner & Channel Decoder(Satellite) :
* Input Connector - F-type, IEC 169-24, Female
* Frequency Range - 950MHz ~ 2150MHz
* Input Impedance - 75 Ohms unbalanced
* Signal Level - -65 to -25dBm
* LNB Power - 13/18VDC, max. 400mA
* 22KHz Tone - (22±2) KHz, (0.6±0.2)V
* DiSCqC Control - V1.0/1.2/USALS Compatible
* Demodulation - QPSK / 8PSK
* Input Symbol Rate     - 1 ~ 45 Ms/s (QPSK of DVB-S) ; 1 ~ 45 Ms/s (QPSK of DVB-S2)
* FEC Decoder - 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 and 7/8 (QPSK) 3/5, 2/3, 3/4, 5/6, 8/9 and 9/10 (8PSK)

- A/V Decoding :
* Video Decoding - H.264/AVC BP/MP/HP@level 5.1; H.264/AVC MVC; H.265/HEVC Main/Main 10 profile@level 5.1 high-tier; AVS baseline profile@level 6.0, AVS-P16 (AVS+); VC-1 SP@ML, MP@HL, AP@levels 0−3; Maximum 4K x 2K@60 fps 10-bit VP9 decoding
* Input Rate -  Max. 108Mbit/s
* Video Formats -  4:3 Letter Box, 4:3 PanScan, 16 : 9
* Video Resolution - 720 x 576i, 720 x 480i, 1280 x 720p; 1920 x 1080i, 1920 x 1080p, 2160p(4K x 2K)
* Audio Decoding - MPEG-1 Layer 1,2; AAC-LC and HE AAC V1/V2 decoding
* Audio Mode -  Stereo / Joint, Stereo / Mono
* Sampling Rate - 8khz to 192khz sampling rate

- Main System :
* Main Processor - Hisilicon chipset
* Memory - eMMC : 4 GBytes;  SDRAM : 1 GBytes (DDR4)

- Audio / Video and Data IN/OUT :
* TV OUT -Video & Audio Output
* USB - USB3.0, USB2.0
* ETHERNET - RJ45 connector, 10/100M Base
* WiFi - 802.11 b/g/n / with internal antenna
* Phone Jack - CVBS Video Output, Audio L, R Output
* Micro SD Card - Micro SD Card Slot
* IR Extension - Removable IR extension
* S/PDIF - OPTIC

- Front Panel :
* Slot : 1 Smart Card Slot
* Buttons - 1 Buttons(Standby)
* Indicators - 1 Dual Color LED(Standby, Remote)

- Power Supply :
* Input Voltage - AC 100 ~ 240V, 50/60Hz
* Type - Adaptor
* Power Consumption - Max. 30W
* Standby Power - Max. 0.5W (Ultra low power)
* Protection - Separate Internal Fuse & Lightning protection

Shipping worldwide from EU warehouse, just choose your country in next step and buy !
