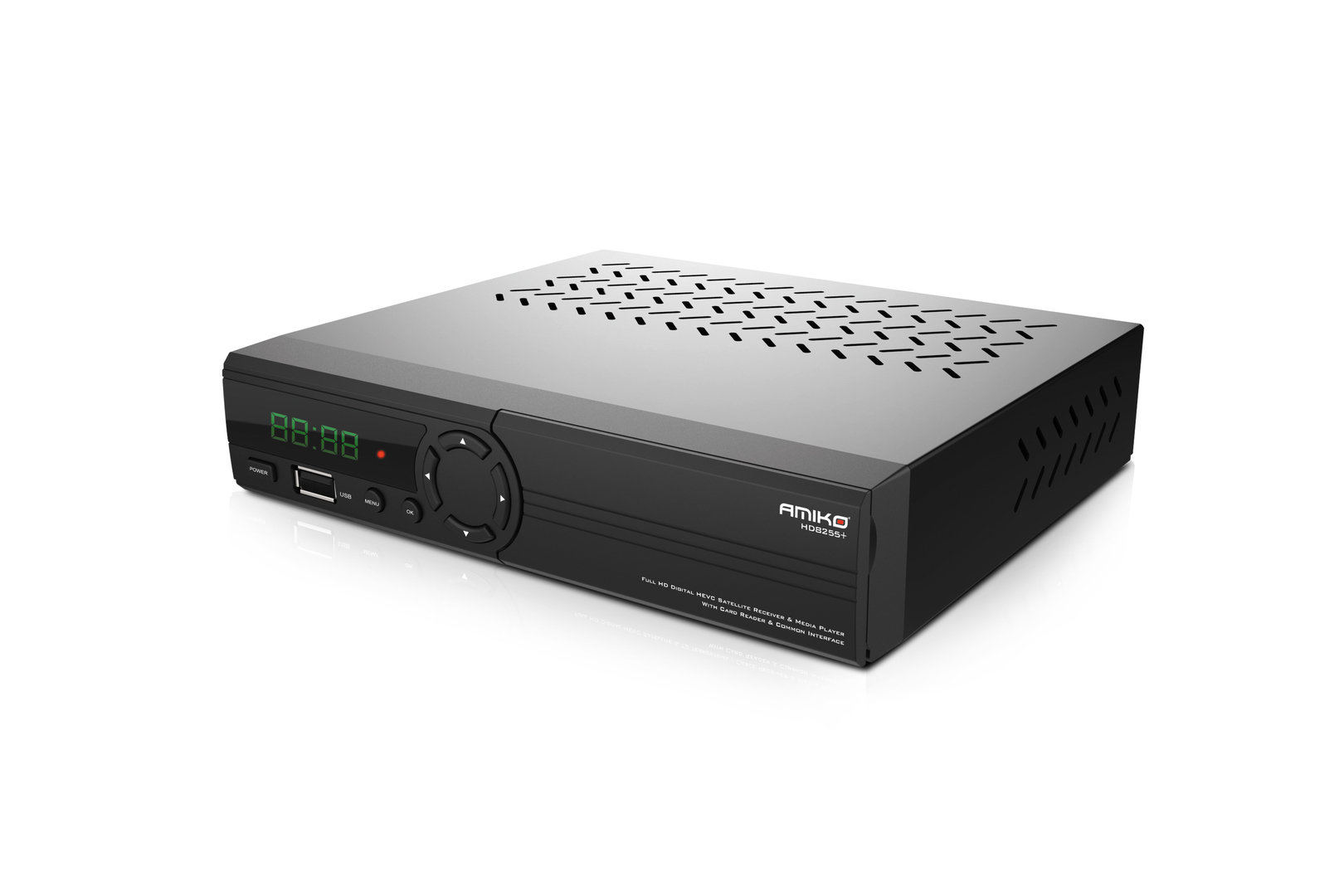

Amiko HD 8255+ S2 CI HEVC
Brand: Amiko
Rating : Not Rated till now ! - Rate the product now or check reviews from customers
Plug version (if using)
EU
US/CA
UK
Choose packing size :
CHOOSE BIGGER PACK SIZE TO GET THE LOWEST PRICE
| Price per unit: | |
|---|---|
| Total price: Price is excluding VAT ! |
€ 42,00 |
| Check Shipping price |
Set up Watch Dog on this item here.
Interested in this product ?
- One Conax Embedded card reader
- One Common Interface slot
- HEVC decoding support
- 6000 channels (TV and Radio) programmable
- Two High Speed USB 2.0 Connections
- Ethernet Connection & USB WiFi Support (Ralink RT5370 chip only)
- RSS Reader & Weather Forecast Function
- Channel Recording to External Storage Devices (optional)
- Timeshift support
- Channel Recording & Timeshifting Simulteniously (optional)
- Channel switching time less than 1 second
- True-color, User Friendly On-Screen Display (OSD)
- Full Picture In Graphic (PIG) function
- Electronic Program Guide (EPG)
- Subtitle supported
- Teletext supported with VBI insertion
- Parental lock facility by channel and program event
- Program and Channel information transfer from receiver to
- receiver
- Satellite Blind Scan & Fast Scansupport
- DiSEqC 1.0, 1.1, 1.2 and USALS Compatible
- Full HD (1080p) Output via HDMI
- Exciting games embedded
- Multi-Language support
- Software upgrade support via USB, Network, OTA, RS232
- Power Consumption in Stand-By: <0.5W
Tuner & Demodulation
- Tuner Type: DVB-S / DVB-S2
- Input Connector: F-type, Connector, Female
- Signal Level: -65 to -25 dBm
- LNB Power & Polarization: Vertical: +13V/+14V,
- Horizontal: +18V/+19V
- Current: Max. 400mA (Overload Protection)
- 22KHz Tone Frequency: 22±1KHz
- DiSEqC Control: Version 1.0, 1.1, 1.2, USALS
- Demodulation: QPSK, 8PSK
- Input Symbol Rate: 2-45 Mbps,
- FEC: 1/2, 2/3, 3/4, 5/6, 7/8 and Auto
MPEG TS A/V Decoding
- Transport Stream: MPEG-2, H.264, H.265
- Input Rate: Max.120Mbit/s
- Aspect Radio: 4:3, 16:9, Letter Box
- Video Decoding: MPEG-4/H.265 SP@L3 to ASP@L5, AVC,
- HP@level 4.1, MP@level 4.1
- Video Resolution: 720*480P/I, 720*576P/I, 1280*720p,
- 1920*1080i, 1920*1080p
- Audio Decoding: MPEG-1/2,AAC-LC,HE-AAC,MP3,Dolby Digital
- Audio Mode: Left / Right / Stereo/ Mono
- Sampling Rate: 32, 44.1 and 48KHz
System Resources
- Main Processor: 800MHz CPU
- Flash Memory: 16MB
- DDR3 RAM: 256MB
Power Supply
- Input Voltage: 12VDC
- Power Consumption: 24W Max
- Stand-By Power Consumption: <0.5W

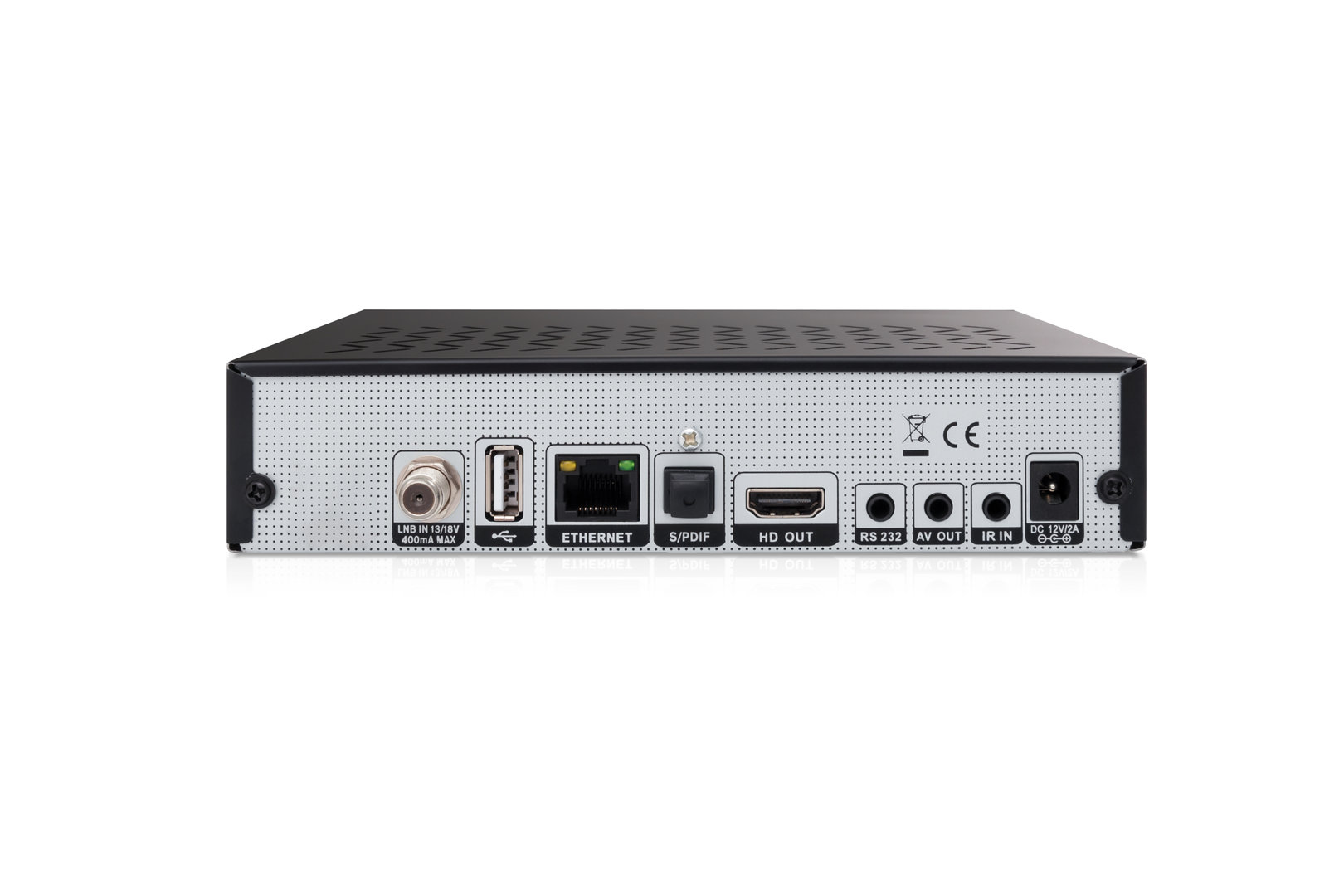

A/V & Data Input/Output
- RCA: Jack-type, CVBS Video out, L&R Audio out
- RS-232C: Jack-type, Transfer rate 115.2Kbps, 9 pin D-sub
- Type
- USB: Two USB 2.0 slots
- S/PDIF: Optical
- HDMI: VER1.4, Type A
- Ethernet: 10/100M RJ45
- IR IN: Jack-type, External IR sensor connection
Physical Specifications
- Size[W*H*D]: 180mm x 43mm x 155mm
- Net Weight: 1.0KG
- Operation Temperature: 0°C~+45°C
- Storage Temperature: -10°C~+70°C
- Storage Humidity: 5%~95% RH (Non-Condensing)
