S/T/C meters Schwaiger SF 80 011

Schwaiger SF 80 011

Brand: Schwaiger

Choose packing size : CHOOSE BIGGER PACK SIZE TO GET THE LOWEST PRICE
Quantity:
unit/s
Price per unit:
Total price:
Price is excluding VAT !
€ 15,60

SF 80 011

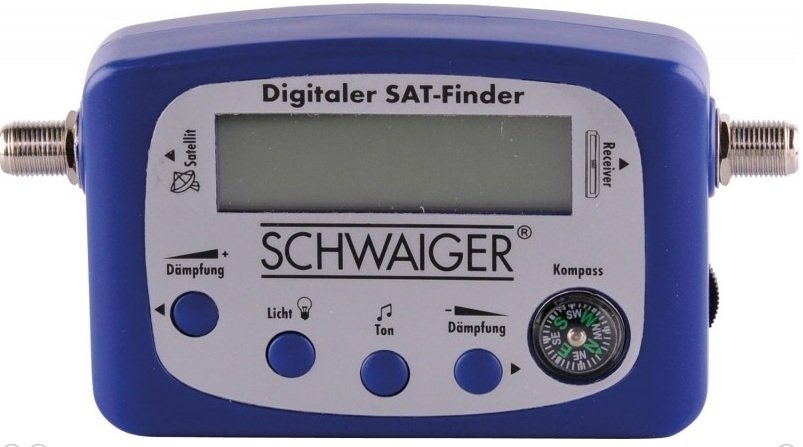

LCD SAT Finder with compass and acoustic level indicator.

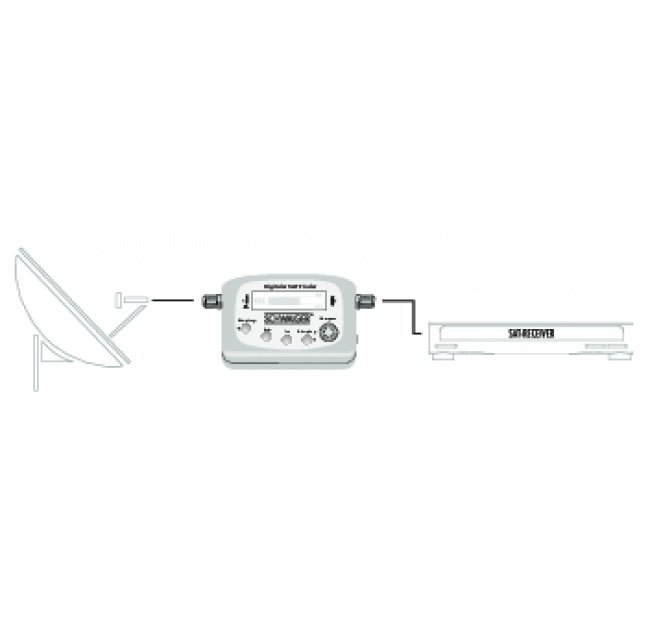

This SCHWAIGER® SAT finder allows for fast and precise alignment of a satellite system, especially ASTRA and EUTELSAT. The device is easy to operate and ideal for home use. An illuminated display and an acoustic signal indicator allow for fast alignment of the satellite system. Thanks to the optional signal attenuation, even LNBs with a very high output level can securely be set to maximum.

  • fast and precise alignment of satellite offset antennas
  • especially suitable for ASTRA and EUTELSAT
  • compass for precise horizontal alignment
  • power supply through the connected receiver
  • F connections

TECHNICAL SPECIFICATIONS

Dimensions (height)   100 mm
(width)    24 mm
(depth)    67 mm
Power supply 12 - 20 V
Transmission loss < 3 dB (typical)
Connections (input) 1 x F jack
Connections (output) 1 x F jack
Frequency range 950 - 2150 MHz
Material of product plastic
Power consumption    (max.) 110 mA
Display LED (with blue backlight)
input impedance 75 Ohm
max. entry level - 10 dBm
min. entry level - 40 dBm
SKU SF 80 011
