SF 70 221

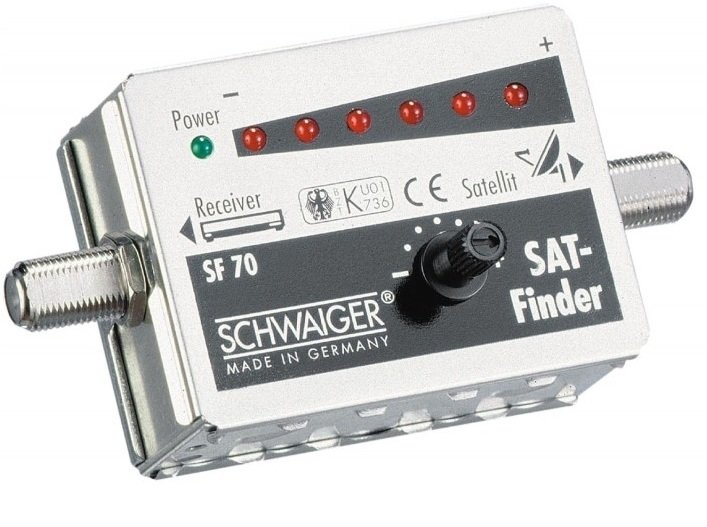

SAT Finder (6 + 1 LED)
This SAT finder SCHWAIGER® a satellite system can quickly and accurately align. Shown 6 LEDs each reception level and a green LED, the operational readiness of the SAT at Finders.

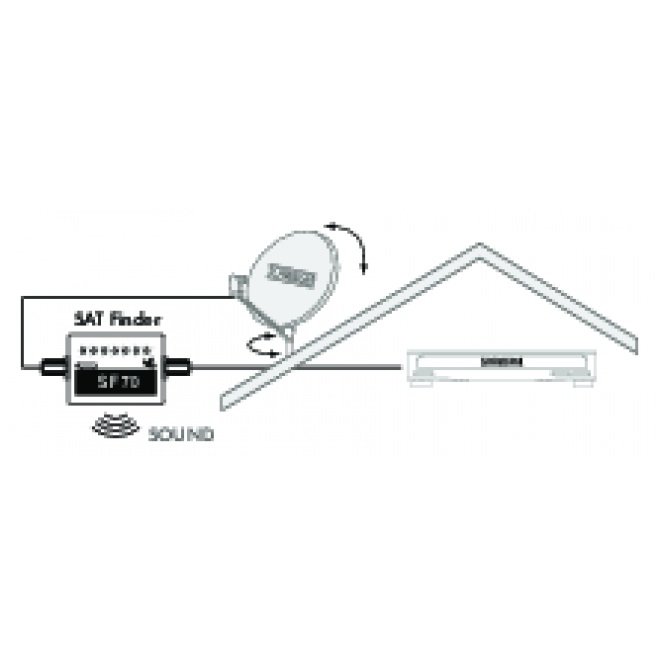

- fast and precise alignment of satellite offset antennas
- especially suitable for ASTRA and EUTELSAT
- clear display of all data due to bright LEDs
- acoustic field strength signal
- light-emitting diodes with broad measurement range
- power supply through the connected receiver
- F connections
TECHNICAL SPECIFICATIONS
| Dimensions | (height) 49mm (width) 93 mm (depth) 30mm |
| Power supply | 12 - 20 V DC 10 mA |
| Transmission loss | < 8 dB |
| Connections | 2 x F jack |
| Frequency range | 950 - 2150 MHz |
| Display | 7 LED |
| SKU | SF 70 221 |
