S/T/C meters promax TV EXPLORER HD ISDB-T

promax TV EXPLORER HD ISDB-T

Brand: Promax

Choose packing size : CHOOSE BIGGER PACK SIZE TO GET THE LOWEST PRICE
Quantity:
unit/s
Price per unit:
Total price:
Price is excluding VAT !
€ 4 900,00

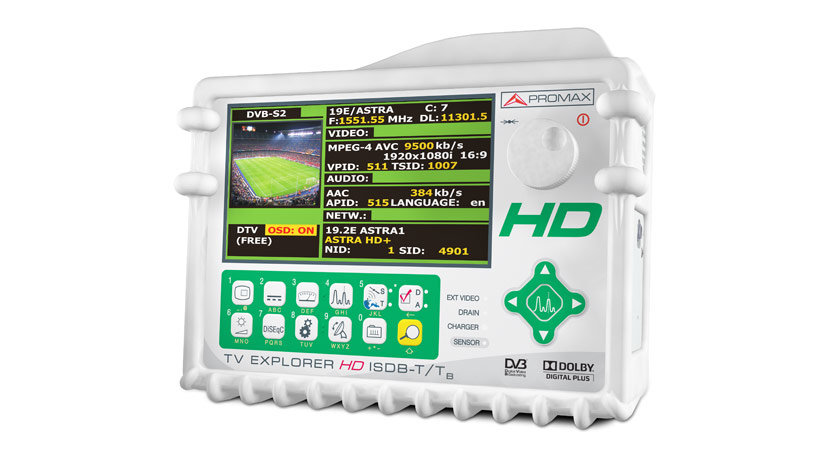

TV EXPLORER HD ISDB-T

The most advanced PROMAX field strength meter. In addition to all features that are required by HDTV, includes Dolby Digital Plus and HE-AAC decoders, as well as full compatibility with DSS and ISDB-T/Tb (measurements and decoding).

  • Video decoding: MPEG-2 and MPEG-4 H.264
  • Audio decoding: Dolby Digital Plus, HE-AAC, AAC and MPEG-1/2
  • Video formats: SD (standard definition) and HD (high definition)
  • Video resolutions: 1080i, 720p and 576i
  • Screen formats: 16:9 and 4:3
  • HDMI interface
  • ISDB-T/Tb, DSS, DVB-C, QAM Annex A & B and DVB-S/S2
  • CAM module (Conditional Access) for encrypted channels
  • TS-ASI input and output
  • Constellation diagram
  • Dynamic echoes analysis

ADVANCED FUNCTIONS

- Channel Scan and Channel Table Creation (EXPLORER)
- Automatic identification of the signal type (AUTO ID)
- Constellation diagram for ISDB-T, DVB-C, DVB-S and DVB-S2
- Built-in spectrum analyser with direct access keys
- Datalogger for digital and analogue channels.
- SAT IF test (IF distribution network response for satellite band)
- Attenuation test function (signal distribution network response for terrestrial band)
- DiSEqC generator and LNB supply
- Audio and Video recording and playing
- Dynamic echoes analysys

TECHNICAL SPECIFICATIONS

FREQUENCY MARGIN From 5 to 1000 MHz and from 950 to 2150 MHz
VIDEO ISDB-T/Tb, DSS, DVB-S, DVB-S2, DVB-C Annex A & B
1080i, 720p, 576i
MPEG-2, MPEG-4 H.264
PAL M, N / NTSC M, N
16:9, 4:3
CONNECTIONS    SCART, HDMI, TS-ASI (input and output), USB, Common Interface
DIGITAL MEASUREMENTS     Power, CBER, VBER, MER, C/N, Noise margin, Link Margin, LBER, Wrong packets
DVB-S2 SIGNAL PARAMETERS    Symbol rate (QPSK) 1 to 45 Mbaud
Symbol rate (8PSK) 1 to 45 Mbaud
ANALOGUE MEASUREMENTS    Level, V/A, C/N, deviation, FM demodulation
