promax TV EXPLORER HD DTMB

Brand: Promax

Choose packing size : CHOOSE BIGGER PACK SIZE TO GET THE LOWEST PRICE
Quantity:
unit/s
Price per unit:
Total price:
Price is excluding VAT !
€ 4 900,00

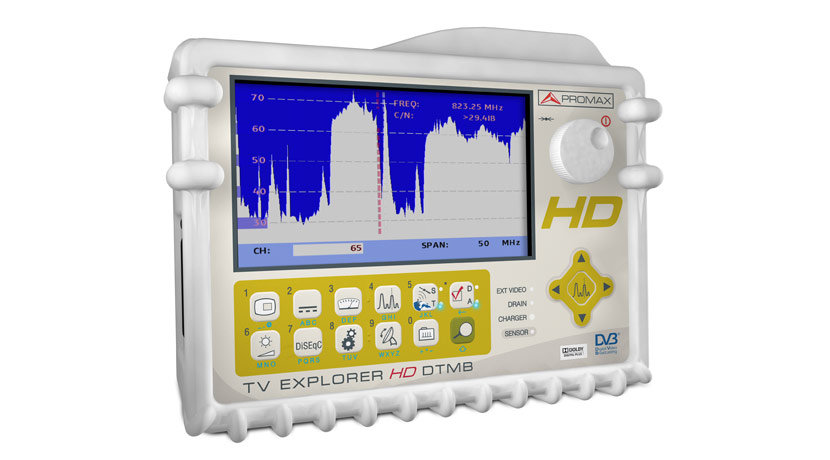

TV EXPLORER HD DTMB

This new jewel of the PROMAX range will become a reference in the industry for being the very first field strength meter of its kind to actually meet the requirements to be called a real HDTV instrument.

  • Video decoding: MPEG-2 and MPEG-4 H.264
  • Audio decoding: MPEG-1, MPEG-2 and AAC
  • Video formats: SD (standard definition) and HD (high definition)
  • Video resolutions: 1080i, 720p and 576i
  • Screen formats: 16:9 and 4:3
  • HDMI interface
  • DTMB, DVB-C and DVB-S/S2
  • CAM module (Conditional Access) for encrypted channels
  • TS-ASI input and output

ADVANCED FUNCTIONS

- Channel searching and channel tables generation (EXPLORER)
- Signal type automatic identifying (AUTO ID)
- Constellation diagram
- Echoes detection
- Built-in spectrum analyser with direct access keys
- Datalogger (measurements automatic acquisition and storage) for digital and analogue channels
- SAT IF test (IF distribution network response for satellite band)
- Attenuation test function (signal distribution network response for terrestrial band)
- DiSEqC generator and LNB supply
- Audio and Video recording and playing

TECHNICAL SPECIFICATIONS

VIDEO
  • DTMB, DVB-S, DVB-S2, DVB-C
  • 1080i, 720p, 576 i
  • MPEG-2, MPEG-4 H.264
  • PAL, NTSC, SECAM
  • M, N, B, G, I, D, K, L
  • 16:9, 4:3
CONNECTIONS  RF, SCART, HDMI, TO-ASI (input and output), USB, Common Interface
DIGITAL MEASUREMENTS     Power, CBER, VBER, MER, C/N, Link margin, Noise Margin
ANALOGUE MEASUREMENTS    Level, V/A, C/N, desviación, FM deviation and demodulation
