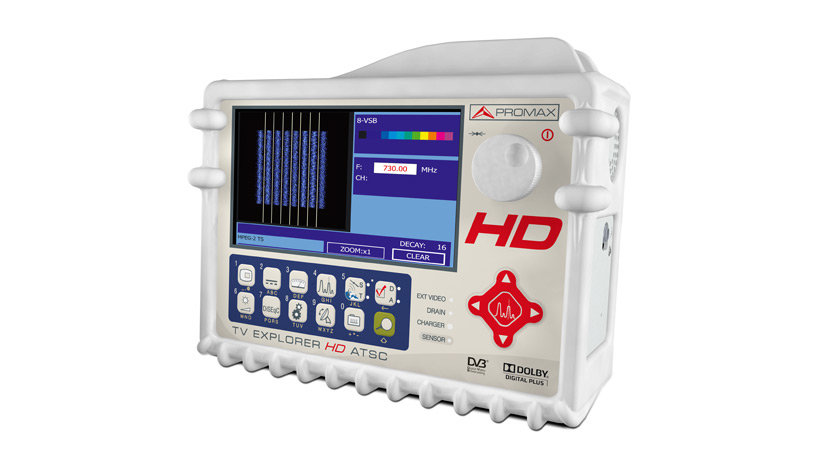

TV EXPLORER HD ATSC

This new jewel of the PROMAX range will become a reference in the industry for being the very first field strengh meter of its kind to actually meet the requirements to be called a real HDTV instrument.

  • Video decoding: MPEG-2 and MPEG-4 H.264
  • Audio decoding: MPEG-1, MPEG-2 and AAC
  • Video formats: SD (standard definition) and HD (high definition)
  • Video resolutions: 1080i, 720p and 576i
  • Screen formats: 16:9 and 4:3
  • HDMI interface
  • 8VSB, DVB-S2, DVB-S, DSS, QAM A/B
  • Up to 45 MSps

ADVANCED FUNCTIONS

- Channel searching and channel tables generation (EXPLORER)
- Signal type automatic identifying (AUTO ID)
- Up to 45 MSps for DVB-S and DVB-S2
- Constellation diagram for QAM, DVB-S/S2 and 8VSB
- Built-in spectrum analyser with direct access keys
- Datalogger (measurements automatic acquisition and storage) for digital and analogue channels
- SAT IF test (IF distribution network response for satellite band)
- Attenuation test function (signal distribution network response for terrestrial band)
- Audio and Video recording and playing

TECHNICAL SPECIFICATIONS

FREQUENCY MARGIN    From 5 to 1000 MHz and from 950 to 2150 MHz
VIDEO 8VSB, DVB-S2, DVB-S, DSS, QAM A/B
1080i, 720p, 576 i
MPEG-2, MPEG-4 H.264
PAL, NTSC, SECAM
M, N, B, G, I, D, K, L
16:9, 4:3
CONNECTIONS     RF, SCART, HDMI, TS-ASI (input and output), USB, Common Interface
DIGITAL MEASUREMENTS  Power, CBER, VBER, MER, C/N, Link margin, Noise Margin
DVB-S2 SIGNAL PARAMETERS     Symbol rate (QPSK) 1 to 45 Mbaud.
Symbol rate (8PSK) 1 to 45 Mbaud.
ANALOGUE MEASUREMENTS    Level, V/A, C/N, desviación, FM deviation and demodulation
