S/T/C meters promax TV EXPLORER HD+

promax TV EXPLORER HD+

Brand: Promax

Choose packing size : CHOOSE BIGGER PACK SIZE TO GET THE LOWEST PRICE
Quantity:
Price per unit:
Total price:
Price is excluding VAT !
€ 4 500,00

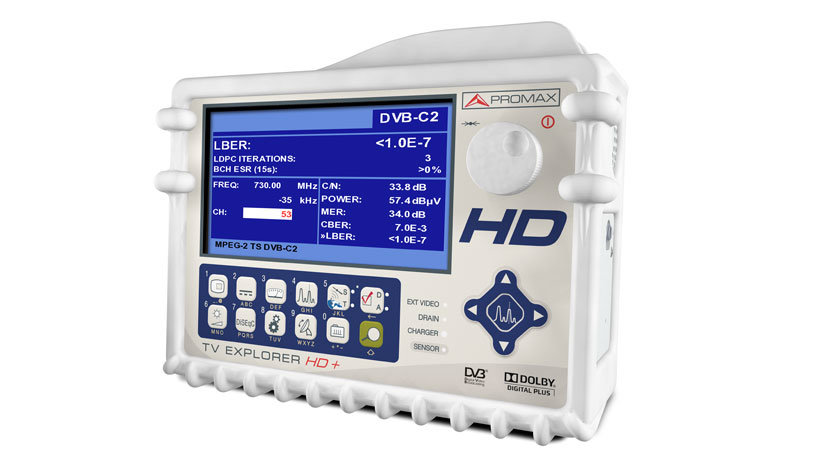

TV EXPLORER HD+

It includes all the advanced features required by the HDTV and also incorporates a Dolby Digital Plus decoder and total compatibility (measurements and image demodulation) with DVB-T2 (the second generation of the digital terrestrial television).

  • Video decoding: MPEG-2 and MPEG-4 H.264
  • Audio decoding: Dolby Digital Plus, MPEG-1, MPEG-2 and AAC
  • Video formats: SD (standard definition) and HD (high definition)
  • Video resolutions: 1080i, 720p and 576i
  • Screen formats: 16:9 and 4:3
  • HDMI interface
  • DVB-T2, DVB-T/H, DVB-C and DVB-S/S2
  • CAM module (Conditional Access) for encrypted channels
  • TS-ASI input and output

ADVANCED FUNCTIONS

- Dolby Digital Plus decoder
- Channel searching and channel tables generation (EXPLORER)
- Signal type automatic identifying (AUTO ID)
- Constellation diagram for DVB-T/H, DVB-C, DVB-S and DVB-S2
- Echoes analyser mode
- Built-in spectrum analyser with direct access keys
- Datalogger (measurements automatic acquisition and storage) for digital and analogue channels
- SAT IF test (IF distribution network response for satellite band)
- Attenuation test function (signal distribution network response for terrestrial band)
- DiSEqC generator and LNB supply
- Audio and Video recording and playing

TECHNICAL SPECIFICATIONS

FREQUENCY MARGIN From 5 to 1000 MHz and from 950 to 2150 MHz
VIDEO DVB-T2, DVB-T, DVB-H, DVB-S, DVB-S2, DVB-C
1080i, 720p, 576i i
MPEG-2, MPEG-4 H.264
PAL, NTSC, SECAM
M, N, B, G, I, D, K, L
16:9, 4:3
CONNECTIONS RF, SCART, HDMI, TS-ASI (input and output), USB, Common Interface
DIGITAL MEASUREMENTS Power, CBER, VBER, MER, C/N, Link margin, Noise Margin
DVB-S2 SIGNAL PARAMETERS Symbol rate (QPSK) 1 to 45 Mbaud.
Symbol rate (8PSK) 1 to 45 Mbaud.
ANALOGUE MEASUREMENTS Level, V/A, C/N, desviación, FM deviation and demodulation
