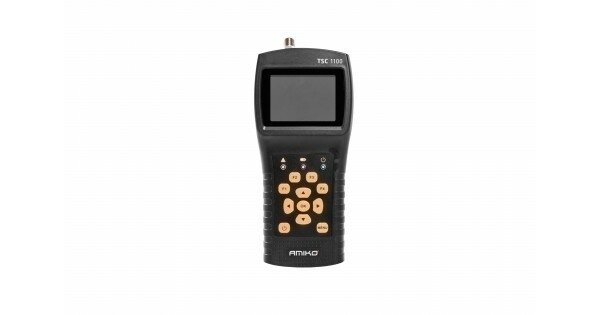

Amiko TSC 1100 new measure Instrument from Amiko

DVBS/DVBS2/DVBT/DVBT2/DVBC/DVBC2/ATV

LNB short-circuit protection and indicator.

Extremely fast and accurate with high sensitivity.400*360 color LCD displayDatabase editable by user easily.

Signal lock audible notification.Database can be edited on PC and downloaded by USB port.Ultra-long standby, low power consumption.Fast charging Li-ion battery can last around 3 hours

Specifications
DVB-T

Bit Error Rate (BER) CBER (before Viterbi): 1E-7 - 1E-3
VBER (before Reed Solomon): 1E-7 - 1E-3
Frequency range: 42-1005MHz
Power level: 30-100 dBμV, +/- 2dB
MER: 5 - 35 dB, +/- 0.5 dB
Bandwidth: 6 MHz, 7 MHz, 8 MHz
FFT type: 2k, 8k
Constellation: QPSK, 16QAM, 64QAM
Viterbi Speed: 1/2, 2/3, 3/4, 5/6, 7/8
Guard interval: automatic
Spectrum inversion: auto

DVB-T2 / T2
Lite Bit Error Rate (BER) CBER (before LDPC): 1E-7 - 1E-3
LBER (before BCH): 1E-9 - 1E-5
Frequency range: 42-1005MHz
Power level: 30-100 dBμV, +/- 2dB
Modulation Error Rate (MER): 5 - 35dB, +/- 0.5dB
Bandwidth: 1.7 MHz, 5 MHz, 6 MHz, 7 MHz, 8 MHz
Mode: SISO, MISO, PLP single or multiple
FFT type: 1k, 2k, 4k, 8k, 16k, 32k + extended bandwidth
Constellation: QPSK, 16QAM, 64QAM, 256QAM
Viterbi Speed: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 1/3, 2/5
Guard Interval: automatic
Spectrum inversion: auto

DVB-C
Bit Error Rate (BER) BER (for Reed Solomon): 1E-7 - 1E-3
PER (package error rate): 1E-6 - 1E-2
Frequency range: 42-1005MHz
Power level: 35-100 dBμV, +/- 2dB
MER: 20 - 40 dB, +/- 0.5 dB
Symbol rate: 1.7 to 7.2 Msym / s
Constellation: 16QAM, 32QAM, 64QAM, 128QAM, 256QAM
Spectrum: auto inversion

DVB-C2
Bit Error Rate (BER) CBER (before LDPC): 1E-7 - 1E-3
LBER (before BCH): 1E-9 - 1E-5
Frequency range: 42-1005MHz
Power level: 30-100 dBμV, +/- 2dB
MER: 5 - 35 dB, +/- 0.5 dB
Bandwidth: 6 MHz, 8 MHz
FFT type: 4k
Constellation: 16QAM, 64QAM, 256QAM, 1024QAM, 4096QAM
Viterbi Speed: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
Guard interval: automatic
Spectrum inversion: auto

DVB-S
Bit Error: Rate (BER)
CBER (before Viterbi): 1E-7 - 1E-3
VBER (before Reed Solomon): 1E-7– 1E-3
Frequency range: 950-2150 MHz
Power level: 35-100 dBμV, +/- 3dB
MER: 0 - 20 dB, +/- 0.5 dB
Symbol rate: 1 Msym / s to 45 Msym / s
Constellation: QPSK
Viterbi speed 1/2, 2/3, 3/4, 5/6, 6/7, 7/8
Spectrum inversion: auto
