S/T/C meters Amiko Multitracker 2

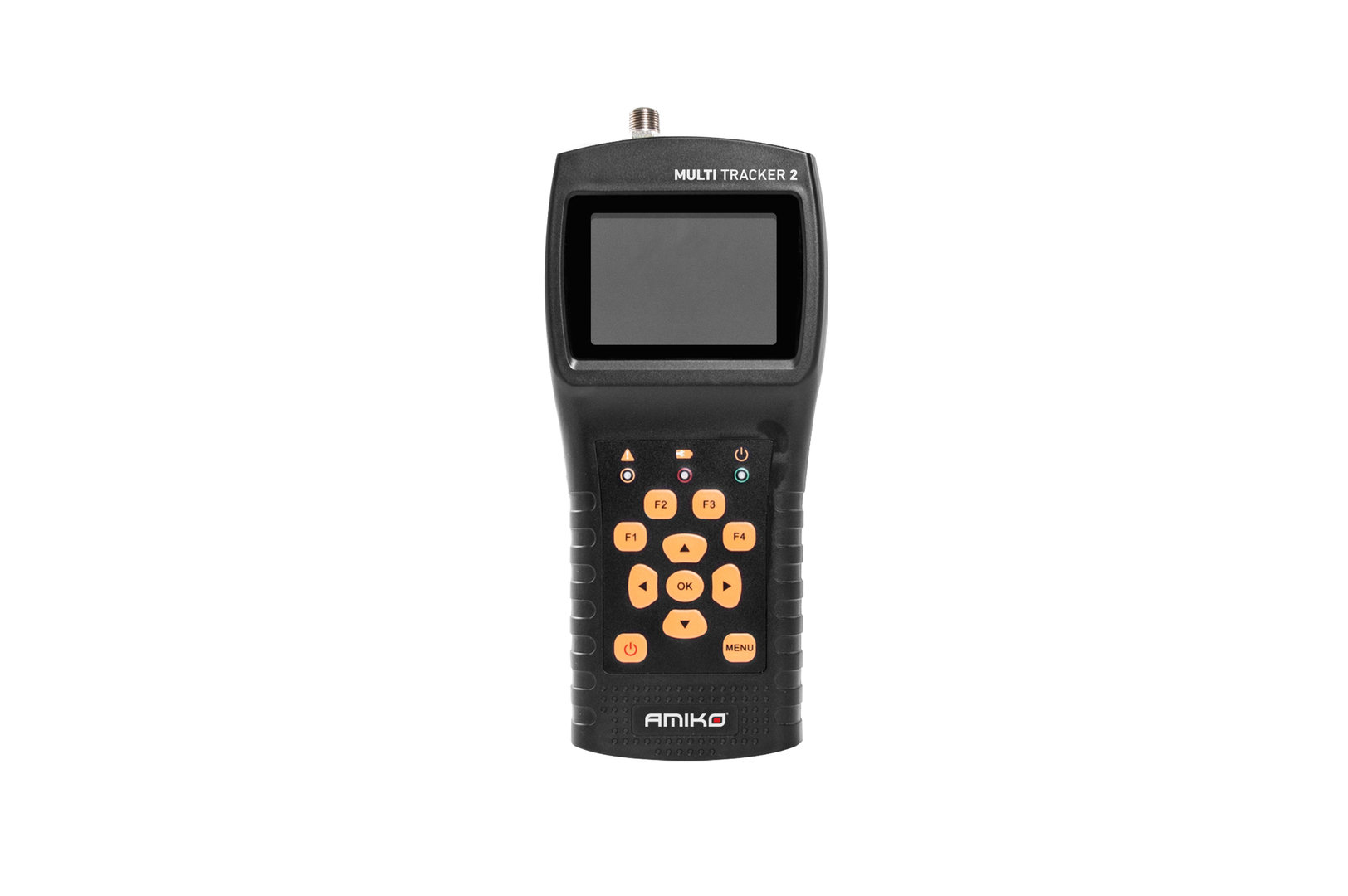

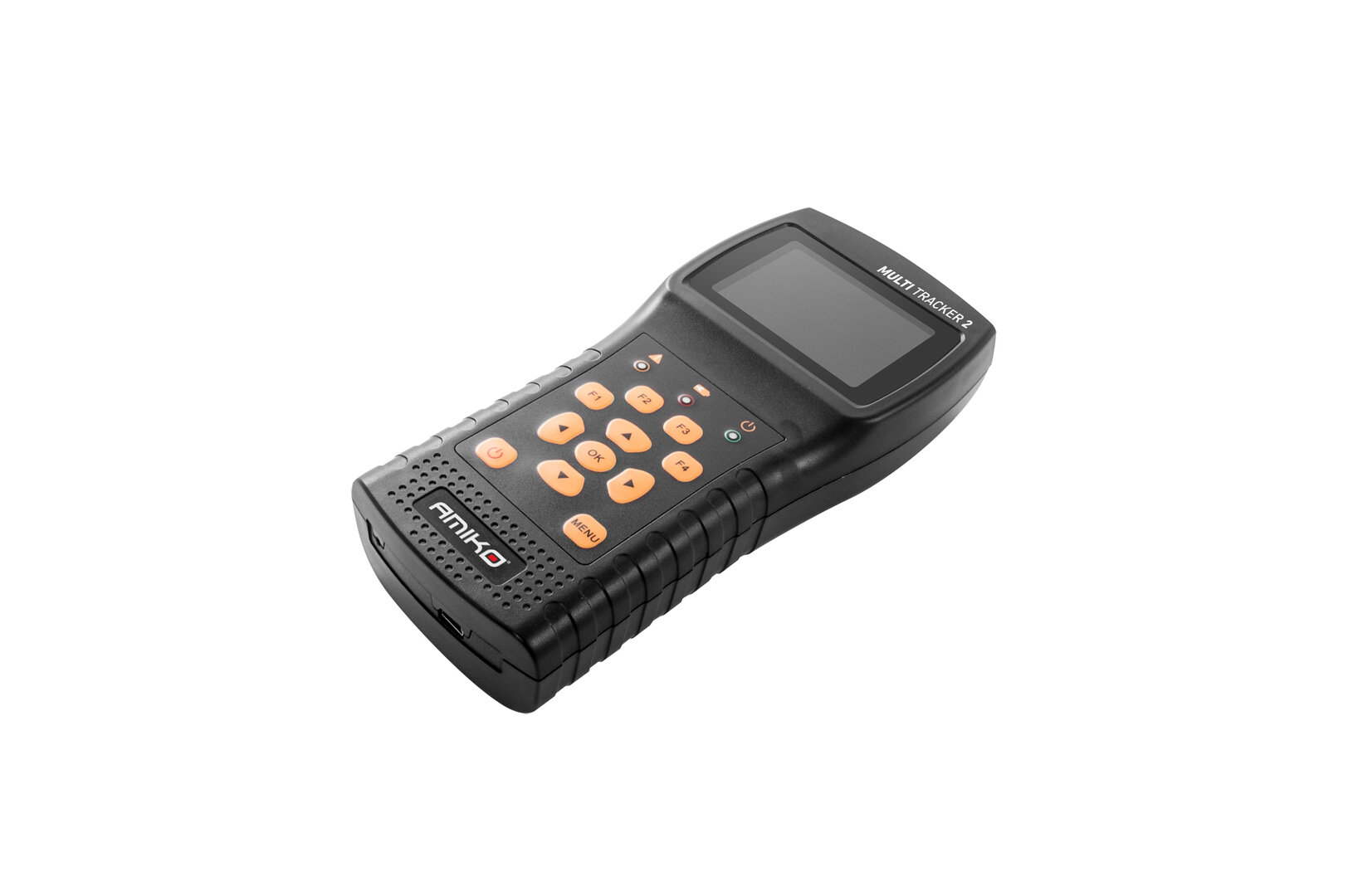

Amiko Multitracker 2

Brand: Amiko

Rating : Not Rated till now !  - Rate the product now or check reviews from customers

Plug version (if using)
EU US/CA UK

Choose packing size : CHOOSE BIGGER PACK SIZE TO GET THE LOWEST PRICE
Price per unit:
Total price:
Price is excluding VAT !
€ 87,00
Check Shipping price

Add to the Favourites list

Currently not available, Out of stock
   Set up Watch Dog on this item here.

Interested in this product ?


Amiko Multitracker 2 (S2+T2C) from DVBMarket is best choice for customers which are searching for cheap DVB-S/S2 Satellite Meter with T2C
Its SAT/T2 MULTIMETER with Colour LCD Display, built in COMPASS, SATELLITE LOCATOR

DVB-S / S2 / T / T2 / C Signals supported

320x240px color LCD display with controllable backlight

Easily editable database

Satellite Angle calculation (Azimuth & Elevation)

Satellite Locator

Real-Time angle calculation (Satellite)

Built-in compass

Signal lock audible notification: On/Off

DiSEqC support: 1.0, 1.1, 1.2 & USALS

Easy firmware upgrades via USB

Easy database updates vi PC tool over USB

Fast charging Li-ion battery - Up to 3 hours of on time

DC 12V power supply

Tuner & Demodulation

Satellite

Demodulation: QPSK, 8PSK, 16APSK, 32APSK

Code Rate: 1/2,1/3,1/4,2/3,2/5,3/4,1/2,3/5,5/6,7/8,8/9,9/10

Symbol Rate: 1~45MSPS

Input Frequency: 950-2150MHz

Input Impedance: 75Ohms

Min. Level In: 35dBuV (noise)

Max Level In: 90dBuV

LNB Power: 13V Vertical, 18V Horizontal (300mA)

Bandwidth: C/Ku-band (selectable)

DiSEqC support: 1.0, 1.1, 1.2 & USALS

Terrestrial

DVB-T:

Carriers: 2k, 4k, 8k

Guard Interval: 1/4, 1/8, 1/16, 1/32

Code Rate: 1/2, 2/3, 3/4, 5/6, 7/8

Modulation: QPSK,16-QAM,64-QAM

Bandwidth: 6, 7 and 8 MHz

DVB-T2:

Carriers: 1k, 2k, 4k, 8k, 8k+E, 16k, 16k+EXT, 32k,32k+EXT

Guard Interval: 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128

Code Rate: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6

Modulation: QPSK, 16QAM, 64QAM, 256QAM

Bandwidth: 6,7 and 8 MHz

PLP Mode: Single / Multiple

PLP ID: 0-255 Tuner & Demodulation

Cable

Frequency range: 44MHz ~ 870MHz

Symbol rate: 1MS/S ~ 7.9MS/S

QAM mode: 16 / 32 / 64 / 128 / 256 QAM

Input RF level range: 30dBμV ~ 100dB μV

SNR: 20dB ~ 40dB, + 2dB

BER: 1.0E-3 ~ 1.0E-9

Power

Power Supply: 100-240V (50/60Hz) AC in / 12V/1200mA out

Fast Charging
