LNB's Relook LNBs Relook RE-T40

Relook RE-T40

Brand: Relook

Choose packing size : CHOOSE BIGGER PACK SIZE TO GET THE LOWEST PRICE
Price per unit:
Total price:
Price is excluding VAT !
€ 6,85

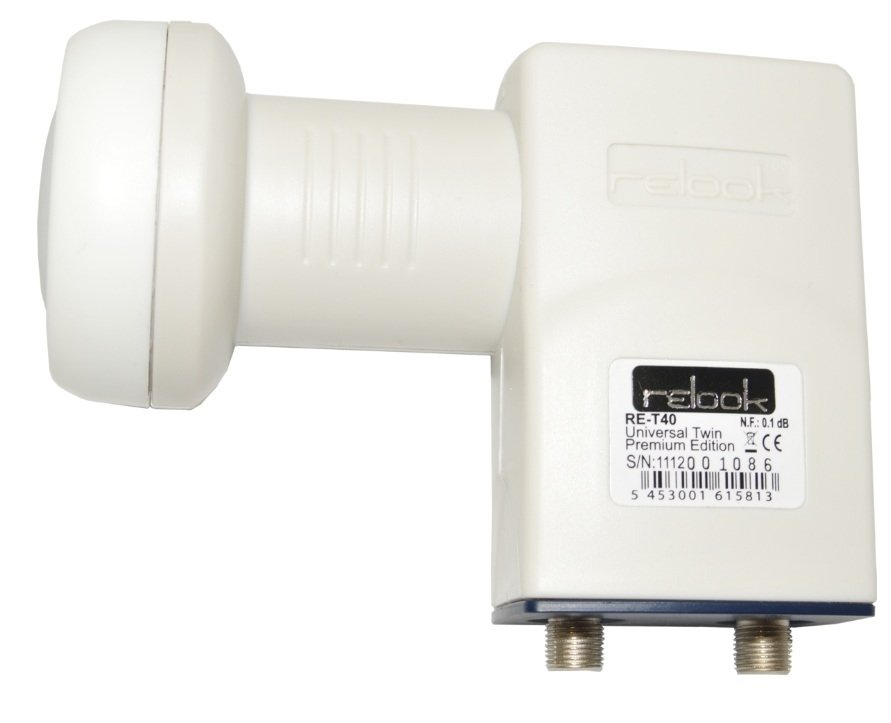

RE-T40

Universal Premium Twin LNB

Input Frequency Range Low Band : 10.7 ~ 11.7 GHz
High Band : 11.7 ~ 12.75 GHz
Output Frequency Range Low Band : 950 ~ 1950 MHz
High Band : 1100 ~ 2150 MHz
L.O. Frequency Low Band : 9750 MHz
High Band : 10600 MHz
L.O. Frequency Stability +/-1 MHz (Max)@ Room Temp
Local Oscillator Frequency Phase Noise -65 dBc/Hz @ 1KHz (Max.)
-85 dBc/Hz @ 10KHz (Max.)
-100 dBc/Hz @ 100KHz (Max.)
Noise Figure 0.1 dB (Typ.)
Conversion Gain 57 ~ 61 dB
Gain Flatness 26 MHz Bandwidth +/-0.5dB (Typ.)
Polarity Switching Voltage VERTICAL: 11.0 ~ 14.0 Vdc
HORIZONTAL: 16.0 ~ 20.0 Vdc
Band Switching Low Band: 0 kHz
High Band: 22 kHz (+/- 4 kHz)
Cross-Pol. Isolation 25 dB (Typ.)
mage Rejection 40 dB (Min.)
Current Consumption 120 mA (Typ.)
Output Connector Type 75 OHMS F-Female
Output Spurious <-60dBm
Operating Temperature Range -40°C ~ +65°C
Feed Length 42 mm
