Receivers DVB-S/T/C Amiko A6 COMBO OTT 4K

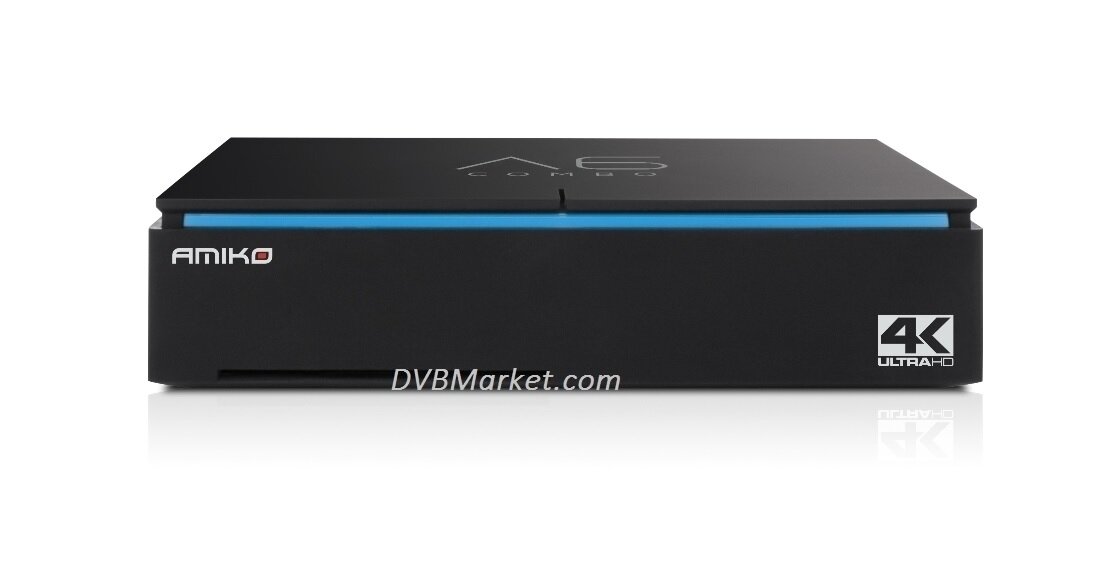

Amiko A6 COMBO OTT 4K

Brand: Amiko

Rating : Not Rated till now !  - Rate the product now or check reviews from customers

Plug version (if using)
EU US/CA UK

Choose packing size : CHOOSE BIGGER PACK SIZE TO GET THE LOWEST PRICE
Quantity:
Unit/s
Price per unit:
Total price:
Price is excluding VAT !
€ 91,00
Check Shipping price

Add to the Favourites list


Amiko A6 Combo S2+T2C OTT Receiver with Android 7.1 system

NEW OTT SERIES OF AMIKO IS HERE

Amiko A6 Combo- Android based OTT media player and receiver

  • 4k UHD Streaming Media Player
  • OS: Android 7.1 Nougat
  • CPU: QUAD CORE 64bit A53 up to 2GHZ
  • 2GB DDR RAM Memory
  • 8GB eMMC Flash
  • Support 4K@30FPS
  • HDR10 / HLG
  • WIFI integrated 2.4G Single Band
  • HD out
  • 2 x USB 2.0 Connections
  • S/PDIF Optical output
  • Micro SD Card Slot
  • Many apps available from store
  • MyTV OTT / IPTV
  • Easy installation
  • Low Power consumption in Stand-by mode



System Resources

Main CPU: 64bit Quad Core

2.0GHZ Processor

Main GPU: Octo-core Mali 450MP GPU

(600MHz)

DDR: 2GB DDR

EMMC: 8GB

Tuner & Demodulation

Tuner Type: DVB-S / DVB-S2

Input Connector: F-Type (Female)

Signal Level: -65 to -25 dBm

LNB Power: Vertical: +13V/14V,

Horizontal: +18V/19V

LNB Current: 400mA max (overload protection)

22kHz Tone: Frequency: 22 kHz ±4kHz

DiSEqC Control: Version 1.0, 1.1, 1.2, USALS

(Amplitude: 0.6 ±0.2V)

Demodulation: QPSK, 8PSK

Input Symbol Rate: 2-45Mbps, Convolution Code

Rate

FEC: 1/2, 2/3, 3/4, 5/6, 7/8, 1/4, 1/3,

2/5, 3/5, 4/5, 8/9, 9/10, auto

Tuner Type: DVB-T2 / DVB-T/ DVB-C

Frequency Range: 48~862MHz

RF Input Level: -80dBm to -20dBm

Antenna power output: DC 5V at max 75mA, Overload

protection

Demodulation: COFDM 1K, 2K, 4K, 8K, 16K,

32K normal and extended

Input Symbol Rate: 1.0 ~ 7.0Ms/s

Constellations: QPSK, 16QAM, 64QAM,

256QAM / Both rotated and

non-rotated

Guard Intervals: 1/4, 19/256, 1/8, 19/128, 1/16,

1/32, 1/128

Code Rate: 1/2, 3/5, 2/3, 3/4, 5/6


DVBMarket.com , Global Amiko resseler , Shipping to more then 150 countries and areas.
