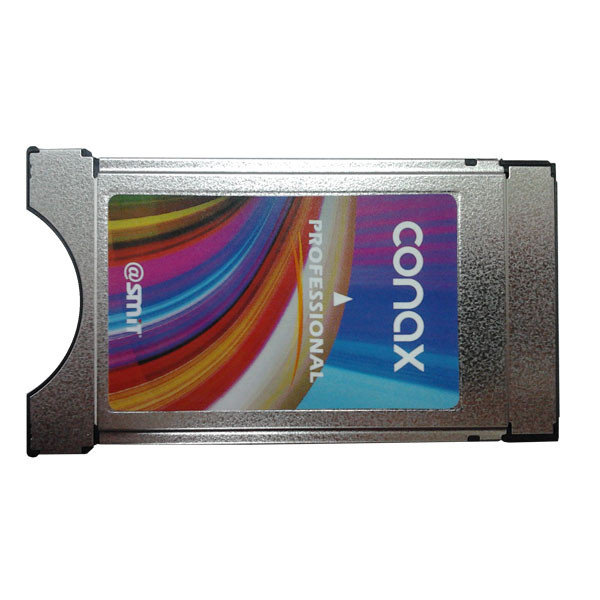

SMIT Conax PRO 2

Brand: Smit

Rating : Not Rated till now !  - Rate the product now or check reviews from customers

Plug version (if using)
EU US/CA UK

Choose packing size : CHOOSE BIGGER PACK SIZE TO GET THE LOWEST PRICE
Quantity:
unit/s
Price per unit:
Total price:
Price is excluding VAT !
€ 115,00
Check Shipping price

Add to the Favourites list


Professional Conax 2 ch CA module

Product description:

  • Dimensions: PCMCIA type II
  • Interface protocols of the host: In full compliance with DVB-CI Profile 1 protocol;
  • External interface of IC card: Build-in SmartCard reader, in compliance with ISO7816 protocol;
  • Operating system: Embedded Linux system with proprietary intellectual property rights;
  • Internal descrambler: Integrated universal DVB descrambler;
  • MPEG DEMUX: Multi-channel SECTION and PID filter configurable through software;
  • Enclosure structure: Latest compact structure and design for assembly;
  • Descramble up to 2 TV Channels using one module;

SMiT Professional CAM Specification

  • Document Number: version: 1.0 date: 2011-8-8 Page: 1/2
  • SMIT 1660 Professional Conax CAM Specification

Product Description:

  • The CAM can be used on IRDs, which has DVB-CI interface
  • Meticulously tested with IRDs models from Europe, the middle East, Australia, Asia
  • The CAM supports Conax CAS 4.1 enhanced secure features
  • With an authorized Conax smart card, the CAM gives access to DVB encrypted program
  • Advanced language development environment
  • Supporting subsequent development of value-added services

Chipset & TS bandwidth:

  • ASIC chip with proprietary intellectual property right
  • Based on the Embedded 32-bit CPU (ARM7TDMI)
  • Adopting advanced 0.18-micron technology
  • Flash Size: 4M Bytes
  • RAM Size: 384K Bytes
  • TS process bandwidth: Up to 96Mbps
  • Limited thermal aging test is over 24 hours

Physical & Electrical Characteristics:

Dimensions: Type II PCMCIA card (100mm x 58mm x 4mm)

  • Connector: 68-pin PCMCIA slot
  • Operation voltage: 4.5V ~ 5.5V
  • Operation current: <150mA
  • Low power consumption: < 600mW

Standard:

Plug and Play

  • Compatible with DVB-CI standard (EN50221)
  • Compatible with ETR289
  • Compatible with ISO7816 T=0 protocol, Class A
  • Compatible with MPEG-2/MPEG-4
  • Compatible with the RoHS Directive 2002/95/EC and its subsequent amendments

Descrambling & Filtering:

  • Supporting common descrambling algorithm of Europe
  • Multi services descrambling (Optional), up to 2 services descrambling
  • Hardware based section filters
  • Up to 64 configurable PID filters for filtering packet or section data

Software Upgrade:

  • Support OTA software upgrade
