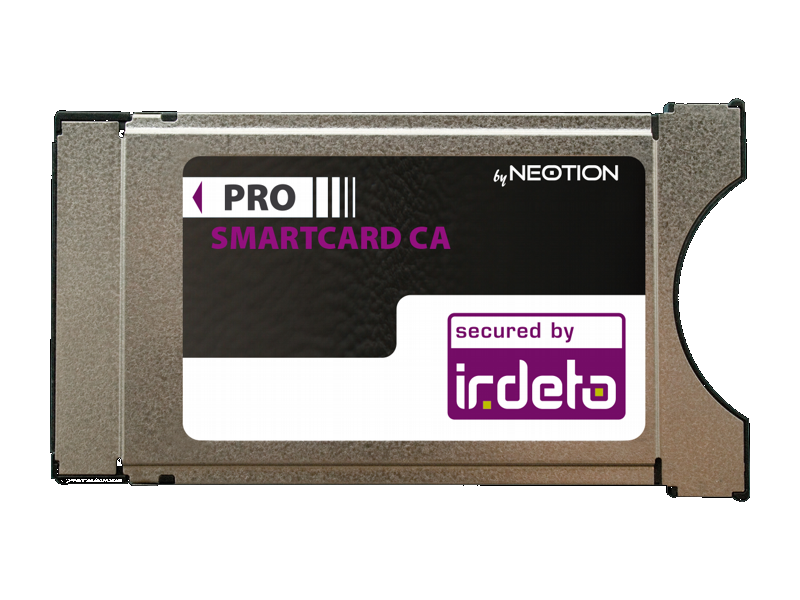

NEOTION Irdeto PRO 6
Brand: Neotion
Rating : Not Rated till now ! - Rate the product now or check reviews from customers
Plug version (if using)
EU
US/CA
UK
Choose packing size :
CHOOSE BIGGER PACK SIZE TO GET THE LOWEST PRICE
| Price per unit: | |
|---|---|
| Total price: Price is excluding VAT ! |
€ 128,00 |
| Check Shipping price |
Set up Watch Dog on this item here.
Interested in this product ?
Powered by NEOTION in-house silicon technology, the NEOTION PRO CAM enables professional head-ends equipments to decode TV Programs scrambled with Conditional Access System IRDETOTM.
Inserted in the Common Interface (DVB-CI) slot, NEOTION PRO CAM allows professional customers of digital TV to receive and descramble up to 6 or more (according to the services configuration) services simultaneously.
Technical specification
Stream Type supported:
- MPEG-2, MPEG-4, SD and HD
- All Audio Type (MPEG2, AAC, HE AAC, Dolby, etc)
- Private Data
- Teletext
Interfacing:
- Plug-and-Play & User Friendly
- DVB-CI high level MMI compliant
Languages: English (more on demand)
Standards:
- DVB Common Interface standard and PCMCIA ISO/IEC EN50221 compliant
- CI Plus specification v1.2 compliant
- Smart Card: full ISO 7816-3 (T=0, T=14) compliant
- RoHS compliant directive 2002/95/EC
OTA:
- Upgrade from MPEG transport stream over the air
- DVB SSU compliant
Memory:
- On chip eDRAM: 16Mbits
- Off chip SDRAM: 128Mbits
- Off chip Serial Flash: 64Mbits
Security:
- IRDETOtm Conditional Access System embedded (for MPEG-2 or MPEG-4, SD & HD Pay TV services)
- Unique and protected Authentication ID
- Hardware crypto accelerators
- Secure Chipset for application such as pairing (anti card sharing / anti control word sharing)
- On chip OTP
- Dual mode: Secure Chipset or No Secure Chipset mode according to the operator broadcast system settings.
Processing:
- ARM7TM @ 126MHz
- 8K I-cache and 8K D-cache
- 6 DVB-CSA descrambler
Size, Weight & Power supply:
- PCMCIA Type II
- 46g
- 5 volts, from any DVB-CI host
