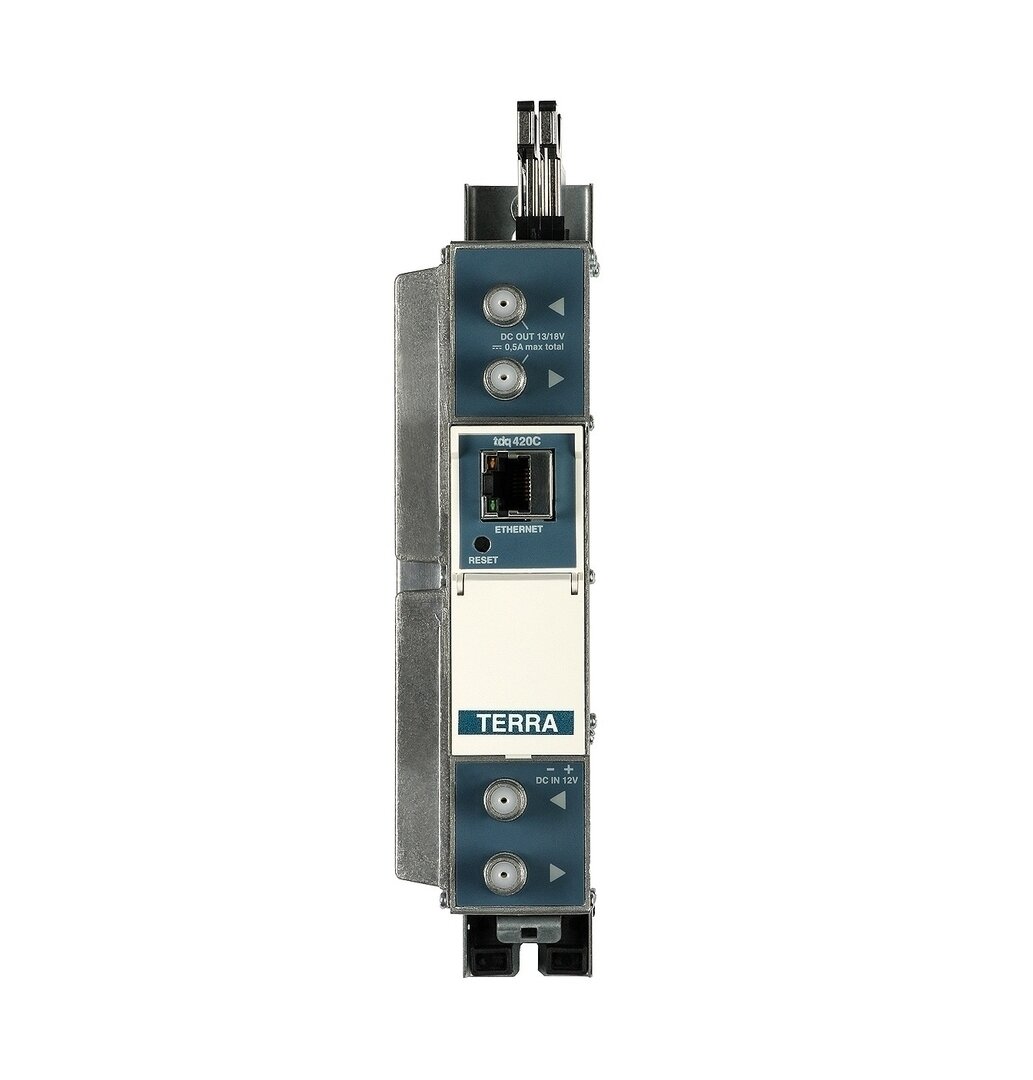

TERRA TDQ-420C (2xCI) 2xS2 to 2xDVB-C
Brand: TERRA
Rating : Not Rated till now ! - Rate the product now or check reviews from customers
Plug version (if using)
| Price per unit: | |
|---|---|
| Total price: Price is excluding VAT ! |
€ 460,00 |
| Check Shipping price |
The TDQ420C transmodulator is designed to convert DVB-S/S2 signals (8PSK, QPSK) from two independent satellite transponders into two DVB-C QAM multiplexes. This versatile device also features dual Common Interface (CI) slots, enabling advanced decryption capabilities.
Key Features:
- Signal conversion from DVB-S/S2 to DVB-C (QAM standard)
- Supports two satellite transponders mapped to two independent DVB-C multiplexes
- Option to combine two satellite transponders into a single DVB-C multiplex
- Allows channel selection and filtering, enabling operators to remove unwanted services from the digital stream
- Equipped with a user-friendly control interface via RJ-45 port for fast and straightforward system configuration
- Features two CI slots for multi-service descrambling
- Full remote management via the Internet
- Supports event log retrieval directly from the control panel for easy system diagnostics
- Integrated AGC (Automatic Gain Control) ensures stable signal levels even with fluctuating input signal strength
The TDQ420C offers an efficient and flexible solution for distributing satellite TV channels over DVB-C cable networks, providing both high performance and intuitive system management.
Simple and Intuitive Configuration:
The TDQ-420C R81639 is equipped with an RJ-45 Ethernet port, allowing quick configuration via a standard web browser, ensuring easy setup and remote system management.
Decryption Capabilities:

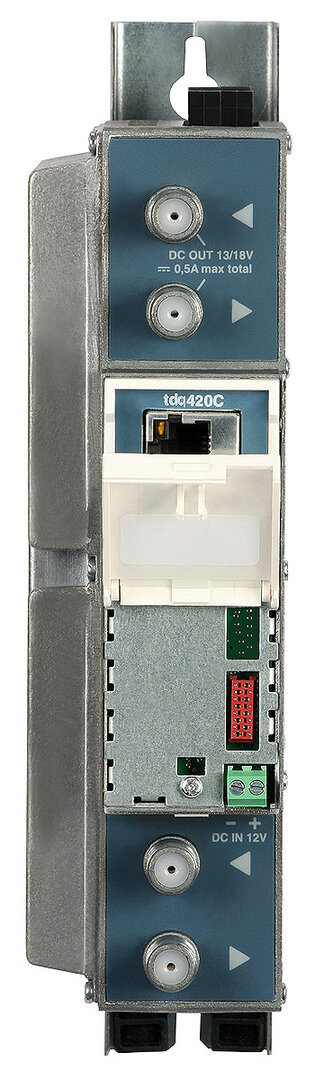

The panel features two CI slots to support encrypted channel reception. To access scrambled content, suitable Conditional Access Modules (CAM) and smart cards must be installed.
Seamless System Integration:

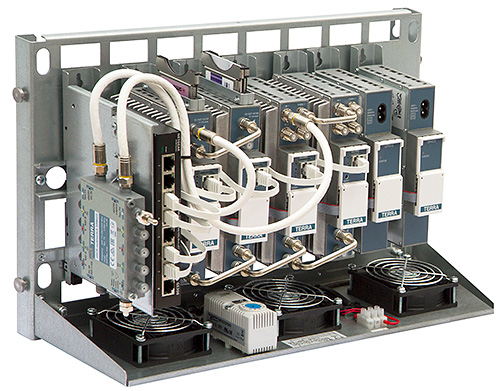

The Terra TDQ-420C R81639 easily integrates with additional system components, such as:
- IPTV streamers for distributing satellite, terrestrial, and cable channels over Ethernet (LAN) via twisted-pair cabling
- Optical transmitters for TV signal distribution over fiber optic infrastructure
- Additional signal management equipment like broadband amplifiers, channel amplifiers, and both analog and digital modulators
Related Products:
For projects requiring DVB-S/S2 to DVB-T (COFDM) conversion, Terra offers the following compatible transmodulators:
- Terra TDX-420C R81619 – DVB-S/S2 to 2x DVB-T (COFDM) with dual CI slots
- Terra TDX-420 R81618 – DVB-S/S2 to 2x DVB-T (COFDM)
The Terra TDQ-420C R81639 provides an efficient, flexible, and scalable solution for the distribution of satellite TV channels over cable systems, perfectly suited for complex installations like hotels and large residential buildings.
DOWNLOAD DATASHEET TDQ420C
