LNB's AMIKO ECO L 107 LNB

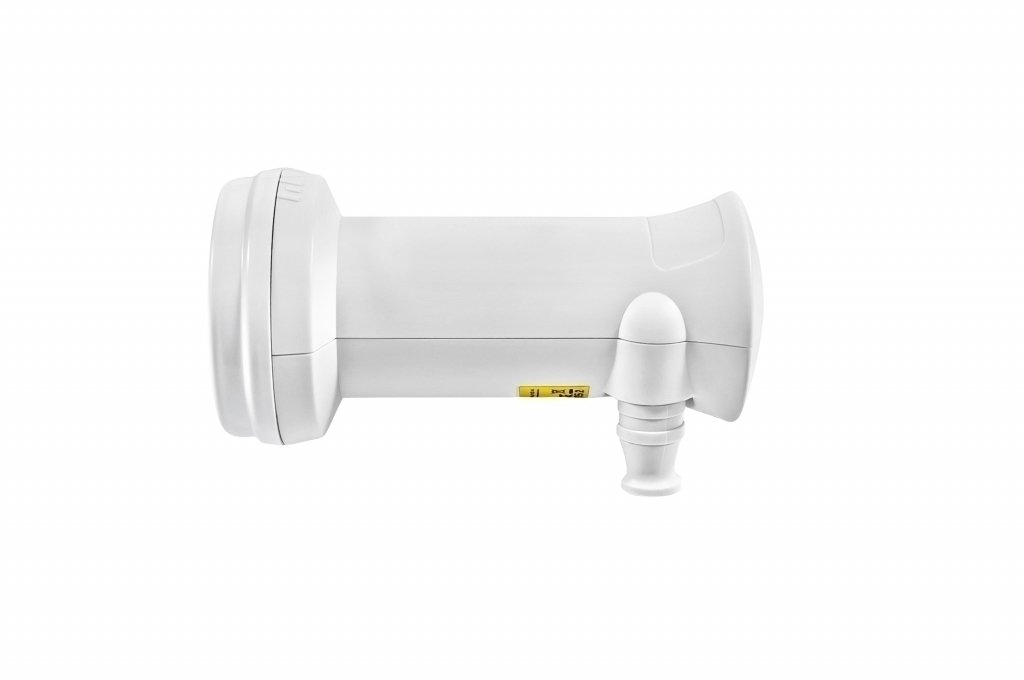

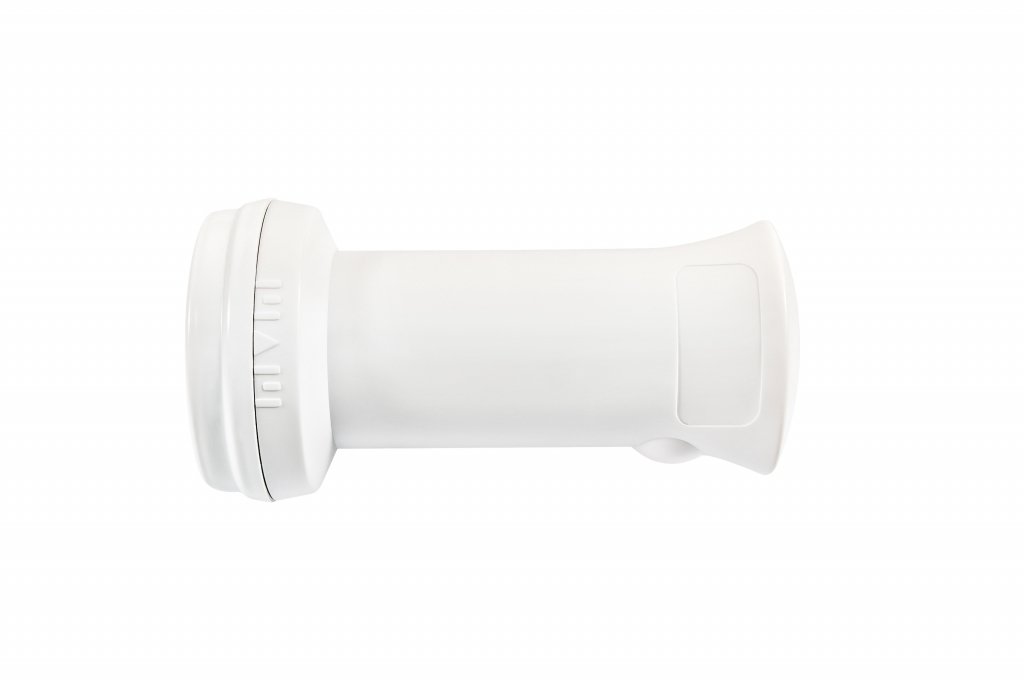

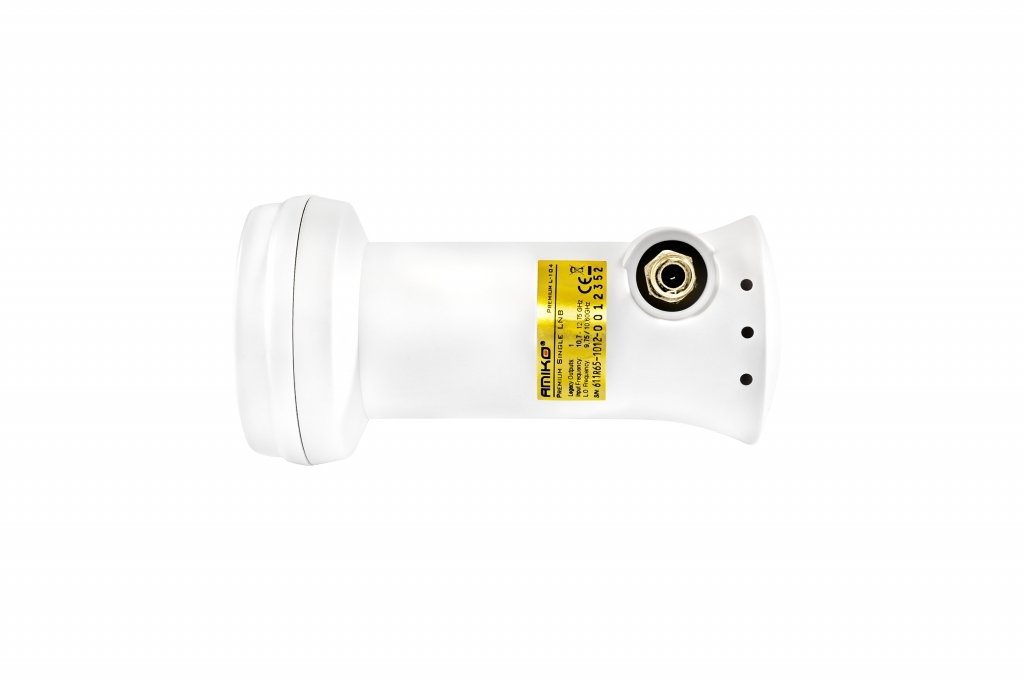

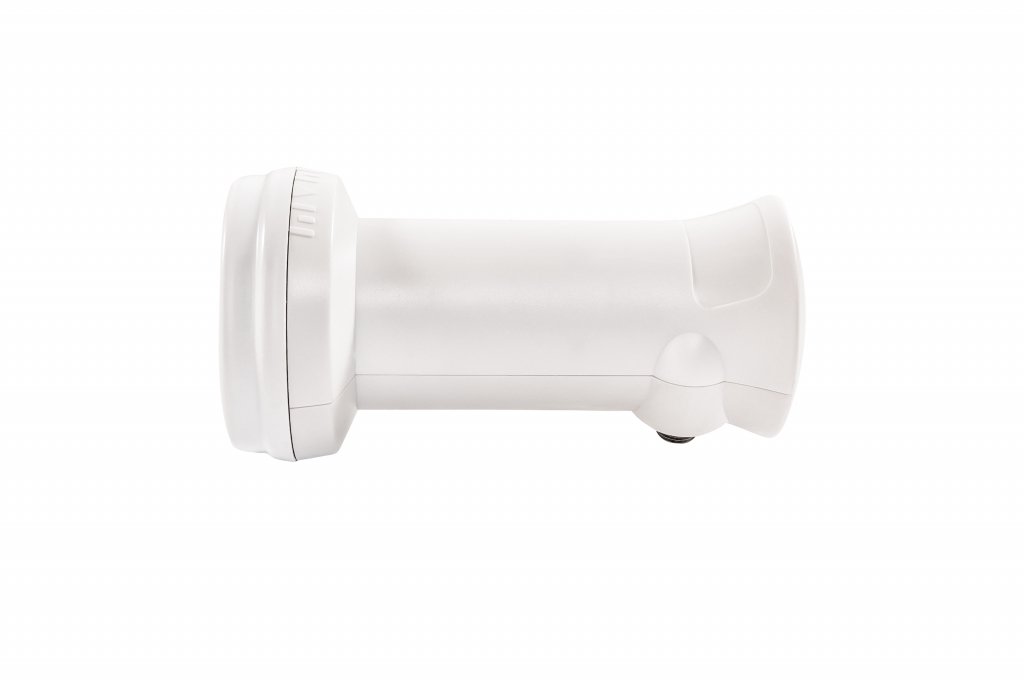

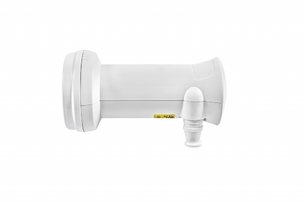

AMIKO ECO L 107 LNB

Brand: Amiko

Choose packing size : CHOOSE BIGGER PACK SIZE TO GET THE LOWEST PRICE
Price per unit:
Total price:
Price is excluding VAT !
€ 2,40

 AMIKO PREMIUM L-107 ECO, SINGLE lnb

  • High Performance PLL Ku-Band LNB
  • HD - High Definition (DVB-S2) Compliant
  • Easy Installation (40mm)
  • Superb Non-Drift Performance
  • L.O. Accuracy & Stability Within +/-1.5MHz
  • 100% Water Leak Proof

TECHNICAL SPECIFICATIONS

LEGACY OUTPUTS: 1
NOISE FIGURE: 0,1 dB
REFLECTOR TYPE: Offset
CLAMP SIZE: 40mm
INPUT FREQUENCY RANGE: 10,7GHz ~ 11,7GHz (Low Band)
INPUT FREQUENCY RANGE: 11,7GHz ~ 12,75GHz (High Band)
OUTPUT FREQUENCY RANGE: 950MHz ~ 1950 MHz (Low Band)
OUTPUT FREQUENCY RANGE: 1100MHz ~ 2150 MHz (High Band)
HIGH BAND SWITCHING: 22KHz (+/-4KHz)
L.O. FREQUENCY: 9.75 GHz (Low Band)
L.O. FREQUENCY: 10.60 GHz (High Band)
OPERATING TEMPERATURE: -40ºC ~ +60ºC
OPERATING VOLTAGE: 13V (VER) / 18V (HOR)
DC POWER CONSUMPTION: 110mA (max.)
