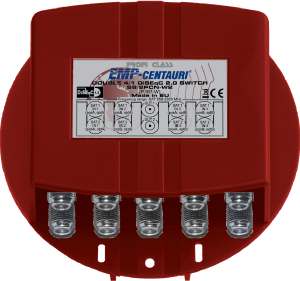

EMP DiSEqC switch S8/2PCN-W2
Brand: EMP-Centauri
Rating : Not Rated till now ! - Rate the product now or check reviews from customers
Plug version (if using)
Price per unit: | |
---|---|
Total price: Price is excluding VAT ! |
€ 9,26 |
Check Shipping price |
Set up Watch Dog on this item here.
Interested in this product ?
8in/2out double DiSEqC 2.0 switch for up to 4 satellite positions and 2 subscribers (or 2 tuners). It is designed for switching between 3 or 4 Twin LNBs, which are addressed in receiver's menu as DiSEqC 1.0 setting A/B/C/D.
Parameter | Condition | Value |
Frequency range | LNB inputs | 950-2300 MHz |
Output | 5-2300 MHz | |
Control | DiSEqC 1.0 (2.0) commands | |
Insertion loss | 4 dB max | |
Sat. inputs isolation | 25 dB min | |
Power consumption | From each receiver | 35 mA (18V) + LNB |
DC current pass | 400 mA max | |
Dimensions (w,d,h) | 11.2 x 11.2 x 4.9 cm | |
Temperature range | -30 ~ +70 °C |
