EMP DiSEqC switch S4/2PCN-W2
Brand: EMP-Centauri
Rating : Not Rated till now ! - Rate the product now or check reviews from customers
Plug version (if using)
EU
US/CA
UK
Choose packing size :
CHOOSE BIGGER PACK SIZE TO GET THE LOWEST PRICE
| Price per unit: | |
|---|---|
| Total price: Price is excluding VAT ! |
€ 7,69 |
| Check Shipping price |
Set up Watch Dog on this item here.
Interested in this product ?

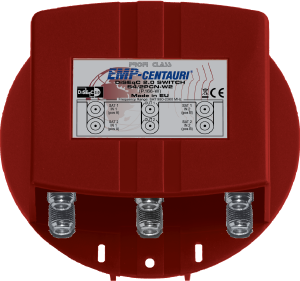

EMP Centauri DiSEqC switch S4/2PCN-W2 (p.166 IW )
4in/2out double DiSEqC 2.0 switch for 2 satellite positions and 2 subscribers (or 2 tuners). It is designed for switching between 2 Twin LNBs, with using command "Position" (receiver setting A/B).
| Parameter | Condition | Value |
| Frequency range | LNB inputs | 950-2300 MHz |
| Outputs | 950-2300 MHz | |
| Control | DiSEqC 1.0 (2.0) command "Position" or "Tone Burst" | |
| Insertion loss | 5 dB avg | |
| Sat. inputs isolation | 25 dB min | |
| Power consumption | From each receiver | 30 mA (18V) + LNB |
| DC current pass | 400 mA max | |
| Dimensions (w,d,h) | 11.2 x 11.2 x 4.9 cm | |
| Temperature range | -30 ~ +70 °C |
