EMP DiSEqC switch S4/1PCP-W2
Brand: EMP-Centauri
Rating : Not Rated till now ! - Rate the product now or check reviews from customers
Plug version (if using)
Price per unit: | |
---|---|
Total price: Price is excluding VAT ! |
€ 6,17 |
Check Shipping price |
Set up Watch Dog on this item here.
Interested in this product ?

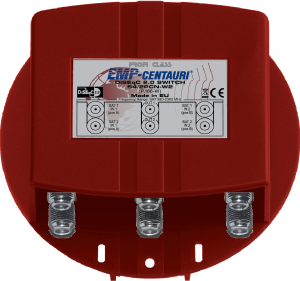

5in/1out DiSEqC 2.0 switch for up to 4 satellite positions and 1 subscriber, equipped with combiner for terrestrial band. It is designed for switching between 3 or 4 LNBs, which are addressed in receiver's menu as DiSEqC 1.0 setting A/B/C/D.
The product allows joining terrestrial band to common downlead.
Parameter | Condition | Value |
Frequency range | LNB inputs | 950-2300 MHz |
Terr. input | 5-862 MHz | |
Output | 5-2300 MHz | |
Control | DiSEqC 1.0 (2.0) commands | |
Insertion loss | Sat. | 6 dB avg |
Terr. | 2 dB avg | |
Sat. inputs isolation | 25 dB min | |
Current consumption | From receiver | 35 mA (18 V) |
DC current pass | 400 mA max | |
Dimensions (w,d,h) | 11.2 x 11.2 x 4.9 cm | |
Temperature range | -30 ~ +70 °C |
