Dreambox DM 525 CI DVB-T2/C

Brand: Dream Multimedia

Choose packing size : CHOOSE BIGGER PACK SIZE TO GET THE LOWEST PRICE
Quantity:
Unit/s
Price per unit:
Total price:
Price is excluding VAT !
€ 132,00

DM525 - compact Dreambox with CI slot for HD TV and radio programs.

The compact Dreambox DM525 with CI slot sets new standards with modern design and technical equipment at the highest level. The new Videostandard H.265, the u.a. Which is required for DVB-T2 reception in Germany and many other countries, is supported by the HDTV Dreambox.


A next-generation Broadcom chipset (BCM 73625) provides fast switching times and fluid navigation. The DM525 comes with the popular RCU10 multi-remote control for dreamboxes and playback devices such as TVs or Blu-ray players. The 256 MB typical flash memory in the flash memory surpasses the DM525 with 512 MB - enough memory for innovative IP services. Some apps are already planned. In addition, the DM525 also supports the Sat> IP standard. The Dreambox is connected to the Internet via the back-end Ethernet port or optionally via WLAN.

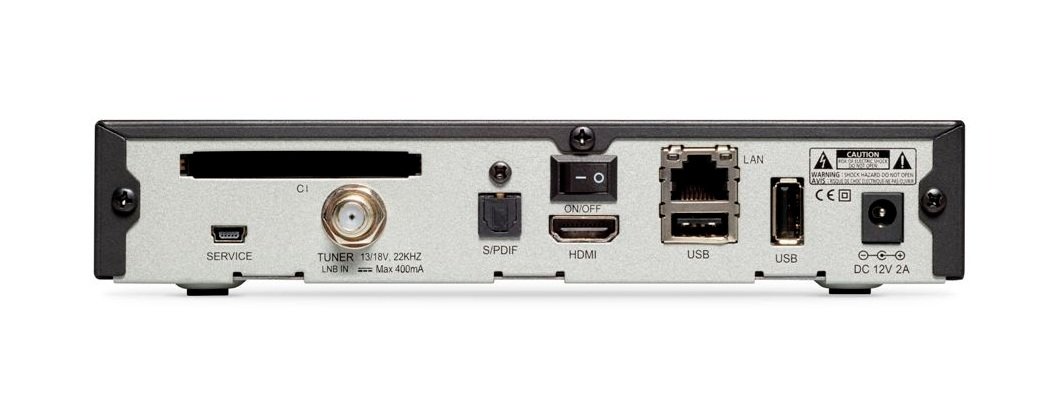

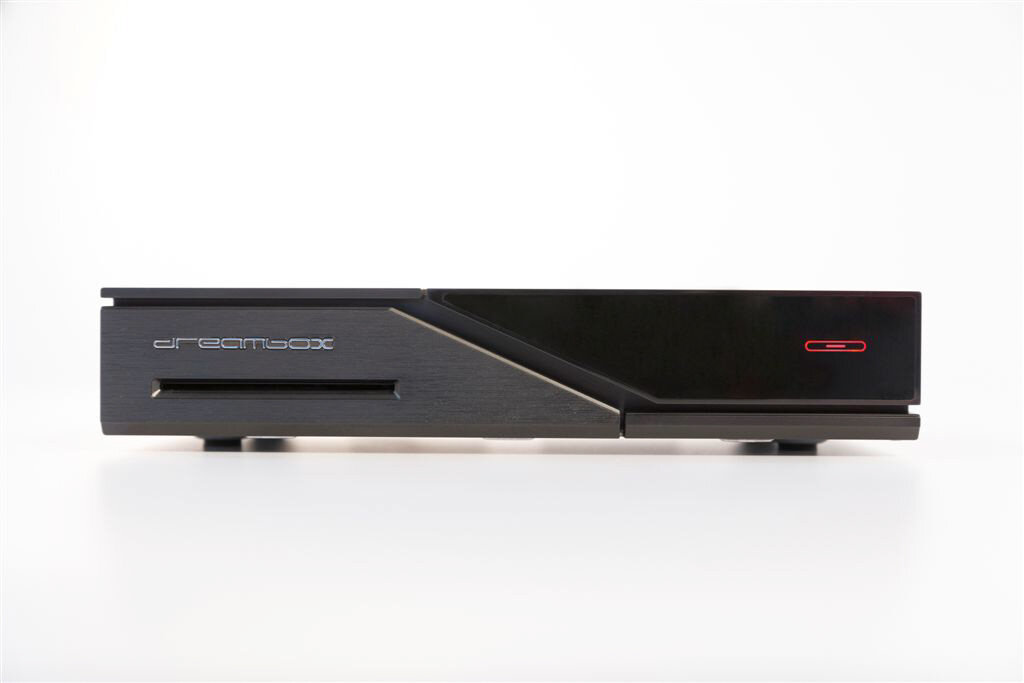

In addition to the back-end Ethernet port, the HDMI output, two USB ports and a mini USB service port, the CI slot is also located here. At the front, the DM525 has the famous touch-on / off-sensor, which was introduced with the DM520 and caused a lot of sensation. Like the DM520, the DM525 with its clearly structured and modern design is a real eye-catcher. Its technical features convince to convince and ensures the highest viewing pleasure with brilliant and contrasting TV pictures in SD and HD resolution.




Main features are the new Broadcom processor, H.265 streaming and a CI slot


Fanless design housing

DVB-S2, C / T2 HVEC support

H.265 Support

Common Interface (CI) slot

High quality Dreambox RC10 remote control




Technical details of the DM 525 HD with 1 x DVB-S2 tuner:


Dreambox OS

Dreambox API

2000 DMIPS processor

HDMI 1.4a

MPEG-2 / H.264

H.265 Decoder (Full HD)

1 x Smartcardreader

1 x Common Interface (CI) slot

512 MB Flash

512 MB of RAM

10/100 MBit / s Ethernet

2 x USB 2.0

S / PDIF optical digital output

USB service support

EPG (Electronic Program Guide)

Automatic channel search

WiFi support (optional)

Webinterface for PC and Smartphone

Videotext

DiseqC 1.0, 1.1, 1.2, USALS

Dimensions: 260 x 150 x 45mm (W x D x H)



Input voltage:


230V / 50 Hz Alternating voltage +/- 15% 110V / 60 Hz Alternating voltage +/- 15%




General information:


Ambient temperature + 15 ° C ... + 35 ° C

Relative humidity <80%

Dimensions: (W x D x H): 260 mm x 150 mm x 45 mm

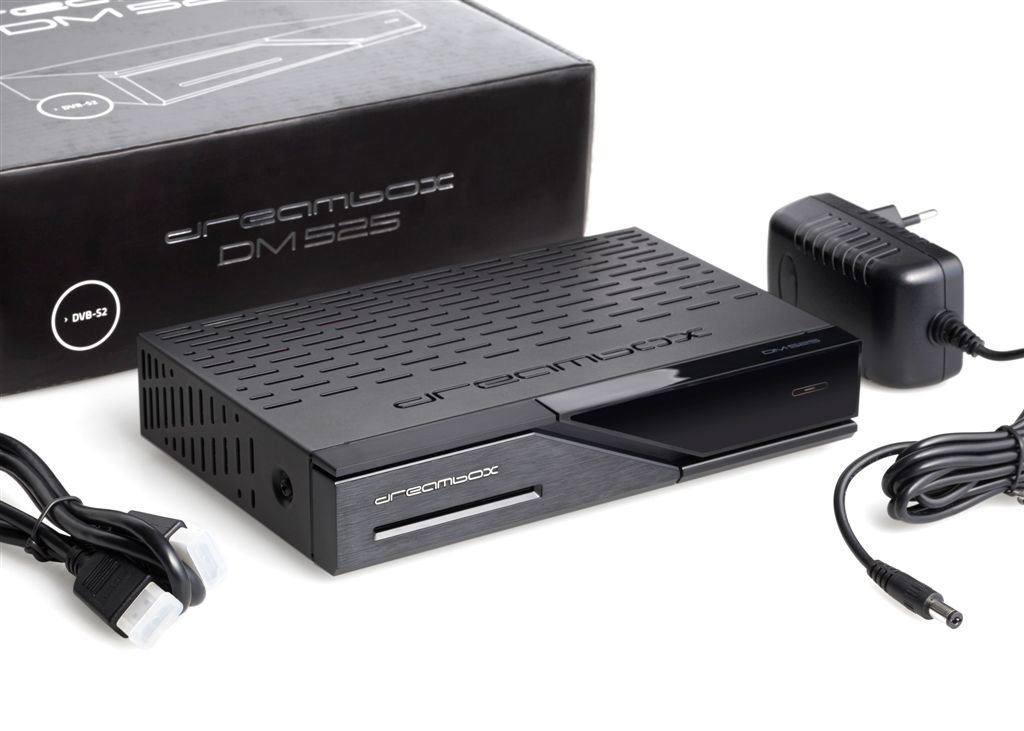

Delivery:


Dreambox DM525 with 1 x DVB-S2 tuner

Power supply

RCU10 multi-remote control

HDMI cable

quick start Guide
