IPTV Medialink ML 6500 S2T2C HEVC

Medialink ML 6500 S2T2C HEVC

Brand: Medialink

Choose packing size : CHOOSE BIGGER PACK SIZE TO GET THE LOWEST PRICE
Quantity:
Unit/s
Price per unit:
Total price:
Price is excluding VAT !
€ 59,00

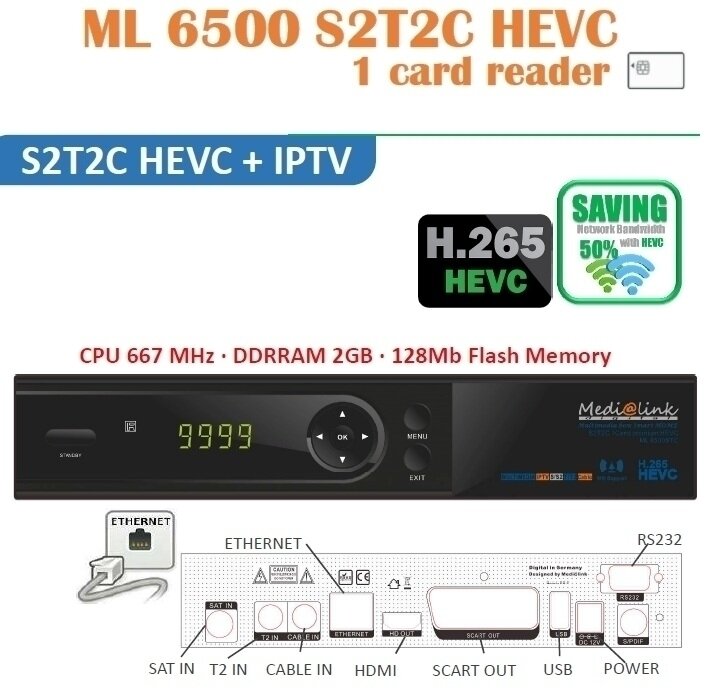

Medialink ML 6500 S2 + T2 + C with H 265 compatibility (HEVC)  + IPTV receiver

Multimedia box + IPTV + DVB-Satellite, Terrestrial and Cable HEVC compatible IPTV receiver with Card Reader


MAIN CHIPSET CPU : High-Performance 667MHz 32-bit MIPS 24KEc

FLASH MEMORY : 128Mb

DDR3 SDRAM : 2Gb RAM

DVB-S2
INPUT FREQUENCY RANGE 950MHz ~ 2150MHz, ANT IN
INPUT/OUTPUT CONNECTOR F-Type, IEC 169-24 and Female
INPUT FREQUENCY RANGE 950MHz ~ 2150MHz, ANT IN
INPUT SIGNAL LEVEL -65dBm ∼ -25dBm
INPUT IMPEDANCE 75Ω Unbalanced
INPUT VOLTAGE
Vertical: +13.5V (+14.5V at high voltage)
Horizontal: +18V (+18.5V at high voltage)
Current: Max. 500mA (Short Circuit Protection)
22KHz TONE
Frequency 22KHz±4KHZ
Amplitude 0.6±0.2Vpp
DiSEqC CONTROL 1.0, 1.1 & 1.2 Version Compliant
CHANNEL SELECTION PLL Frequency Synthesizer

DVB-T2
Input Connector IEC 169 - 2, Female
Frequency Range 147 ~ 230 MHz, 470 ~ 862 MHz
Signal Level Input -80 ~ -20dBm
Aerial Supply 5V, max. 100mA
Demodulation OAM
Carrier Mode 1K, 2K, 4K, 8K, 16K, 32K
Constellation 16 and 256QAM
Guard Interval 1/4, 1/8, 1/16 and 1/32
Input Connector IEC 169v - 2, Female
DVB-C
Input Connector IEC 169 - 2, Female
Frequency Range 51 ~ 858 MHz
Symbol Rates 0.87m ~ 9M baud
Sensitivity -47dBm (64 QAM ~ 256 QAM)
VIDEO DECODER
TRANSPORT STREAM
MPEG-2 ISO/IEC 13818-2
MPEG-4 Part 2
PROFILE LEVEL
MPEG-2 MP@ML, MPEG-2 MP@HL
MPEG-4 AVC/H.265 HP@L4.1
VIDEO FORMAT 4:3, 16:9, Letter Box
VIDEO RESOLUTION 1080p, 1080i, 720p, 576p, 576i, 480p, 480i

Input Connector :I EC 169 - 2, Female

STORAGE TEMPERATURE
-10℃ to +70℃

FREE IPTV

  • FREE IPTV RED
  • Up to 5.000 free live channels
  • Sports, British, Portugal, Turkey, Kurdish, Kosovo, Arabic, Iran, Brazil, Mexico, South America, Spain, Russia, Kazakhstan, Ukraine, Poland, Czech, Slovakia, Turkmenistan, and Uzbekistan channels

  • FREE IPTV ORANGE
  • Up to 5.000 free live channels
  • African countries, Italy, Germany, France, Netherlands, Belgium, Scandinavian countries, Switzerland, Austria, Balkan countries, Albania, Hungary, Romania, Greece, Asia, China, India, Pakistan, Estonia, Lithuania, Latvia, and Israel channels

  • Up to 10.000 free films
  • Free films in English, Turkish, Arabic, French, Italian, Spanish, German, Polish, Russian, Portuguese, Ex-Yugoslavian, Hungarian, Asian, Indian, and VoDs for kids
