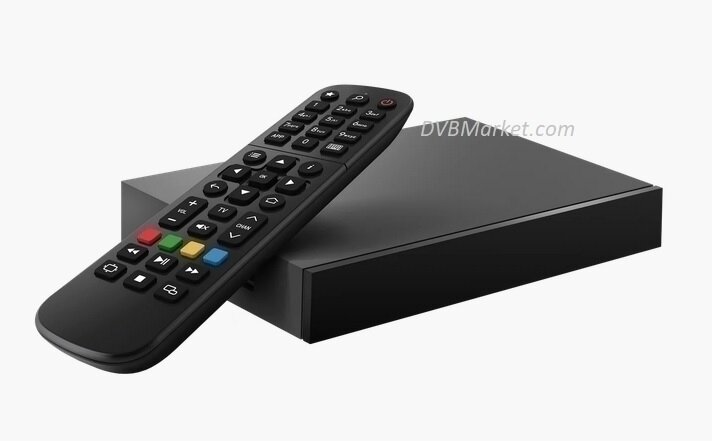

Infomir MAG 520w3 4K
Infomir MAG 520w3 4K
Brand: Infomir
Rating : Not Rated till now ! - Rate the product now or check reviews from customers
Plug version (if using)
EU
US/CA
UK
Choose packing size :
CHOOSE BIGGER PACK SIZE TO GET THE LOWEST PRICE
Quantity:
| Price per unit: | |
|---|---|
| Total price: Price is excluding VAT ! |
€ 81,00 |
| Check Shipping price |
MAG 520w3 by Infomir is new generation of Linux IPTV Settopboxes with UHD Resolution & HEVC. Dual Band Wifi on Board.
Original Infomir MAG520w3 with Amlogic S905X2 CPU.
Interfaces
Audio & video
Shipping worldwide from EU stock, next day delivery.
Original Infomir MAG520w3 with Amlogic S905X2 CPU.
MAG520 w3 is a new model of IPTV set-top box from Infomir. The attachment is compact. It is equipped with 1 GB of RAM and 4 GB of flash memory, which is enough for storing and playing high quality videos. MAG520 plays files with HEVC codec. This reduces the load on the network, even when it comes to streaming 4K content. Set-top box runs under Linux OS.
Supports 4K and HEVC, Linux OS, USB x 2 (3.0, 2.0), 1GB RAM, 4GB eMMC
Processor
|
Amlogic S905X2 Quad-core ARM Cortex-A53, 1900 MHz | |
| Performance | 18400 DMIPS | |
| RAM | 1 GB | |
| Flash memory | 4 GB eMMC |
Software
| Operating system | Linux 4.9 |
| Middleware supported | Pre-integrated Ministra TV platform from Infomir. It is possible to integrate operator applications into the image, customize or completely replace the image. |
Interfaces
| HDMI 2.1, Ethernet 100 Mbps, USB 2.0x1, USB 3.0x1 |
Sources of media content
| PC and NAS in local network, Stream media protocols (RTSP, RTP, UDP, IGMP, HTTP), USB-devices |
Audio & video
| Audio codecs | MPEG L1 / L2 / L3l, AAC-LC, HE AAC V1 / V2, APE, FLAC, Dolby Digital Plus |
| Audio formats | AC3, ACC, APE, FLAC, M4A, MP3, OGG, WAV |
| Video modes | PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p |
| Video codecs | MPEG1 / 2 MP @ HL, MPEG4 part 2 (ASP), H.265 Main / Main 10@L5.1 High 2160p @ 60 fps (optional), H.264 AVC High@L5.1 2160p @ 30 fps, XviD, 3D video support |
| Video containers | TS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB |
| Image formats | JPEG, PNG, BMP, RAW |
| Subtitles | DVB, PGS, SRT, SSA / ASS, SUB, Teletext subs, WebVtt, Closed captions |
| Playlist formats | M3U, M3U8, PLS, CUE |
Included in Package :
- Infomir MAG 520w3 4K IPTV Receiver
- Power Supply Unit (EU/US or UK - choose during ordering)
- Remote Control Unit + Batteries
- HDMI Cable
- Short User Manual
- Infomir License Label
Shipping worldwide from EU stock, next day delivery.
