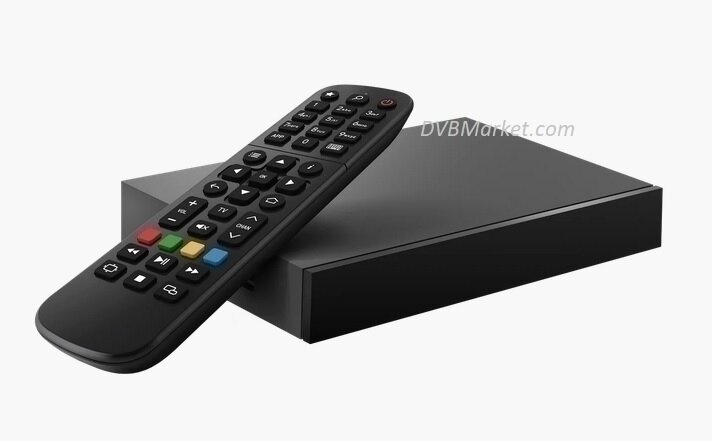

IPTV Infomir MAG 520 4K

Infomir MAG 520 4K

Brand: Infomir

Rating :    5 - Rate the product now or check reviews from customers

Plug version (if using)
EU US/CA UK

Choose packing size : CHOOSE BIGGER PACK SIZE TO GET THE LOWEST PRICE
Quantity:
Unit/s
Price per unit:
Total price:
Price is excluding VAT !
€ 83,00
Check Shipping price

Add to the Favourites list


MAG 520 by Infomir is new generation of Linux IPTV Settopboxes with UHD Resolution & HEVC. Ethernet connection available.

Original Infomir MAG520 with Amlogic S905X2 CPU.

MAG520  is a new model of IPTV set-top box from Infomir. The attachment is compact. It is equipped with 1 GB of RAM and 4 GB of flash memory, which is enough for storing and playing high quality videos. MAG520 plays files with HEVC codec. This reduces the load on the network, even when it comes to streaming 4K content. Set-top box runs under Linux OS.

Supports 4K and HEVC, Linux OS, USB x 2 (3.0, 2.0), 1GB RAM, 4GB eMMC

Processor
Chipset
Amlogic S905X2 Quad-core ARM Cortex-A53, 1900 MHz
Performance 18400 DMIPS
RAM 1 GB
Flash memory 4 GB eMMC
Software
Operating system Linux 4.9
Middleware supported Pre-integrated Ministra TV platform from Infomir. It is possible to integrate operator applications into the image, customize or completely replace the image.

Interfaces
HDMI 2.1, Ethernet 100 Mbps, USB 2.0x1, USB 3.0x1


Sources of media content

PC and NAS in local network, Stream media protocols (RTSP, RTP, UDP, IGMP, HTTP), USB-devices

Audio & video
Audio codecs MPEG L1 / L2 / L3l, AAC-LC, HE AAC V1 / V2, APE, FLAC, Dolby Digital Plus
Audio formats AC3, ACC, APE, FLAC, M4A, MP3, OGG, WAV
Video modes PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p
Video codecs MPEG1 / 2 MP @ HL, MPEG4 part 2 (ASP), H.265 Main / Main 10@L5.1 High 2160p @ 60 fps (optional), H.264 AVC High@L5.1 2160p @ 30 fps, XviD, 3D video support
Video containers TS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB
Image formats JPEG, PNG, BMP, RAW
Subtitles DVB, PGS, SRT, SSA / ASS, SUB, Teletext subs, WebVtt, Closed captions
Playlist formats M3U, M3U8, PLS, CUE


Included in Package :

  • Infomir MAG 520 4K IPTV Receiver
  • Power Supply Unit (EU/US or UK - choose during ordering)
  • Remote Control Unit + Batteries
  • HDMI Cable
  • Short User Manual
  • Infomir License Label


Shipping worldwide from EU stock, next day delivery.
