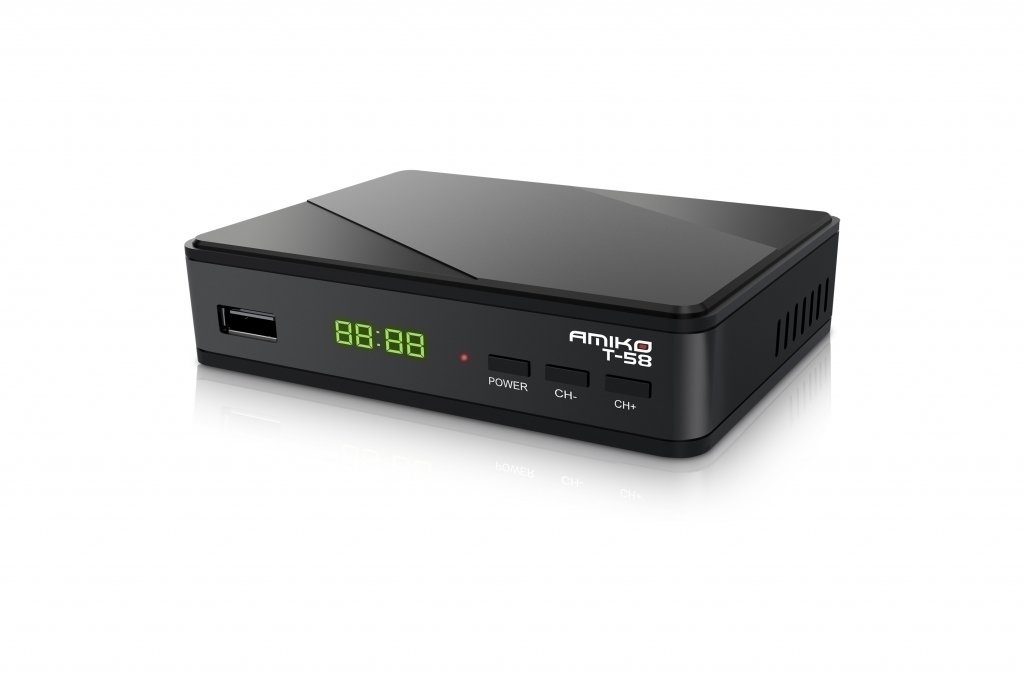

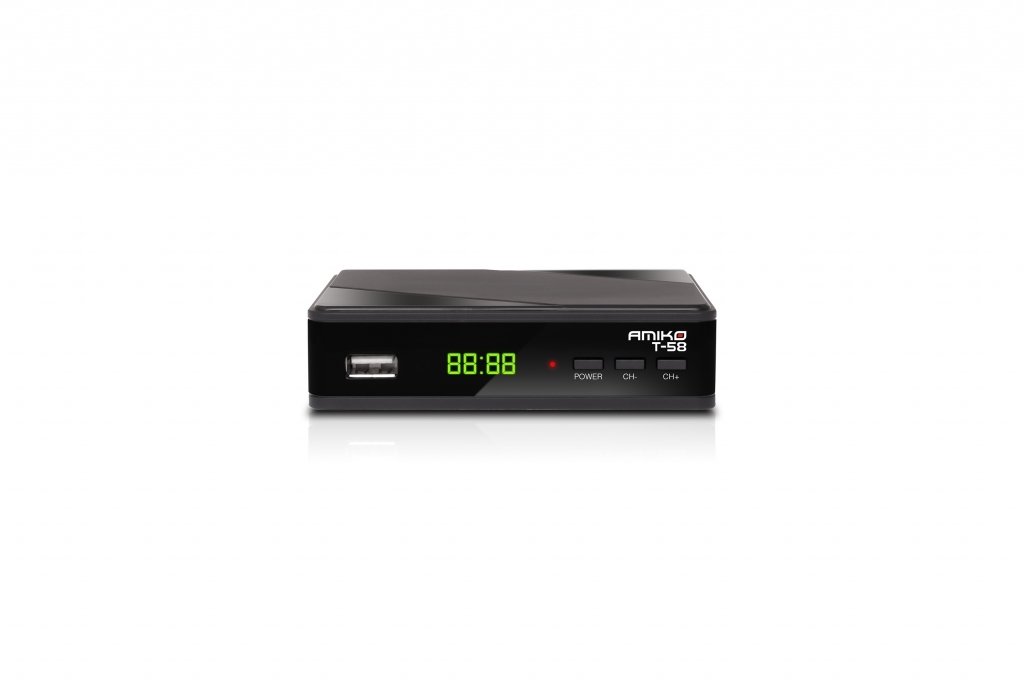

AMIKO T58 (T2)

Brand: Amiko

Choose packing size : CHOOSE BIGGER PACK SIZE TO GET THE LOWEST PRICE
Price per unit:
Total price:
Price is excluding VAT !
€ 17,00

AMIKO T 58, FULL HD DIGITAL T2 TERRESTRIAL RECEIVER - FREE-TO AIR

  • For reception of Free-To Air Digital Terrestrial broadcasts
  • Easy Installation
  • High speed USB2.0 connection
  • Multimedia playback (MKV, AVI, MPG, MP4, MP3, and more...)
  • TimeShift function - Stop live Television
  • Multi-language OSD
  • Subtitle & Multi-language audio support
  • Logical Channel Numbering (LCN) function
  • Electronic Program Guide (EPG)
  • Teletext support
  • Dolby Digital & Dolby Digital Plus Bit-Stream out via HDMI
  • HDMI & RCA connection
  • Full HD (1080p) output via HDMI connection
  • Easy software upgrades through USB
  • <1W power consumption in stand-by mode

Tuner & Demodulation

  • Tuner Type: DVB-T / T2
  • Frequency Range: 174~862MHz
  • RF Input Level: -80dBm to -20dBm
  • Antenna power output: DC 5V at max 75mA, Overload protection
  • Demodulation: COFDM 1K, 2K, 4K, 8K normal and extended, 16K normal and extended, 32K normal and extended
  • Input Symbol Rate: 1.0 ~ 7.0Ms/s
  • Constellations: QPSK, 16QAM, 64QAM, 256QAM / Both rotated and non-rotated
  • Guard Intervals: 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128
  • Code Rate: 1/2, 3/5, 2/3, 3/4, 5/6

System Resources

  • Main Processor: 1280DMIPS based CPU
  • Flash Memory: 4Mbytes
  • DDR RAM: 64Mbytes 800MHz DDR2    MPEG TS A/V Decoding
  • Transport Stream: MPEG-2, H.264
  • Input Rate: Max.120Mbit/s
  • Aspect Radio: 4:3, 16:9, Letter Box
  • Video Decoding: MPEG-2, MP@ML, MPEG-4 part 10/H264
  • Video Resolution: 720*480P/I, 720*576P/I, 1280*720p, 1920*1080i, 1920*1080p
  • Audio Decoding: MPEG-1 layer I/II, MPEG-2 layer II, Dolby digital
  • Audio Mode: Left / Right / Stereo/ Mono
  • Sampling Rate: 32, 44.1 and 48KHz

Power Supply

  • Input Voltage: 5V DC
  • Power Consumption: 8W Max
  • Stand-By Power Consumption: <0.5W

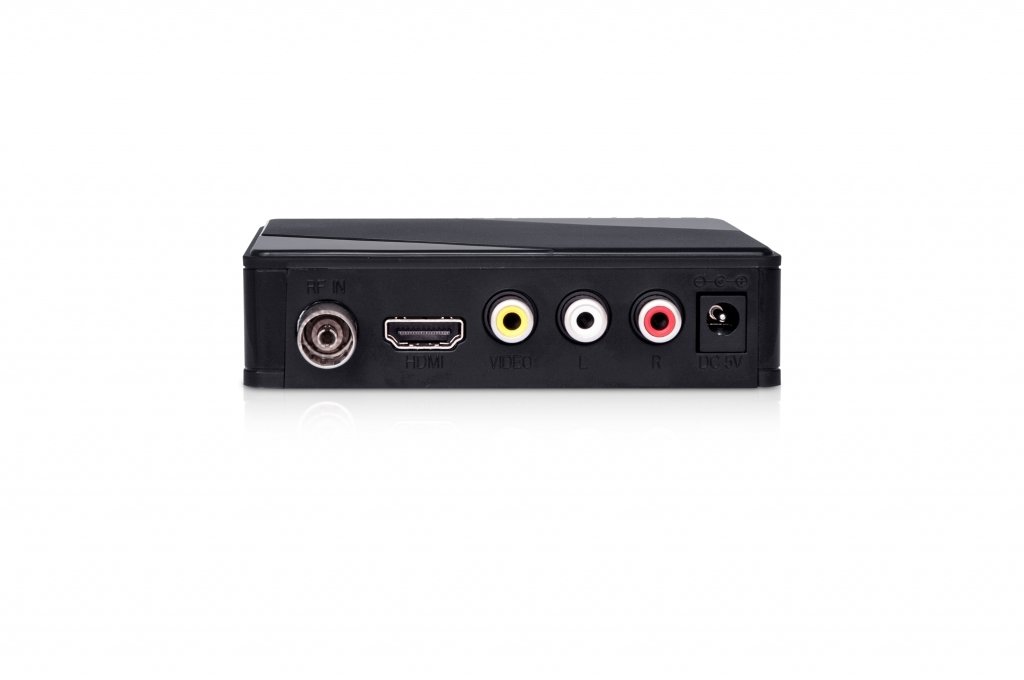

A/V & Data Input/Output

  • RCA A/V: Video CVBS output, Audio L/R output
  • HDMI: Ver 1.3
  • USB: 1 USB2.0 connection

Physical Specifications

  • Size[W*H*D]: 105mm x 27mm x 80mm
  • Net Weight: 0.1KG
  • Operation Temperature: 0°C~+45°C
  • Storage Temperature: -10°C~+70°C
  • Storage Humidity: 5%~95% RH (Non-Condensing)


AMIKO products can't be purchased by customers from Europe countries: HU, SK, CZ, ES, PT, GR, UK, IE, AT, BG, NL,BE,CH, PL, LT, IT, RO, Croatia, B&H and Serbia.


List of countries that is DVBMarket.com official distributor you can find HERE
