Smit Irdeto Skylink
Brand: Smit
Rating : Not Rated till now ! - Rate the product now or check reviews from customers
Plug version (if using)
| Price per unit: | |
|---|---|
| Total price: Price is excluding VAT ! |
€ 41,00 |
| Check Shipping price |
Set up Watch Dog on this item here.
Interested in this product ?

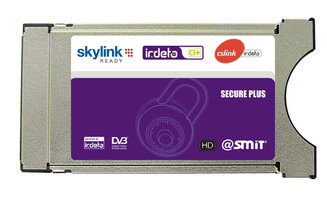

Original CAM module for decoding cards in the system Irdeto sys-PI 3.0 Access Module (CAM) SMIT Irdeto is designed for use in iDTV (TVs DVB-S tuner) and satellite receivers having CI interface and protocol support CI and CI +. Module decodes Access Card Irdeto Irdeto Access under license BV with the support of Irdeto SoftCell 3.0
100% functionality of the new Skylink Irdeto HD cards
SMiT Irdeto CAM specification
- 32-bit processor (CPU) with 0:18 ARM7TDMI-micron technology
- Size of 2 megabytes of Flash memory and RAM - 256 kilobytes
- Speed data stream up to 96 Mbit / s, according to the manufacturer theoretically up to 200 Mbit / s
Dimensions: PCMCIA type II
Interface protocols of the host: In full compliance with DVB-CI Profile 1 protocol;
External interface of IC card: Build-in SmartCard reader, in compliance with ISO7816 protocol;
Operating system: Embedded Linux system with proprietary intellectual property rights;
Internal descrambler: Integrated universal DVB descrambler;
MPEG DEMUX: Multi-channel SECTION and PID filter configurable through software;
Enclosure structure: Latest compact structure and design for assembly;
Compatible with MPEG2 & MPEG4 Receivers
