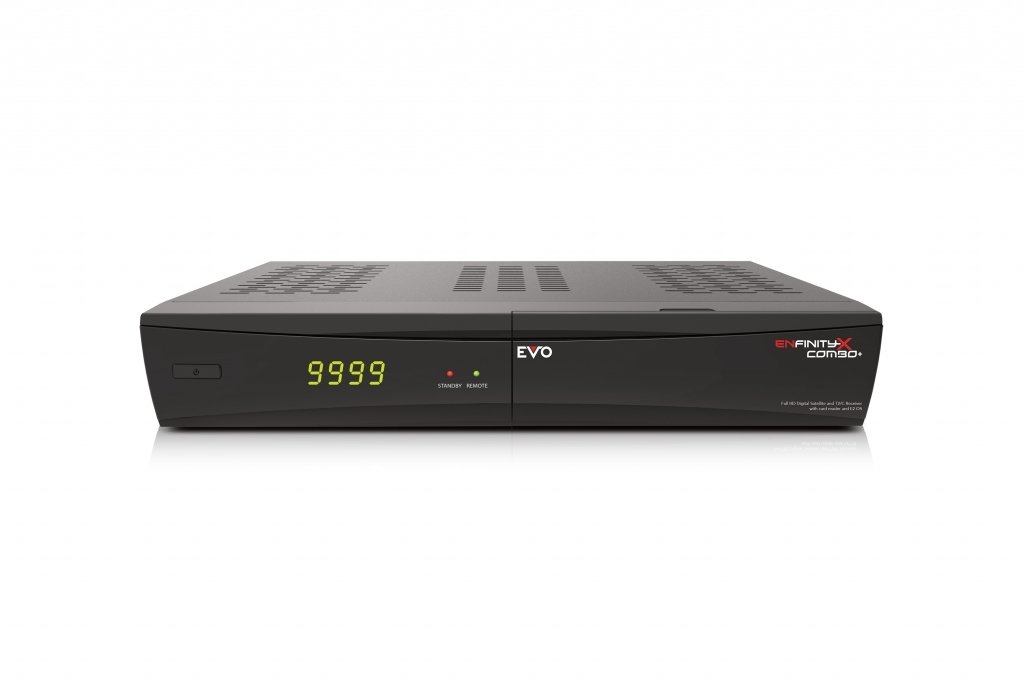

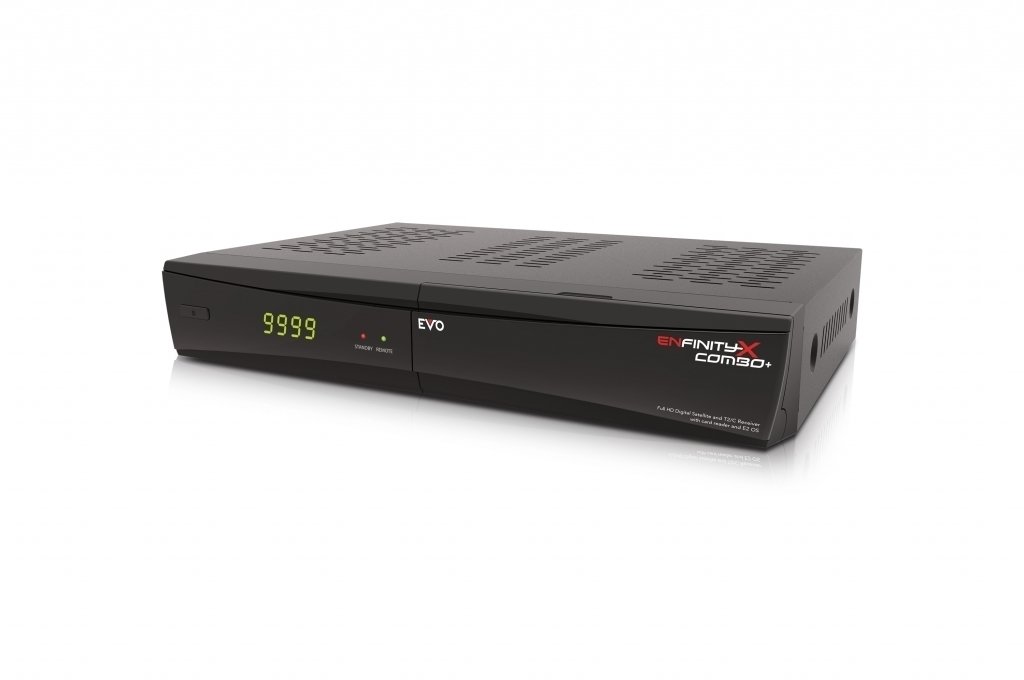

Optibox EVO ENFinity XCombo+

Brand: OPTIBOX

Choose packing size : CHOOSE BIGGER PACK SIZE TO GET THE LOWEST PRICE
Price per unit:
Total price:
Price is excluding VAT !
€ 125,35

  • Full HD Digital Satellite and T2/C receiver
  • E2 Operating System - Linux Embedded
  • With S2 Satellite and T2/C Hybrid Tuner
  • Processor - 742 Mhz (2000 DMIPS)
  • Fast and Easy Installation with the Installation Wizard
  • One card reader slot
  • Common Interface slots
  • 3D Ready (3D compliant Enigma 2 image installed is required)
  • Two High Speed USB2.0 connections
  • Multimedia Playback (MKV, AVI, MPG, MP4, TS, WMA, MP3 and more...)
  • TimeShifting - Stop live television (Hard drive required)
  • YouTube videos, Internet Radios and much more...*
  • Internet Streaming TV and Radio support*
  • Ethernet Connection and WiFi / 3G dongle support*
  • Easily expandable with addons and plugins
  • Live Streaming through network*
  • Remote Management through HTTP* / Telnet / SSH / FTP...
  • Media Playback and Recording via local network*
  • External USB DVD drive support*
  • Electronic Program Guide (EPG)
  • Multi-Satellite Controlled with DiSEqC1.0, 1.1, 1.2 and USALS
  • Automatic DiSEqC detection
  • High Resolution Graphic User Interface (GUI)
  • Customizable apperiance with Skins
  • (10/100M) Ethernet connetion
  • Multi-Language - Audio / Teletext / Subtitle - support
  • Easy Software Upgrades through the Internet / USB
  • Full HD HDMI 1.4 Connection
  • Dolby Digital Bit-Stream out via Coaxial S/PDIF and HDMI
  • DC 12V Power Supply

Technical Specifications

Tuner & Channel Decoder (Satellite)
Input Connector: F-type, IEC 169-24, Female
Frequency Range: 950MHz ~ 2150MHz
Input Impedance: 75Ω, unbalanced
Signal Level: -65 to -25dBm
LNB Power: 13/18VDC, max.400mA
22KHz Tone: (22±2)KHz, (0.7±0.2)V
DISEqC Control: V1.0/1.2/USALS Compatible
Demodulation: QPSK / 8PSK
Input Symbol Rate: 1 ~ 45 MSym/s
FEC Decoder: 1/2,3/5,2/3,3/4,4/5,5/6,7/8,8/9,9/10 (QPSK)

Tuner & Channel Decoder (DVB-T2/C hybrid emedded)
MPEG Transport Stream A/V Decoding: 3/5,2/3,3/4,4/5,5/6,8/9,9/10(8PSK)
Transport Stream: AVC/H.264(MPEG-4 part 10), MPEG-4 part2 (ISO/IEC 14496) MPEG-2 (ISO/IEC 13818-2)
Profile Level: AVC/H.264 MP and HP @L3.1(60fps) AVC/H.264 HP @L4.2(30fps) MPEG-2 MP @ ML and HL
Input Rate: Max. 80Mbit/s
Video Formats: 4:3 Letter Box, 4:3 PanScan, 16 : 9
Video Resolution: 720 x 576i, 720 x 576p, 720 x 480i, 720 x 480p 1280 x 720p, 1920 x 1080i, 1920 x 1080p
Audio Decoding: AAC LC, AAC LC+SBR Level 2, AAC+ Level 4, WMA pro, Dolby Digital, Dolby Digital Plus, MPEG-1 Layer 1,2
Audio Mode: Streo/Mono, Dolby digital, MPEG and AAC audio
Sampling Rate: 16KHz, 32KHz, 44.1KHz and 48KHz(According to input)    Main System
Main Processor: Broadcom chipset
Memory    Flash-ROM: 256MByte
SDRAM: 512MByte (DDR3)

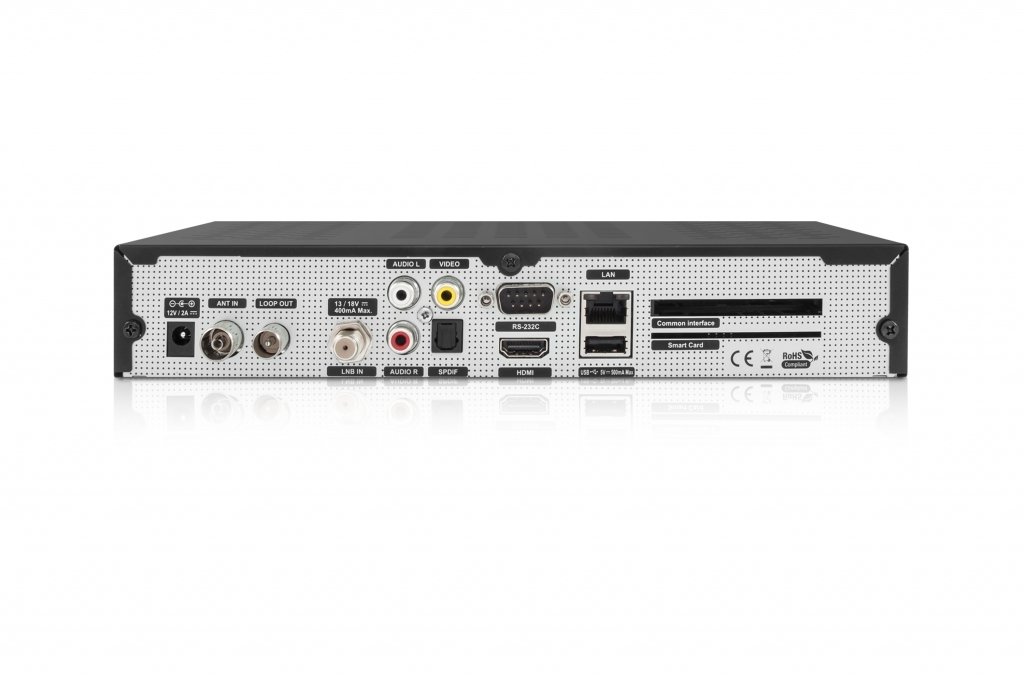

Audio / Video & Data IN/OUT
Phone Jack: CVBS Video Output, Audio L, R Output
HDMI: Video & Audio Output
Optic: AC3 Dolby Digital (SPDIF)
RS-232C: 9 pin D-SUB (Male) type, Transfer rate 115Kbps
USB: 2 USB 2.0 Host Support
Ethernet: RJ45 connector, 10/100 Base

Front / Rear Panel
Slot: 1 Common Interface & 1 Smart Card slot
Display: 7-Segment - 4 Digits
Buttons: 1 Buttons(Standby)
Indicatiors: 1LED (Standby, Power & Remote : Dual Color)

Power Supply
Input Voltage: AC 100 ~ 250V, 50/60Hz
Type: DC ADAPTOR (12V, 2A)
Power Consumption: Max. 24W
Standby Power: Max. 0.5W
Protection: Separate Internal Fuse & Lighting protection

Physical Specification
Size (W x H x D): 260mm X 35mm X 145mm
Weight (Net): 0.6Kg
Operating Temp.: 0°C ~ +45°C
Storage Temp.: 10°C ~ +70°C
