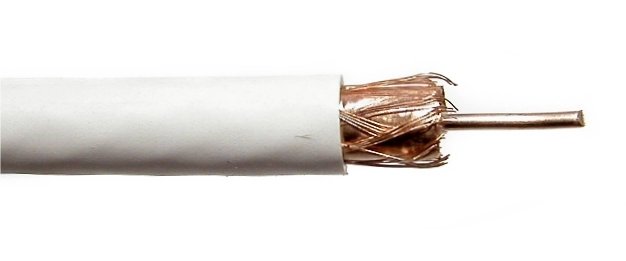

COAX cables Cavel KF 114 (100m)

Cavel KF 114 (100m)

Brand: DVBMarket

Choose packing size : CHOOSE BIGGER PACK SIZE TO GET THE LOWEST PRICE
Quantity:
roll/s
Price per unit:
Total price:
Price is excluding VAT !
€ 43,00

CONSTRUCTION CHARACTERISTICS

  • The inner conductor Avg. 1.13 mm
  • material Cu
  • dielectric material PEG
  • Avg. 4.8 mm

Shielding

  • first The surface of a laminate material Cu / PET
  • 2. braiding material Cu
  • Density braid 37%
  • avg. 5.3 mm
  • Protection foil material -
  • Avg. mm -
  • Outer sheath material PVC
  • Avg. 6.6 mm

PHYSICAL

  • copper content kg / km 17.2
  • Weight of cable kg / km 40,6
  • Min. bending radius:
  • single / repeated bendings mm 35/70
  • Max. tensile strength of 150 N

ELECTRICAL DATA
Impedance 75 ohm ± 3
Capacitance pF / m 52 ± 2
Velocity ratio 85%
Attenuation (20 ° C)
5 MHz dB / 100m 1.4
at 10 MHz dB / 100m 2.0
at 30 MHz dB / 100m 3 0
at 50 MHz dB / 100m 3.7
at 200 MHz dB / 100m 7.8
at 300 MHz dB / 100m 9.6
at 470 MHz dB / 100m 11,9
at 862 MHz dB / 100m 16,5
at 1000 MHz dB / 100m 17,8
at 1750 MHz dB / 100m 24,2
at 2150 MHz dB / 100m 27,1
at 2400 MHz dB / 100m 28,8
at 3000 MHz dB / 100m 32.6
structural return loss (SRL)
for 5 - 470 MHz dB> 30
to 470 to 1000 MHz dB> 28
for the 1000 to 2000 MHz dB> 26
for the 2000-3000 MHz dB> 22
shield (SA) class B
for 5 to 30 MHz (Tl) m? / m <15
for 30-1000 MHz dB> 75
for the 1000 to 2000 MHz dB> 85
for the 2000-3000 MHz dB> 75
DC resistance: indoor / outdoor Ohm / km 18/22
resistance Ohm / km 40
Insulation voltage 3 kV sheath
Max. current 8 A
specification according to EN50117 2-4
