CA modules Smit Viaccess PRO 10

Smit Viaccess PRO 10

Brand: Smit

Choose packing size : CHOOSE BIGGER PACK SIZE TO GET THE LOWEST PRICE
Quantity:
Unit/s
Price per unit:
Total price:
Price is excluding VAT !
€ 239,00

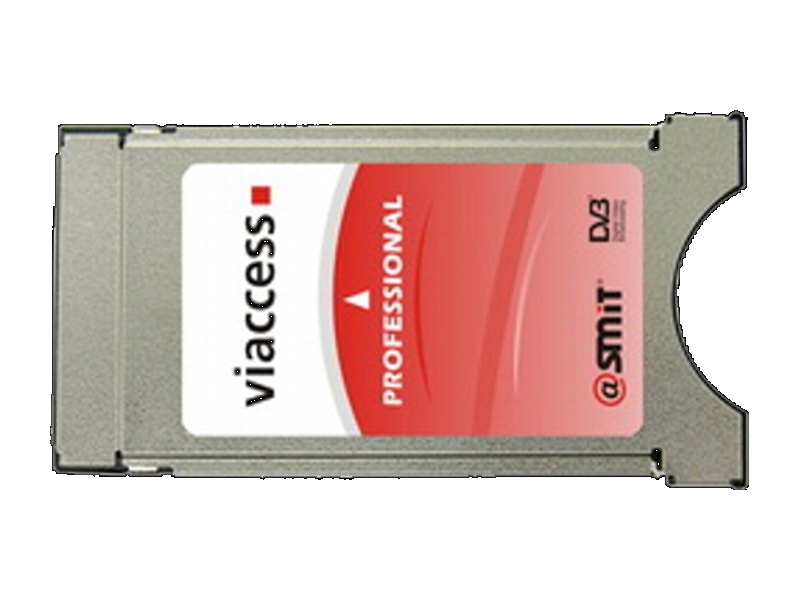

PROFESSIONAL Viaccess 10 CHannels CA MODULE

PRODUCT DESCRIPTION:

  • DIMENSIONS: PCMCIA TYPE II
  • INTERFACE PROTOCOLS OF THE HOST: IN FULL COMPLIANCE WITH DVB-CI PROFILE 1 PROTOCOL;
  • EXTERNAL INTERFACE OF IC CARD: BUILD-IN SMARTCARD READER, IN COMPLIANCE WITH ISO7816 PROTOCOL;
  • OPERATING SYSTEM: EMBEDDED LINUX SYSTEM WITH PROPRIETARY INTELLECTUAL PROPERTY RIGHTS;
  • INTERNAL DESCRAMBLER: INTEGRATED UNIVERSAL DVB DESCRAMBLER;
  • MPEG DEMUX: MULTI-CHANNEL SECTION AND PID FILTER CONFIGURABLE THROUGH SOFTWARE;
  • ENCLOSURE STRUCTURE: LATEST COMPACT STRUCTURE AND DESIGN FOR ASSEMBLY;
  • DESCRAMBLE UP TO 6 TV CHANNELS USING ONE MODULE;

SMIT PROFESSIONAL CAM SPECIFICATION

  • DOCUMENT NUMBER: VERSION: 1.0 DATE: 2011-8-8 PAGE: 1/2
  • SMIT 1660 PROFESSIONAL VIACCESS CAM SPECIFICATION

PRODUCT DESCRIPTION:

  • THE CAM CAN BE USED ON IRDS, WHICH HAS DVB-CI INTERFACE
  • METICULOUSLY TESTED WITH IRDS MODELS FROM EUROPE, THE MIDDLE EAST, AUSTRALIA, ASIA
  • THE CAM SUPPORTS VIACCESS CAS ENHANCED SECURE FEATURES
  • WITH AN AUTHORIZED VIACCESS SMART CARD, THE CAM GIVES ACCESS TO DVB ENCRYPTED PROGRAM
  • ADVANCED LANGUAGE DEVELOPMENT ENVIRONMENT
  • SUPPORTING SUBSEQUENT DEVELOPMENT OF VALUE-ADDED SERVICES

CHIPSET & TS BANDWIDTH:

  • ASIC CHIP WITH PROPRIETARY INTELLECTUAL PROPERTY RIGHT
  • BASED ON THE EMBEDDED 32-BIT CPU (ARM7TDMI)
  • ADOPTING ADVANCED 0.18-MICRON TECHNOLOGY
  • FLASH SIZE: 4M BYTES
  • RAM SIZE: 384K BYTES
  • TS PROCESS BANDWIDTH: UP TO 96MBPS
  • LIMITED THERMAL AGING TEST IS OVER 24 HOURS

PHYSICAL & ELECTRICAL CHARACTERISTICS:

DIMENSIONS: TYPE II PCMCIA CARD (100MM X 58MM X 4MM)

  • CONNECTOR: 68-PIN PCMCIA SLOT
  • OPERATION VOLTAGE: 4.5V ~ 5.5V
  • OPERATION CURRENT: <150MA
  • LOW POWER CONSUMPTION: < 600MW

STANDARD:

PLUG AND PLAY

  • COMPATIBLE WITH DVB-CI STANDARD (EN50221)
  • COMPATIBLE WITH ETR289
  • COMPATIBLE WITH ISO7816 T=0 PROTOCOL, CLASS A
  • COMPATIBLE WITH MPEG-2/MPEG-4
  • COMPATIBLE WITH THE ROHS DIRECTIVE 2002/95/EC AND ITS SUBSEQUENT AMENDMENTS

DESCRAMBLING & FILTERING:

  • SUPPORTING COMMON DESCRAMBLING ALGORITHM OF EUROPE
  • MULTI SERVICES DESCRAMBLING (OPTIONAL), UP TO 10 SERVICES DESCRAMBLING
  • HARDWARE BASED SECTION FILTERS
  • UP TO 64 CONFIGURABLE PID FILTERS FOR FILTERING PACKET OR SECTION DATA

SOFTWARE UPGRADE:

  • SUPPORT OTA SOFTWARE UPGRADE
