Schwaiger EKV 1525 011
Brand: Schwaiger
Rating : Not Rated till now ! - Rate the product now or check reviews from customers
Plug version (if using)
EU
US/CA
UK
Choose packing size :
CHOOSE BIGGER PACK SIZE TO GET THE LOWEST PRICE
| Price per unit: | |
|---|---|
| Total price: Price is excluding VAT ! |
€ 37,00 |
| Check Shipping price |
Set up Watch Dog on this item here.
Interested in this product ?

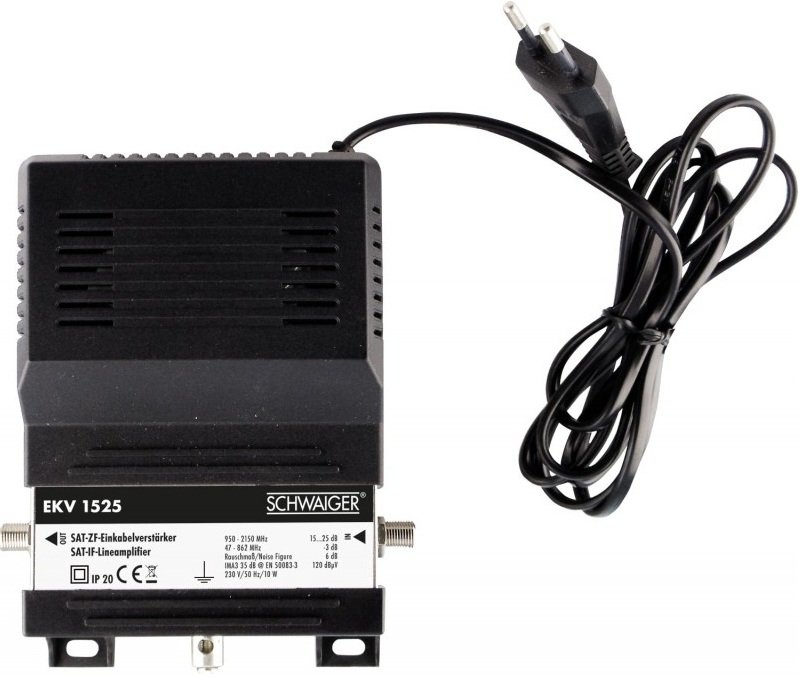

EKV 1525 011
SAT IF Satellite amplifier (25 db)

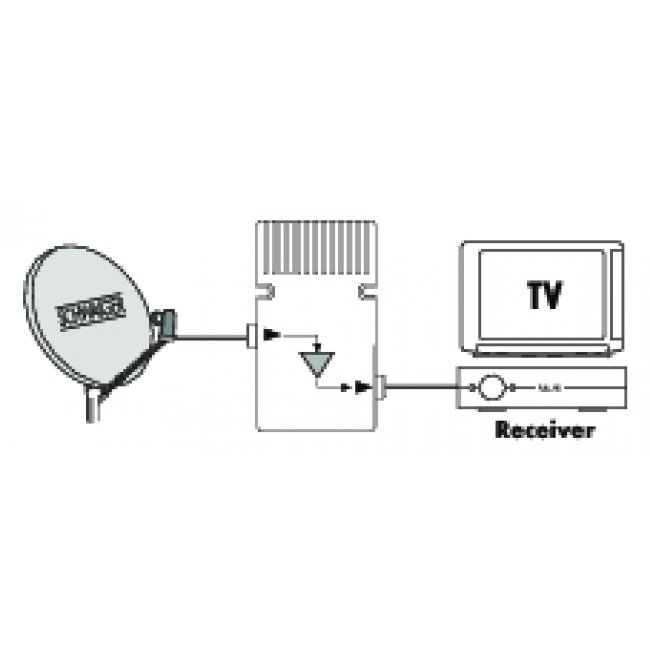

This SCHWAIGER® Einkabel amplifier is designed for use in satellite reception area - particularly in connection with the SCHWAIGER® headend - designed.
- Broadband Amplifiers for satellite reception
- Power supply via integrated power supply
- Pre-equalizer frequency response
- Particularly suitable for use with the SCHWAIGER® headend
TECHNICAL SPECIFICATIONS
| Power supply | 90-364 V AC, 47 - 63 Hz, max. 200 mA |
| Noise figure | 8 dB |
| Connections (input) | 1 x F socket |
| Connections (output) | 1 x F socket |
| Gain (typical) | 40 - 862 MHz -3dB 950 MHz 15 dB 2150 MHz 25 dB |
| Frequency range | 40 - 862 MHz (terrestrial) 950 - 2150 MHz (SAT) |
| Dimension |
(height) 160 mm (width) 115 mm (depth) 60 mm |
| Output level | 120 dbµV (dB microvolts) |
| Power consumption max. | 4 W |
| SKU | EKV 1525 011 |
