Others amplifiers Schwaiger BN 2315 531

Schwaiger BN 2315 531

Brand: Schwaiger

Choose packing size : CHOOSE BIGGER PACK SIZE TO GET THE LOWEST PRICE
Quantity:
unit/s
Price per unit:
Total price:
Price is excluding VAT !
€ 25,50

BN 2315 531

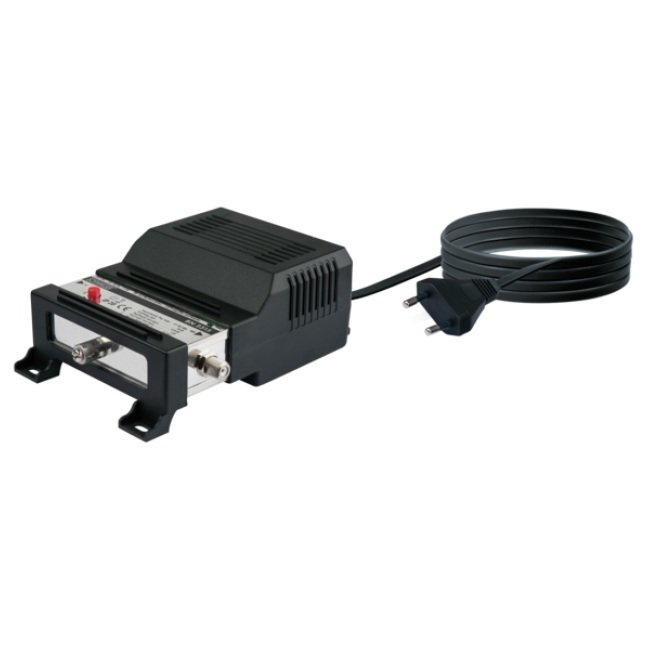

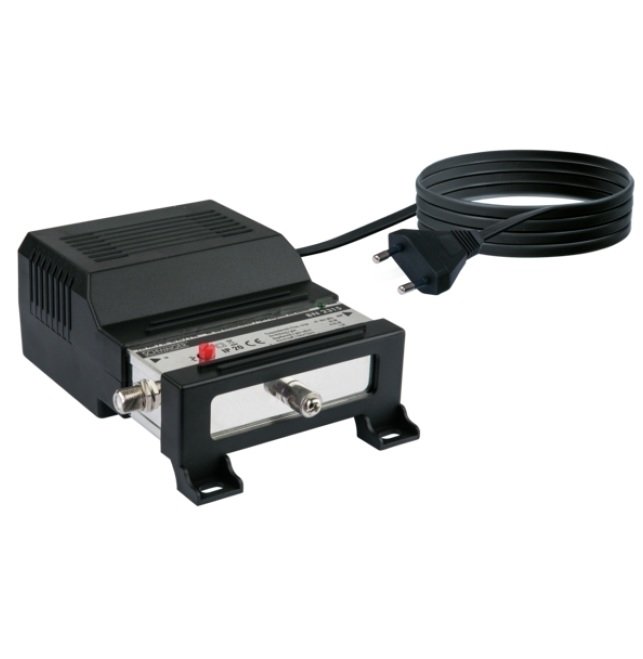

Broadband and Booster Amplifier (30 dB)

This SCHWAIGER® broadband cable and repeater amplifier comes with medium distribution systems used. It is used in a broadband network at the house transfer point or as post amplifier in CATV. adjust it when the override (picture interference) due to strong signal at the interconnection point with the level regulator as needed.

  • Use as a post amplifier in CATV possible
  • Built level control

TECHNICAL SPECIFICATIONS

Power consumption 5 VA in operation
Dimension

(height) 160 mm

(width) 100 mm

(depth) 60 mm

Gain (typical) 30 dB
Frequency range 47 - 862 MHz
Output level (max.)  112 dbµV (db microvolts) (IM 3 EN50083-3)
Power supply

230 V
50 - 60 Hz

Connections (output) 1 x F connector (75 Ohm)
Connections (input) 1 x F connector (75 Ohm)
Level control  20 dB
Noise figure 5 dB
SKU BN 2315 531
